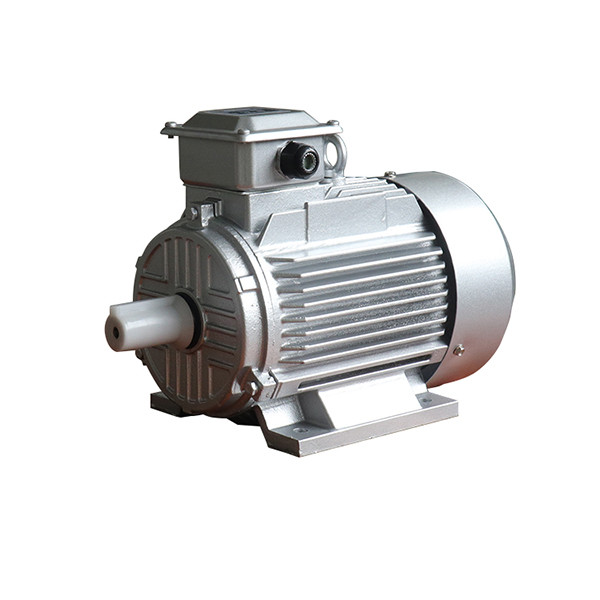

Y2 Cast Iron IP55 0.75kw 1Hp Three Phase Asynchronous Motor

  • Y2 Cast Iron IP55 0.75kw 1Hp Three Phase Asynchronous Motor
  • Y2 Cast Iron IP55 0.75kw 1Hp Three Phase Asynchronous Motor
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number Y2-802-4
Minimum Order Quantity 1pc
Price $32.2~$40.5
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 0.75kw/1Hp Pole 4
Phase Three Phase Housing Cast Iron
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
High Light

1Hp Three Phase Asynchronous Motor

,

Three Phase Asynchronous Motor 0.75kw

,

Cast Iron Asynchronous Motor IP55
Leave a Message
Product Description

3 Phase Induction Motor

Y2 series three-phase asynchronous motors developed with new techniques are renewal and upgrading products of series.Y2 series motors are defined as totally enclosed, fan-cooled, squirrel cage type and noted for their novel design, beautiful model, compact structured, low noise, high efficiency, large torque, excellent starting performance, easy serving, etc. Moreover, according to international practice, the motors are adopted with F class insulation and designed with assessing method for insulation system. Therefore, it greatly has reached an advanced international level of the same products at the initial days of the 90S.

Y2 series motors can be widely used as driving equipment for various types of machinery, such as machine tools, blowers, pumps, transporters, agricultural and food processing. Pedestal installation size, center height, and other motor indexes are completely measured by the Y series three-phase asynchronous motor.

Operating Conditions:

Ambient temperature:-5℃ < θ <40℃

Altitude:not exceeding 1000m

Rated voltage:380V or any voltage between220-760v

Rated frequency:50Hz,60Hz

Protection ciass:IP44, lP54 ,IP55

Insulation class: In-Class F, the temperature rise of the stator winding is examined at 80k

Cooling method:IC 411Duty:S1 (continuous)

Connectlon:Star-connectlon for up to 3kw,delta-connection for 4kW and above.






Y2 Cast Iron IP55 0.75kw 1Hp Three Phase Asynchronous Motor 0



Ist/In Power (A) Power Eff. (%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Speed 1500 r/min (4 Poles)
Y2-631-4 0.12 0.44 0.72 57 1400 2.2 4.5 2.2
Y2-632-4 0.18 0.62 0.73 60 1400 2.2 4.5 2.2
Y2-711-4 0.25 0.79 0.74 65 1400 2.2 5.5 2.2
Y2-712-4 0.37 1.12 0.75 67 1400 2.2 5.5 2.2
Y2-801-4 0.55 1.6 0.75 71 1400 2.2 5.5 2.2
Y2-802-4 0.75 2 0.77 73 1400 2.2 6 2.2
Y2-90S-4 1.1 2.9 0.77 750 1400 2.2 6 2.2
Y2-90L-4 1.5 3.7 0.79 78 1400 2.2 6 2.2
Y2-100L1-4 2.2 5.1 0.81 80 1420 2.2 7 2.2
Y2-100L2-4 3 6.8 0.82 82 1420 2.2 7 2.2
Y2-112M-4 4 8.8 0.82 84 1440 2.2 7 2.2
Y2-132S-4 5.5 11.8 0.83 85 1440 2.2 7 2.2
Y2-132M-4 7.5 15.5 0.84 87 1440 2 7 2.2
Y2-160M-4 11 22.3 0.85 88 1460 2 7 2.2
Y2-160L-4 15 30 0.85 89 1460 2 7 2.2
Y2-180M-4 18.5 36.4 0.85 90.5 1470 2.2 7.5 2.2
Y2-180L-4 22 43.1 0.85 91 1470 2.2 7.5 2.2
Y2-200L-4 30 58.4 0.86 92 1470 2.2 7.5 2.2
Y2-225S-4 37 69.9 0.87 92.5 1480 2.2 7.5 2.2
Y2-225M-4 45 84.7 0.87 92.8 1480 2.2 7.5 2.2
Y2-250M-4 55 103 0.89 93 1480 2.2 7 2.2
Y2-280S-4 75 140 0.86 93.8 1480 2.2 7 2.2
Y2-280M-4 90 167 0.86 94.2 1490 2.2 7 2.2
Y2-315S-4 110 201 0.87 94.5 1490 2.1 6.9 2.2
Y2-315M-4 132 240 0.87 94.8 1490 2.1 6.9 2.2
Y2-315L1-4 160 287 0.88 94.9 1490 2.1 6.9 2.2
Y2-315L2-4 200 359 0.88 95 1490 2.3 6.9 2.2
Y2-355M-4 250 443 0.88 95.3 1485 2.3 6.8 2.2
Y2-355L-4 315 556 0.89 95.6 1485 2.2 6.9 2.2



Reviews from the client:

Y2 Cast Iron IP55 0.75kw 1Hp Three Phase Asynchronous Motor 1



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
