Zin Alloy 1.8Bar 12PSI 3/8" 1/4" Water Pump Pressure Switch

  • Zin Alloy 1.8Bar 12PSI 3/8" 1/4" Water Pump Pressure Switch
  • Zin Alloy 1.8Bar 12PSI 3/8" 1/4" Water Pump Pressure Switch
  • Zin Alloy 1.8Bar 12PSI 3/8" 1/4" Water Pump Pressure Switch
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number ZPS-2
Minimum Order Quantity 100pcs
Price USD$2
Packaging Details Packed in cartons
Delivery Time 7 working days after received your payment
Payment Terms T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 230V; 110V Frequency 50/60HZ
Rated Current 5A;10A Min.cut-in 12PSI
Min.cut-out 45PSI Pressure Range 1.1-1.8Bar
Bases Zin Alloy Screw Type Female/Male
Size 1/4"; 3/8"
High Light

12PSI Water Pump Pressure Switch

,

1/4" Water Pump Pressure Switch

,

1.8Bar Zin Alloy Pressure Switch
Leave a Message
Product Description

ZPS-2 Pressure Switch

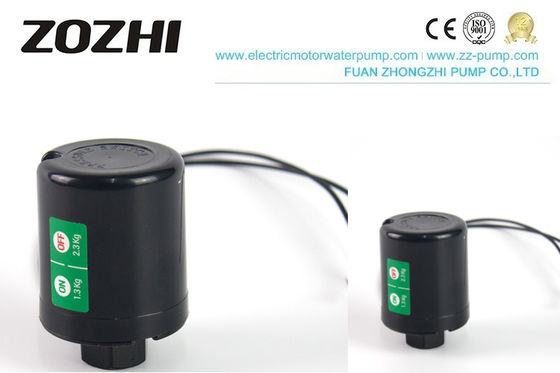

Zin Alloy 1.8Bar 12PSI 3/8" 1/4" Water Pump Pressure Switch 0

ZPS-2 Pressure Switch

Rated voltage: 220V Rated current: 16A
Thread: 2′ male (1/4) Φ 12.5MM
3′ female (3/8)Φ 15MM
2′ female (1/4)Φ 12.5MM
Pressure & Model
1.0-1.8KG & 125W
1.2-2.2KG & 250W 300W 371W
1.8-2.5KG & 550W
2.2-3.0KG & 750W
Generally, as long as the model and pressure correspond.



Low pressure 1.1kg/cm², high point pressure 1.8kg/cm²

The initial state of the pressure switch is "on," and only to reach a high point (1.8kg/cm² or more), pressure will be disconnected.
When the pressure in the line is released to the switch, low pressure (1.1kg / cm² below) will be reconnected; the pressure reaches a high point (1.8 kg/cm ² above). Again, pressure will be a disconnect, so repeat the cycle of work.



Model
ZPS-2
Dimension
52*26.5*19CM

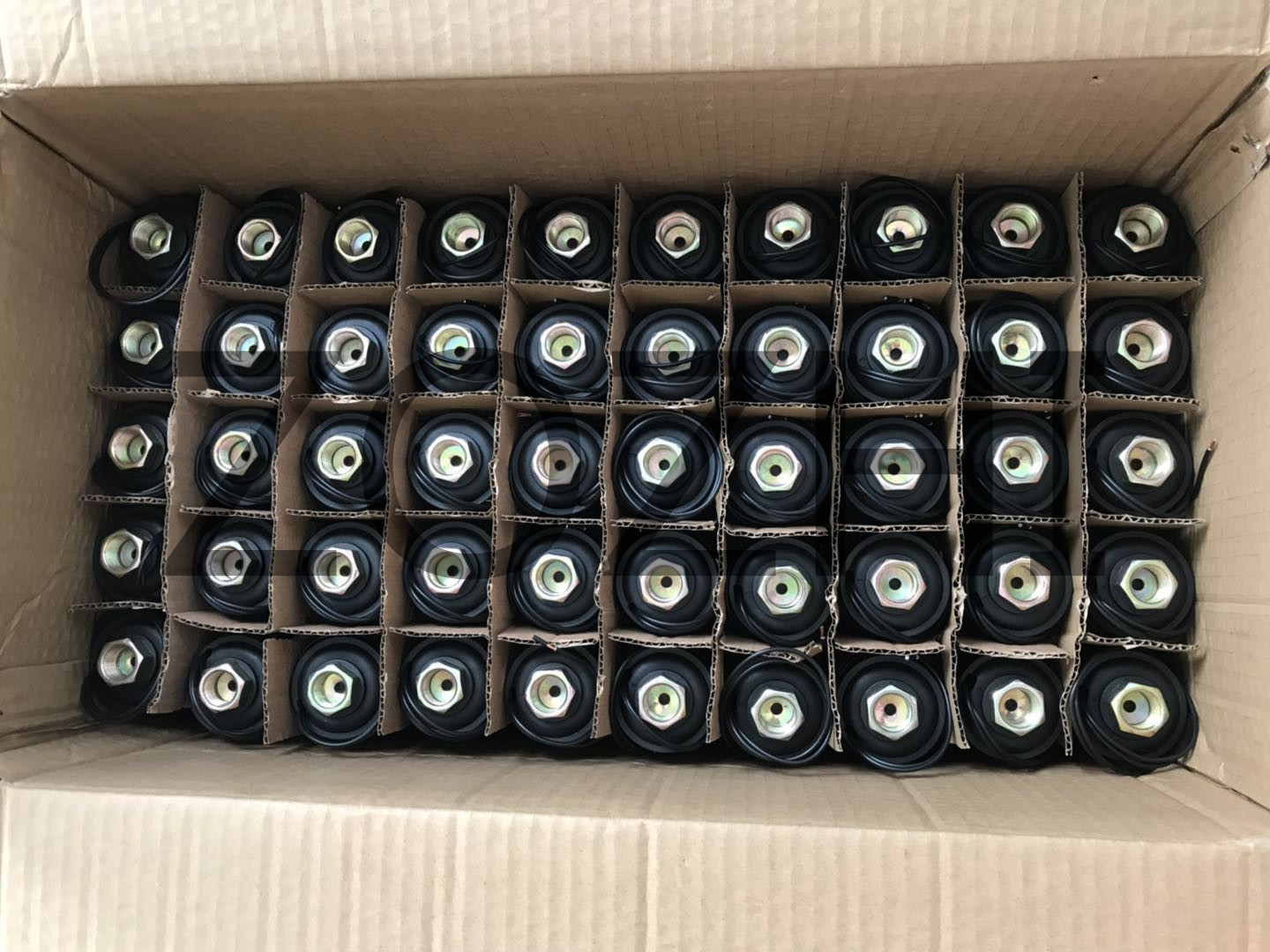

Quantity
100PCS/CTN
N.W(kg)
17 KGS
G.W(kg)
19 KGS
Model
Pressure Range
Screw Type
Base Material
ZPS-2A-0.8
0.8-1.5kg
Female 3/8"
Plastic
ZPS-2B-0.8
0.8-1.5kg
Female 3/8"
Zinc alloy
ZPS-2C-0.8
0.8-1.5kg
Male 1/4"
Plastic
ZPS-2A-1.1
1.1-1.8kg
Female 3/8"
Zinc alloy
ZPS-2B-1.1
1.1-1.8kg
Female 3/8"
Plastic
ZPS-2C-1.1
1.1-1.8kg
Male 1/4"
Zinc alloy
ZPS-2A-1.3
1.3-2.3kg
Female 3/8"
Plastic
ZPS-2B-1.3
1.3-2.3kg
Female 3/8"
Zinc alloy
ZPS-2C-1.3
1.3-2.3kg
Male 1/4"
Plastic
ZPS-2A-2.0
2.0-3.0kg
Female 3/8"
Zinc alloy
ZPS-2B-2.0
2.0-3.0kg
Female 3/8"
Plastic
ZPS-2C-2.0
2.0-3.0kg
Male 1/4"
Zinc alloy
ZPS-2A-2.5
2.5-3.5kg
Female 3/8"
Plastic
ZPS-2B-2.5
2.5-3.5kg
Female 3/8"
Zinc alloy
ZPS-2C-2.5
2.5-3.5kg
Male 1/4"
Plastic
ZPS-2A-3.0
3.0-4.0kg
Female 3/8"
Zinc alloy
ZPS-2B-3.0
3.0-4.0kg
Female 3/8"
Plastic
ZPS-2C-3.0
3.0-4.0kg
Male 1/4"
Zinc alloy

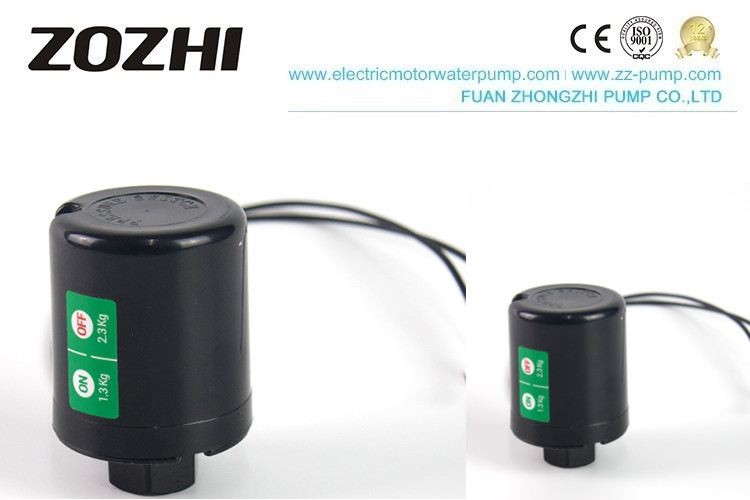

Zin Alloy 1.8Bar 12PSI 3/8" 1/4" Water Pump Pressure Switch 1

Zin Alloy 1.8Bar 12PSI 3/8" 1/4" Water Pump Pressure Switch 2

Zin Alloy 1.8Bar 12PSI 3/8" 1/4" Water Pump Pressure Switch 3

Zin Alloy 1.8Bar 12PSI 3/8" 1/4" Water Pump Pressure Switch 4

Zin Alloy 1.8Bar 12PSI 3/8" 1/4" Water Pump Pressure Switch 5

Zin Alloy 1.8Bar 12PSI 3/8" 1/4" Water Pump Pressure Switch 6
