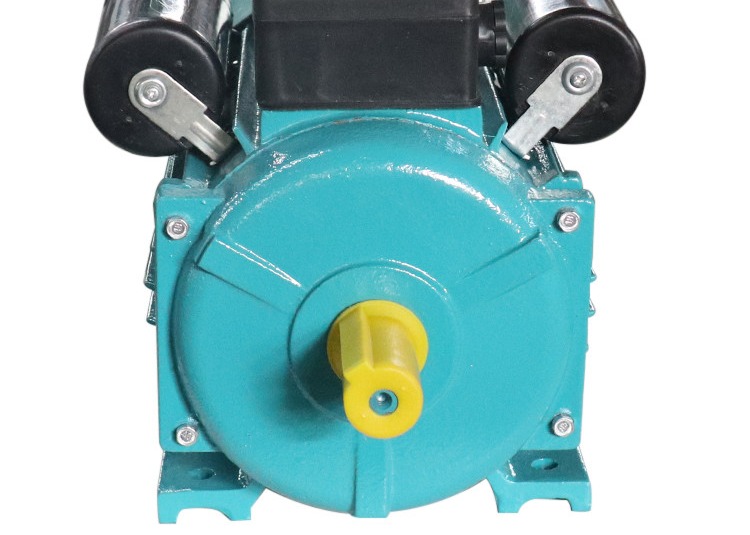

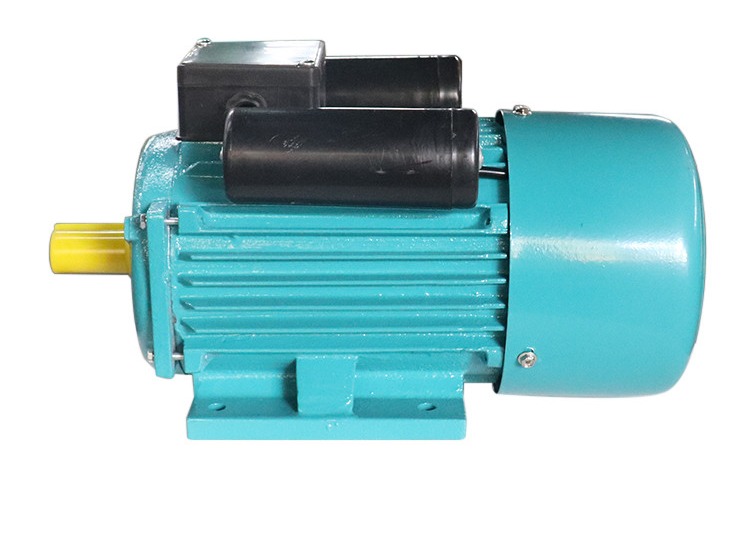

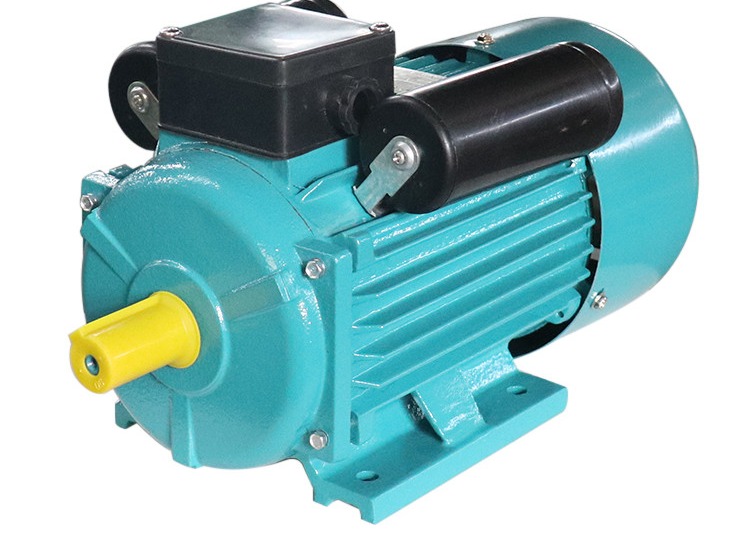

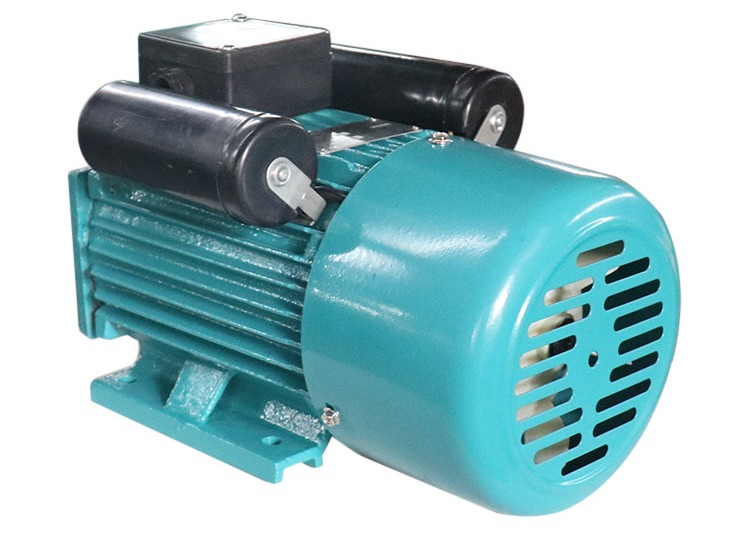

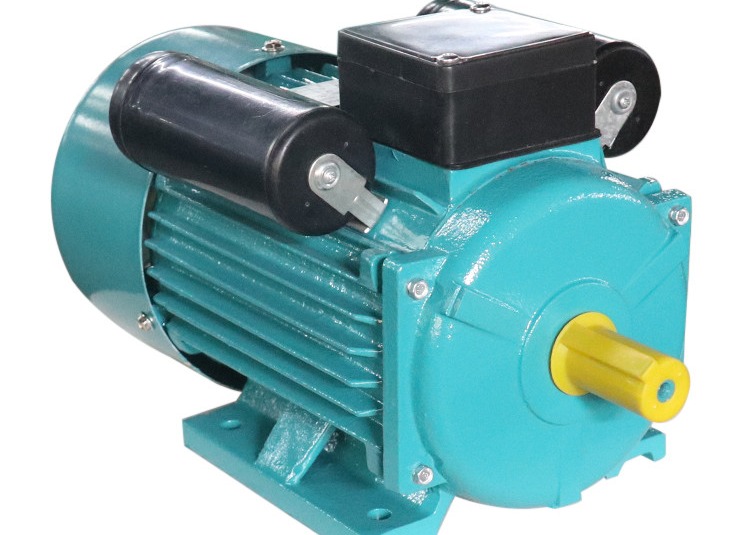

IP54 3.7KW 5Hp Single Phase Induction Motor YC112M2-2

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YC112M2-2
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C, Western Union, E-checking
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 5HP Pole 2
Motor Bearing C&U (SKF For Choice) Efficiency IE1,IE2,IE3
Motor Housing Cast Iron Protection Class IP54/IP55
Insulation Class F Class Color Customizable
Product Name 3 Phase Induction Motor
High Light

5Hp Single Phase Induction Motor

,

3.7KW Single Phase Induction Motor

,

IP54 Asynchronous Induction Motor

Leave a Message
Product Description

Description



YC series heavy-duty single-phase motors are suitable for powering small type machine tools and water pumps, especially for family workshops where only single-phase current supply is available.

Motors of the series are integrated with up-to-date design, built with the best quality materials. They possess the features of a pleasant-looking appearance, outstanding performance, easy maintenance, and reliable running.

The designations, signs, and nominal values conform to me. E. C. Standards.

Y.C. series protected motors are of IP44 enclosed fan cooling type. They all concentrate on the advantages of high starting torque, smooth running, low-temperature rise, low noise, and greater overload performance.





3 Phase Induction Motor Working Condition

Ambient temperature: -15℃≤~≤40℃
Altitude: not exceed 1000m
Rated voltage: ±5%







Technical data

Model Power (A) P.F. Eff.(%) Speed Tstart/Tn Ist/In Tmax/Tn
kW HP (r/min)
YC711-2 0.18 0.25 1.9 0.7 63 2800 3 6.5 2
YC712-2 0.25 0.33 2.4 0.72 65 2800 3 6.5 2
YC80A-2 0.37 0.50 3.5 0.74 66 2840 3 6.5 2
YC80B-2 0.55 0.75 5.04 0.74 67 2850 3 6.5 2
YC80C-2 0.75 1 6.68 0.75 68 2850 3 6.5 2
YC90S-2 1.1 1.5 8.93 0.8 70 2850 2.8 7 2
YC90L-2 1.5 2 11.4 0.82 73 2870 2.8 7 2
YC100L-2 2.2 3 16.5 0.82 74 2900 2.5 7 2
YC112M1-2 3 4 21.4 0.84 76 2900 2.2 7 2
YC112M2-2 3.7 5 24.8 0.86 79 2900 2.2 7 2
YC711-4 0.12 0.17 1.9 0.58 48 1400 3 6 2
YC712-4 0.18 0.25 2.7 0.6 50 1400 3 6 2
YC80A-4 0.25 0.33 3.52 0.62 52 1400 3 6 2
YC80B-4 0.37 0.50 4.69 0.64 56 1400 3 6 2
YC80C-4 0.55 0.75 6 0.65 60 1400 3 6 2
YC90S-4 0.75 1 7.5 0.72 63 1400 2.8 6.5 2
YC90L-4 1.1 1.5 10.4 0.72 67 1420 2.8 6.5 2
YC100L-4 1.5 2 13 0.73 72 1440 2.8 6.5 2
YC112M-4 2.2 3 18.5 0.74 73 1450 2.5 6.5 2
YC132S1-4 3 4 22.4 0.8 76 1450 2.2 6.5 2
YC132S2-4 3.7 5 26 0.82 79 1450 2.2 6.5 2

IP54 3.7KW 5Hp Single Phase Induction Motor YC112M2-2 0




































3 Product Induction Motor Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
