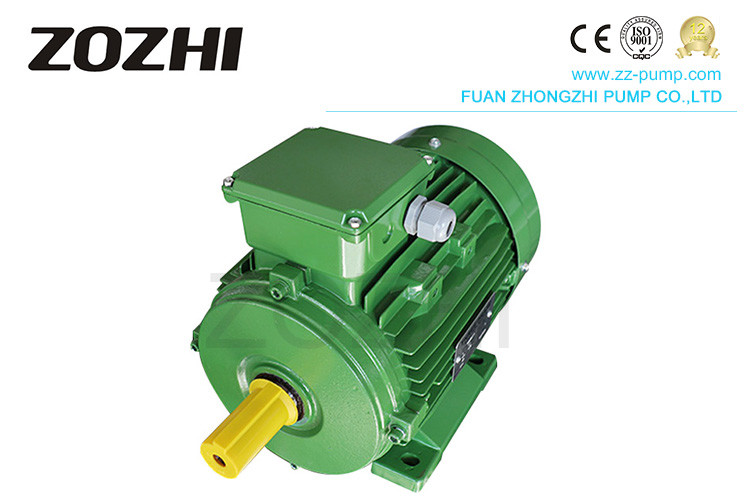

60Hz/50Hz 1.1kw 1.5Hp Aluminum IP54 Three Phase Ac Motor

  • 60Hz/50Hz 1.1kw 1.5Hp Aluminum IP54 Three Phase Ac Motor
  • 60Hz/50Hz 1.1kw 1.5Hp Aluminum IP54 Three Phase Ac Motor
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS802-2
Minimum Order Quantity 1pc
Price $35.3~$45.5
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 1.1kw/1.5Hp Pole 2
Phase Three Phase Housing Aluminum
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
High Light

IP54 Three Phase Ac Motor

,

1.5Hp Three Phase Ac Motor

,

1.1kw 3 Phase Asynchronous Motors
Leave a Message
Product Description

3 Phase Induction Motor

aluminum housing three-phase ac electric motor 1.1kw

The MS series aluminum-shell electric motor is a TEFC and squirrel-cage-shaped three-phase AC induction motor. The shell of the electric motor is die-casted by aluminum alloy. Due to its lower pollution is considered green production in the electric motor industry and is widely accepted in many developed countries.



The electric motor has many advantages, such as high efficiency, energy-saving, high starting moment,

excellent performance, lightweight, attractive appearance, high protection class, running steadily, removable feet, variable fixing methods, etc. it is widely used in usual places and precision machinery without special requirements and is universally applied in reducers, blowers, water pumps, compressors, pipelines, packing industry, food processing machinery, and woodworking process



OPERATING LIMITS:



Ambient temperature:-15℃-0-40℃

Protection:IP44/IP54/IP55

Insulation Class: B/F/H

Rated voltage:380V or any voltage between 220-760V

Frequency:50HZ/60HZ

Duty: S1(continuous)

Above sea level: not exceed 1000m

Cooling method: ICO141

Connection:star-connection for up to 4HP,





MS Series Three Phase Induction Motor
Model MS802-2
Rated Power 1.1kw/1.5Hp
Service Factor 0.77
Supply Voltage 380V
Rate Frequency 60Hz/50Hz
Structure IP54, IP55
Insulation Grade B/F
Bearing NSK OR C&U
Efficiency IE1
Color Customizable
Ambient temperature -15. C ~40 . C
Weight 9.8kgs
Measure 33x19x21.5cm





60Hz/50Hz 1.1kw 1.5Hp Aluminum IP54 Three Phase Ac Motor 0



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5




Reviews from the client:

60Hz/50Hz 1.1kw 1.5Hp Aluminum IP54 Three Phase Ac Motor 1



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
