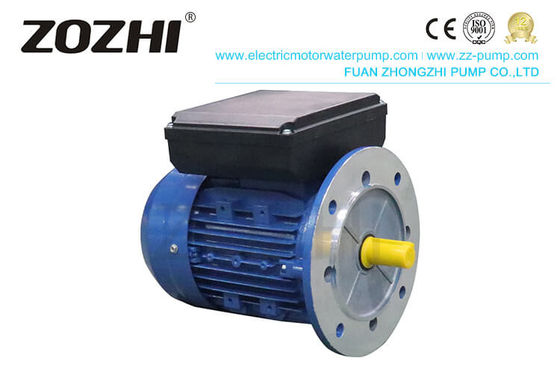

ML100L1-4 IP54 2.2kW Single Phase Asynchronous Motor

Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number ML100L1-4
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ML100L1-4 Power 2.2kw
Voltage 220V Pole 4 Pole
Protection Class IP54 Insulation Class H
Duty S1 Product Name Single Phase Induction Motor
High Light

ML100L1-4

,

2.2kW Single Phase Asynchronous Motor

,

IP54 Single Phase Asynchronous Motor

Leave a Message
Product Description

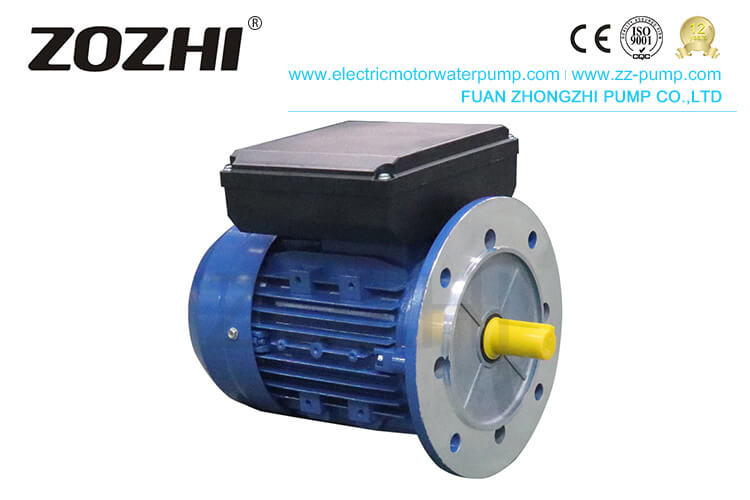

ML100L1-4 IP54 2.2kW Single Phase Asynchronous Motor

 Single Phase Induction Motor


Description

2.2kW ML Series Single-Phase Asynchronous Aluminium Housing Motor



ML series motors concentrate on the advantages of high starting torque and excellent overload performance.  As a result, they are suitable for powering equipment such as water pumps, air compressors, fans, medical devices, and other small machines.

Features



With starting and running dual capacitors
Frame Size: H71-H100
Rated Power Range: 2 pole 0.37kW~3kW,4 pole 0.25kW~7.5kW
House Material: Aluminium (plastic terminal box)
Standard Color: Lake blue
Rated Voltage: 220V±5%, 50Hz
60Hz is available on request
Protection Class: IP54/IP55
Insulation Class: Class B/F
Cooling Method: IC 411
Duty: S1
Ambient Temperature: -15℃≤θ≤40℃
Altitude: 1000 meters

Data


Model Power
(KW)

(V)

(A)
Speed
(r/min)
Eff.
(%)
P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110



single phase dual capacitor electric motor





Reviews from the client:

ML100L1-4 IP54 2.2kW Single Phase Asynchronous Motor 1

Shipping:
after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A







ML100L1-4 IP54 2.2kW Single Phase Asynchronous Motor 3
centrifugal water pump vortex water pump
centrifugal electric water pump


ML100L1-4 IP54 2.2kW Single Phase Asynchronous Motor 6
ML100L1-4 IP54 2.2kW Single Phase Asynchronous Motor 7



INFORMATION

Motor bearing heating analysis


(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.


(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.


(3) improper lubrication system leads to bearing heating due to insufficient lubrication.


(4) bearing heating caused by motor temperature rise or operating environment temperature.
