Aluminium Alloy 1.5kw 2hp AC Induction Motor Capacitor Running IP44

  • Aluminium Alloy 1.5kw 2hp AC Induction Motor Capacitor Running IP44
  • Aluminium Alloy 1.5kw 2hp AC Induction Motor Capacitor Running IP44
  • Aluminium Alloy 1.5kw 2hp AC Induction Motor Capacitor Running IP44
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MY90L-4
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model MY90L-4 Power 1.5kw/2hp
Voltage 220v Frequency 50hz
Phase Single Phase Induction Motor Housing Aluminum
Protection Class IP44/IP54 Insulation Class B/F
Duty S1
High Light

2hp AC Induction Motor

,

1.5kw AC Induction Motor

,

IP44 Capacitor Running Induction Motor
Leave a Message
Product Description

MY series Single Phase Aluminium Alloy Housing Capacitor Running Induction Motor

Single Phase Induction Motor

Introduction


MY series of single-phase aluminum motors are acknowledged as having a name for quality and
reliability. They are suitable for driving small-type machine tools, water pumps, etc specially for family
workshops where only single-phase current supply is available.
MC: capacitor start series.
MY: capacitor run series.
ML: dual capacitor series.
Single-phase motors incorporate superior finish motor size acc. The totally enclosed fan cooled.
Light construction, top-mounted terminal box, IP55 protection, IC411 cooling, choice of foot or flange mounting
frame size from 56-112, rated at 220V 50Hz.



Working　Condition

Ambient temperature: -15℃≤~≤40℃

Altitude: not exceed 1000m

Rated voltage: ±5%





Technical data

Model
 Output
(V)
(A)		 Speed
(r/min)		 Eff.
(%)		 P.F. Tstart/Tn Tmax/Tn Ist/In(A)
KW HP
MY631-2 0.18 0.25 220 1.48 2800 60 0.92 0.4 1.7 5
MY632-2 0.25 0.34 220 1.96 2800 63 0.92 0.4 1.7 7
MY711-2 0.37 0.5 220 2.73 2800 67 0.92 0.35 1.7 10
MY712-2 0.55 0.75 220 3.88 2800 70 0.92 0.35 1.7 15
MY801-2 0.75 1 220 5.15 2800 72 0.92 0.33 1.7 20
MY802-2 1.10 1.5 220 7.02 2800 75 0.95 0.33 1.7 30
MY90S-2 1.50 2 220 9.44 2800 76 0.95 0.30 1.7 45
MY90L-2 2.20 3 220 13.67 2800 77 0.95 0.30 1.7 65
MY631-4 0.12 0.16 220 1.10 1400 55 0.90 0.4 1.7 3.5
MY632-4 0.18 0.25 220 1.62 1400 56 0.90 0.4 1.7 5
MY711-4 0.25 0.34 220 2.02 1400 61 0.92 0.35 1.7 7
MY712-4 0.37 0.5 220 2.95 1400 62 0.92 0.35 1.7 10
MY801-4 0.55 0.75 220 4.25 1400 64 0.92 0.35 1.7 15
MY802-4 0.75 1 220 5.45 1400 68 0.92 0.32 1.7 20
MY90S-4 1.10 1.5 220 7.45 1400 71 0.95 0.32 1.7 30
MY90L-4 1.50 2 220 9.83 1400 73 0.95 0.3 1.7 45

Overall & Installation Dimensions

Frame No.
 Installation size Overall size(mm)
  IMB14 IMB5
A B C D E F G H K M N P R S T M N P R S T AB AC AD HD L
63 100 80 40 11 23 4 8.5 63 7 75 60 90 0 M5 2.5 115 95 140 0 10 3.0 130 130 115 185 230
71 112 90 45 14 30 5 11 71 7 85 70 105 0 M6 2.5 130 110 160 0 10 3.5 145 145 125 205 255
80 125 100 50 19 40 6 15.5 80 10 100 80 120 0 M6 3.0 165 130 200 0 12 3.5 160 160 135 235 295
90S 140 100 56 24 50 8 20 90 10 115 95 140 0 M8 3.0 165 130 200 0 12 3.5 180 180 145 265 335
90L 140 125 56 24 50 8 20 90 10 115 95 140 0 M8 3.0 165 130 200 0 12 3.5 180 180 145 265 360

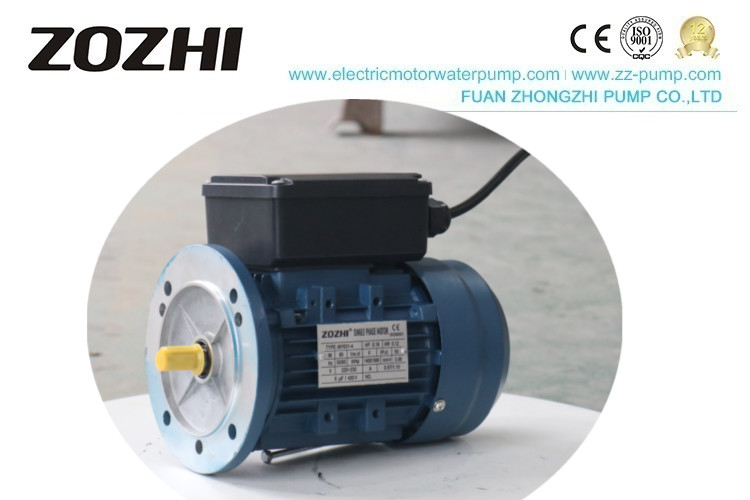

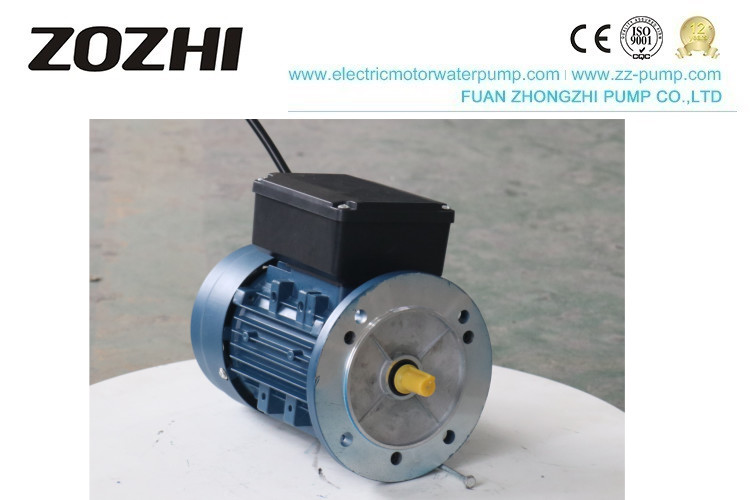

MY single phase aluminum motor

Aluminium Alloy 1.5kw 2hp AC Induction Motor Capacitor Running IP44 2

Aluminium Alloy 1.5kw 2hp AC Induction Motor Capacitor Running IP44 3



Reviews from the client:

ML series single phase dual capacitor electric motor 0.75kw 3



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A









​



ML series single phase dual capacitor electric motor 0.75kw 5

centrifugal water pump vortex water pump

Aluminium Alloy 1.5kw 2hp AC Induction Motor Capacitor Running IP44 8

Aluminium Alloy 1.5kw 2hp AC Induction Motor Capacitor Running IP44 9

Aluminium Alloy 1.5kw 2hp AC Induction Motor Capacitor Running IP44 10





ML series single phase dual capacitor electric motor 0.75kw 8

ML series single phase dual capacitor electric motor 0.75kw 9
