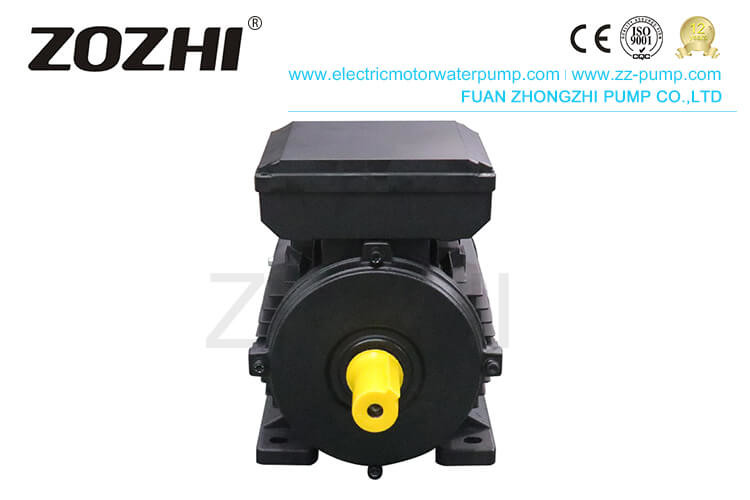

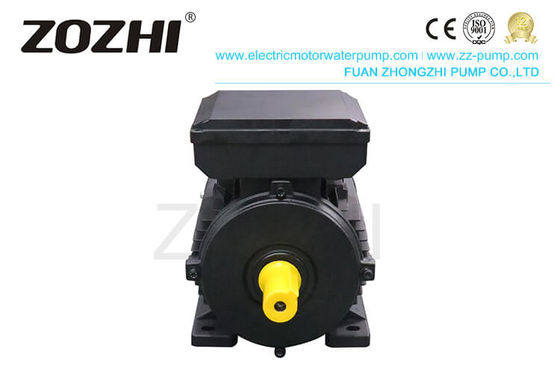

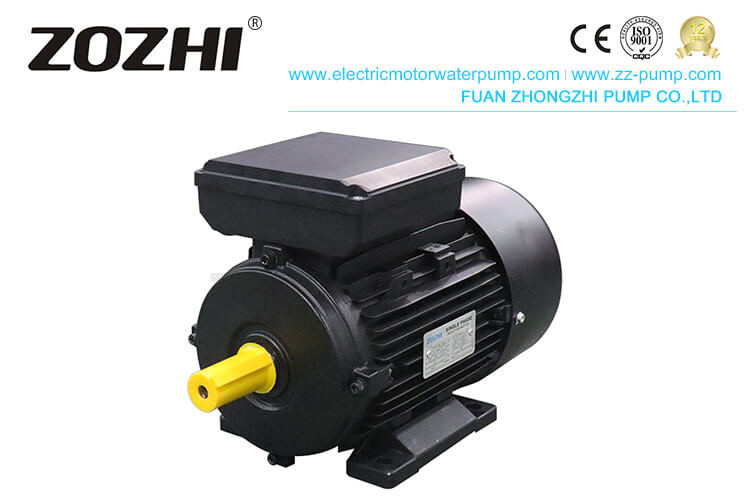

1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4

  • 1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4
  • 1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number ML801-2
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ML90S-4 Power 1.1KW
Voltage 220V Pole 2pole
Protection Class IP54 Insulation Class H
Duty S1 Product Name Single Phase Induction Motor
Highlight

1400r/Min Electric Asynchronous Motor

,

1.1KW Electric Asynchronous Motor

,

ML90S-4
Leave a Message
Product Description

Single-Phase Capacitor Start And Capacitor Running Induction Motor 1.1KW 1400RPM

 Single Phase Induction Motor


Description

ML series single-phase capacitor start and capacitor running electric motor suitable for air compressor, water pump, and other equipment requiring high torque.
This series of electric motors features its high starting performance, overload capability, power factor and efficiency, low noise, lightweight, little shape, and easy maintenance.

Protection Class: IP44/IP54/IP55　　

Cooling Type: IC0141
Insulation Class: B or F　　　　　

Operation Type: S1
Rated Volt. :115/230, 220V 　　　

Rated Frequency: 60Hz(50Hz)
Shell Material: aluminum



1.CE certificate
2.Copper wire
3.Cold-rolled silicon steel sheet




Data


Model Power
(KW)
(V)
(A)		 Speed
(r/min)		 Eff.
(%)		 P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110



1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4 0

1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4 1

1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4 2

1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4 3





Reviews from the client:

1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4 4


 Shipping:
after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4 5





​



1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4 6
1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4 7
1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4 8


1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4 9
1.1KW 1400r/Min Electric Asynchronous Motor ML90S-4 10
