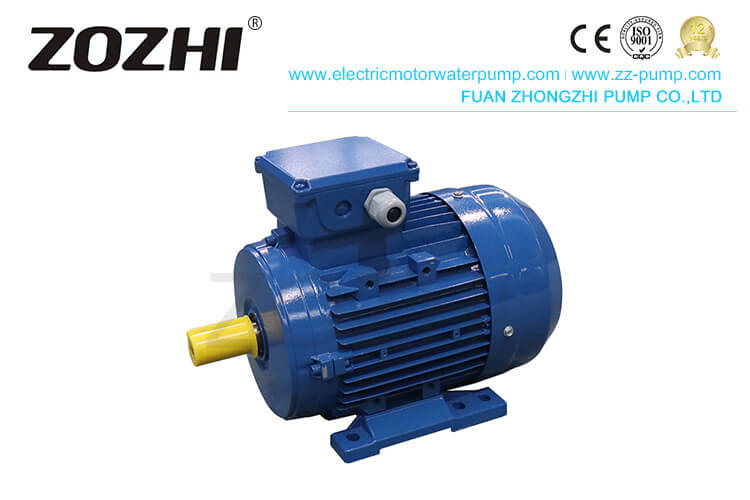

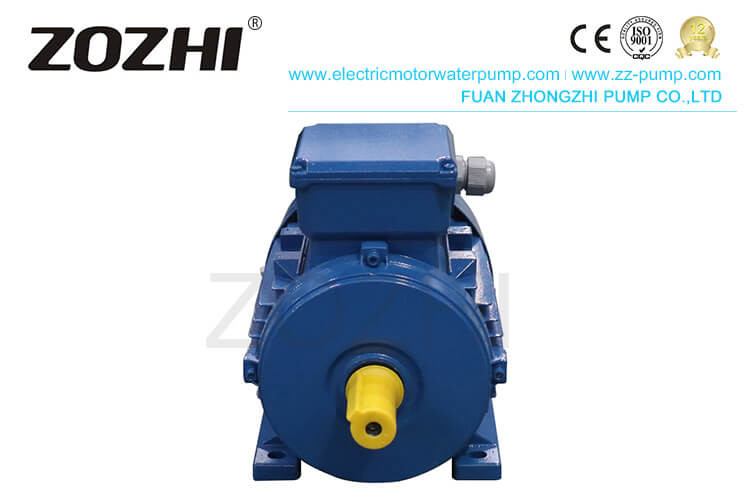

IP44 1400r/Min 0.75KW Dual Capacitor Induction Motor

Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS802-4
Minimum Order Quantity 10pcs
Price 46.5-53.8
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 0.75kw Pole 4
Phase Three Phase Housing Aluminum
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
High Light

5KW Dual Capacitor Induction Motor

,

IP44 Dual Capacitor Induction Motor

,

1400r/Min AC Induction Motor

Leave a Message
Product Description

3 Phase Induction Motor

Products Description


Ms series induction motor is designed and manufactured following state standards, with the outer standing performance of starting and operation, low noise, compact dimensions, lightweight, easy maintenance, etc.

These motors are widely used in air compressors. Pumps, fans, refrigeration, medical instruments as well as small machines, etc

Ambient temperature:-15℃ < θ < 40℃

Altitude: not exceeding 1000mRated

voltage:220VRated frequency:5OHz/6OHz

Protection class: IP44/IP54

Insulation class:ClassB,F

Cooling method: IC 411

Duty: S1 (continuous)







Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In

HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5










IP44 1400r/Min 0.75KW Dual Capacitor Induction Motor 0



IP44 1400r/Min 0.75KW Dual Capacitor Induction Motor 1



IP44 1400r/Min 0.75KW Dual Capacitor Induction Motor 2



IP44 1400r/Min 0.75KW Dual Capacitor Induction Motor 3

IP44 1400r/Min 0.75KW Dual Capacitor Induction Motor 4



Reviews from the client:

IP44 1400r/Min 0.75KW Dual Capacitor Induction Motor 5



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A











IP44 1400r/Min 0.75KW Dual Capacitor Induction Motor 7

centrifugal water pump vortex water pump

centrifugal electric water pump



IP44 1400r/Min 0.75KW Dual Capacitor Induction Motor 10

IP44 1400r/Min 0.75KW Dual Capacitor Induction Motor 11



INFORMATION



Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.

(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.
