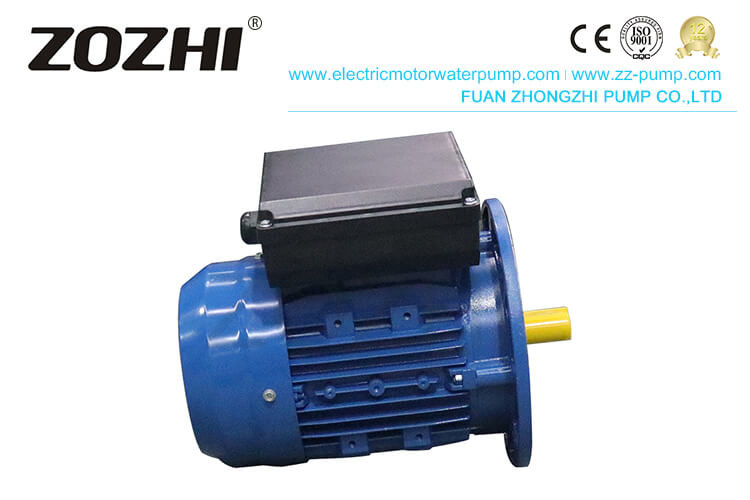

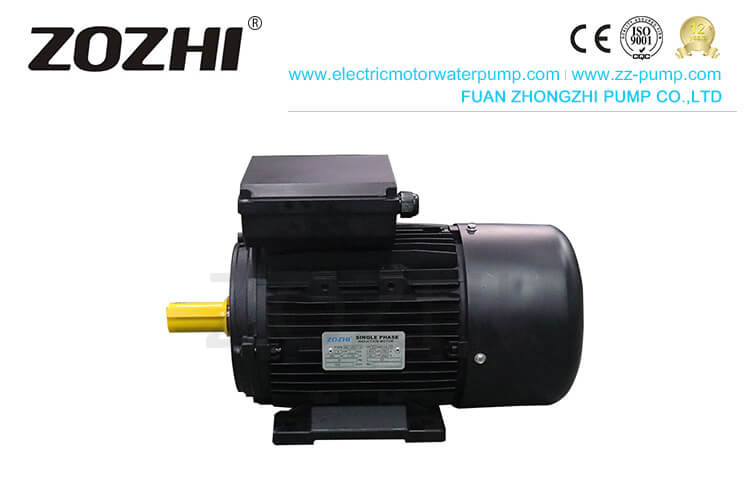

ML90S-4 1.1KW 1400r/min Electric Asynchronous Motor

  • ML90S-4 1.1KW 1400r/min Electric Asynchronous Motor
  • ML90S-4 1.1KW 1400r/min Electric Asynchronous Motor
  • ML90S-4 1.1KW 1400r/min Electric Asynchronous Motor
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number ML801-2
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ML90S-4 Power 1.1KW
Voltage 220V Pole 2pole
Protection Class IP54 Insulation Class H
Duty S1 Product Name Single Phase Induction Motor
High Light

ML90S-4

,

1400r/Min Electric Asynchronous Motor

,

1.1KW Electric Asynchronous Motor
Leave a Message
Product Description

copper wire asynchronous single-phase electric motor ML90S-4 1.1KW

 Single Phase Induction Motor


Description

The ML series capacitor asynchronous motors are the single phase of the capacitor start and capacitor run with AL housing. Main features: small size high capacity, strong torque, high power factor and efficiency, safety and reliability in running, simple construction, and easy maintenance, it possesses frame No.and capacity as three-phase asynchronous motors. This series motors are of totally enclosed fan-cooled structure, ML series motor is suitable for machines and equipment such as full load start.



1. Customized Production is available.

2. Supply for OEM and After Markets.

3. 100% tested for quality before shipment

4. Certificate and Guarantee: ISO 9001:2008 / one year

5. package: carton&pallet



1.CE certificate
2.Copper wire
3.Cold-rolled silicon steel sheet




Data


Model Power
(KW)
(V)
(A)		 Speed
(r/min)		 Eff.
(%)		 P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110



single phase dual capacitor electric motor
