| Model: | MY90L-4 | Power: | 1.5kw/2hp |
|---|---|---|---|
| Voltage: | 220v | Frequency: | 50hz |
| Phase: | Single Phase Induction Motor | Housing: | Aluminum |
| Protection Class: | IP44/IP54 | Insulation Class: | B/F |
| Duty: | S1 | ||
| High Light: | 2hp Aluminum Electric Motor,1.5kw Aluminum Electric Motor,MY90L-4 |
||

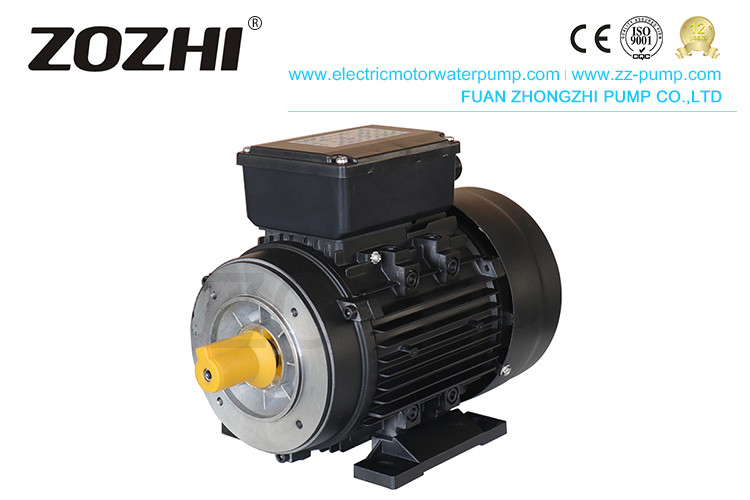

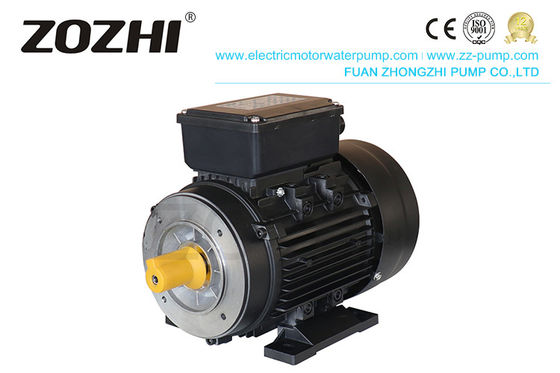

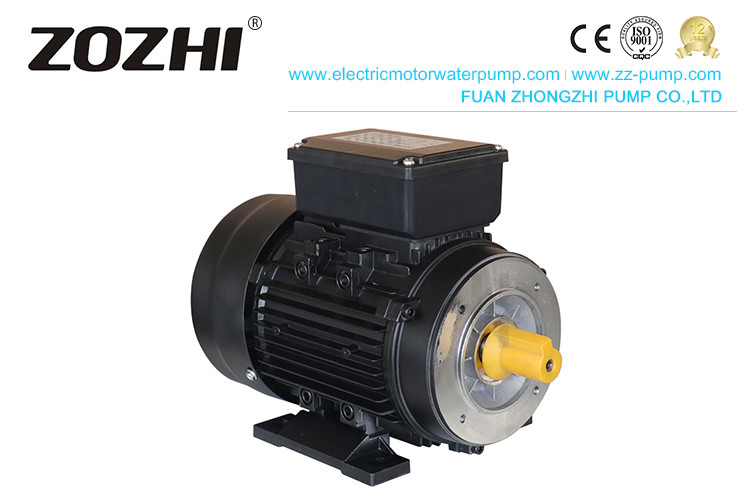

Single Phase Induction Motor
Introduction
MY Series Aluminum housing single-phase capacitor-run asynchronous motors, with the international latest design, are made of quality materials and meet the relative standards of IEC. MY series motors have the following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, low noise, slight vibration, lightweight, and simple construction.
This series of motors can be used on household appliances, pumps, fans, and recording meters, etc.
Working Condition
Ambient temperature: -15℃≤~≤40℃
Altitude: not exceed 1000m
Rated voltage: ±5%
Technical data
|
Model
|
Output | (V) |
(A) |
Speed (r/min) |
Eff. (%) |
P.F. | Tstart /Tn | Tmax/Tn | Ist/In(A) | |
| KW | HP | |||||||||
| MY631-2 | 0.18 | 0.25 | 220 | 1.48 | 2800 | 60 | 0.92 | 0.4 | 1.7 | 5 |
| MY632-2 | 0.25 | 0.34 | 220 | 1.96 | 2800 | 63 | 0.92 | 0.4 | 1.7 | 7 |
| MY711-2 | 0.37 | 0.5 | 220 | 2.73 | 2800 | 67 | 0.92 | 0.35 | 1.7 | 10 |
| MY712-2 | 0.55 | 0.75 | 220 | 3.88 | 2800 | 70 | 0.92 | 0.35 | 1.7 | 15 |
| MY801-2 | 0.75 | 1 | 220 | 5.15 | 2800 | 72 | 0.92 | 0.33 | 1.7 | 20 |
| MY802-2 | 1.10 | 1.5 | 220 | 7.02 | 2800 | 75 | 0.95 | 0.33 | 1.7 | 30 |
| MY90S-2 | 1.50 | 2 | 220 | 9.44 | 2800 | 76 | 0.95 | 0.30 | 1.7 | 45 |
| MY90L-2 | 2.20 | 3 | 220 | 13.67 | 2800 | 77 | 0.95 | 0.30 | 1.7 | 65 |
| MY631-4 | 0.12 | 0.16 | 220 | 1.10 | 1400 | 55 | 0.90 | 0.4 | 1.7 | 3.5 |
| MY632-4 | 0.18 | 0.25 | 220 | 1.62 | 1400 | 56 | 0.90 | 0.4 | 1.7 | 5 |
| MY711-4 | 0.25 | 0.34 | 220 | 2.02 | 1400 | 61 | 0.92 | 0.35 | 1.7 | 7 |
| MY712-4 | 0.37 | 0.5 | 220 | 2.95 | 1400 | 62 | 0.92 | 0.35 | 1.7 | 10 |
| MY801-4 | 0.55 | 0.75 | 220 | 4.25 | 1400 | 64 | 0.92 | 0.35 | 1.7 | 15 |
| MY802-4 | 0.75 | 1 | 220 | 5.45 | 1400 | 68 | 0.92 | 0.32 | 1.7 | 20 |
| MY90S-4 | 1.10 | 1.5 | 220 | 7.45 | 1400 | 71 | 0.95 | 0.32 | 1.7 | 30 |
| MY90L-4 | 1.50 | 2 | 220 | 9.83 | 1400 | 73 | 0.95 | 0.3 | 1.7 | 45 |
Overall & Installation Dimensions
|
Frame No.
|
Installation size | Overall size(mm) | ||||||||||||||||||||||||
| IMB14 | IMB5 | |||||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | M | N | P | R | S | T | M | N | P | R | S | T | AB | AC | AD | HD | L | |
| 63 | 100 | 80 | 40 | 11 | 23 | 4 | 8.5 | 63 | 7 | 75 | 60 | 90 | 0 | M5 | 2.5 | 115 | 95 | 140 | 0 | 10 | 3.0 | 130 | 130 | 115 | 185 | 230 |
| 71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 85 | 70 | 105 | 0 | M6 | 2.5 | 130 | 110 | 160 | 0 | 10 | 3.5 | 145 | 145 | 125 | 205 | 255 |
| 80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 100 | 80 | 120 | 0 | M6 | 3.0 | 165 | 130 | 200 | 0 | 12 | 3.5 | 160 | 160 | 135 | 235 | 295 |
| 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3.0 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 180 | 145 | 265 | 335 |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3.0 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 180 | 145 | 265 | 360 |
