Flange B35 MS100L1-4 2.2KW 3HP Three Phase Induction Motor

Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS100L1-4
Minimum Order Quantity 1pc
Price $35.3~$45.5
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 1.1kw/1.5Hp Pole 2
Phase Three Phase Housing Aluminum
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
Flange Size B35
High Light

2.2KW Aluminum Asynchronous Motors

,

MS100L1-4

Leave a Message
Product Description

3 Phase Induction Motor

MS100L1-4

2.2KW/3HP

1400RPM



The MS series aluminum housing three-phase asynchronous motors are the latest design and are made of selected quality materials and conform to the international IEC standard.MS motors have a very safe and reliable performance, are attractive, and can be easily maintained. They have low noise with little vibration but at the same time are lightweight and of simple construction. Therefore, the MS series motors can be used for general electric motor applications.



Motor Features:

1. Frame size: H56-132;
2. Power: 0.09-5.5Kw;
3. Voltage: 380V  ;

4. Rated Frequency: 50 Hz ;

5. Poles: 2 / 4 / 6

6. Speed: 900 -3000 r/min

7. Ambient Temperature: -15°C-40°C

8. Model of CONNECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;

9. Mounting: B3; B5; B35; B14; B34 ;
10. Duty: continuous (S1) ;

11. Insulation Class: BF ;

12. Protection Class: IP44,IP54,IP55;

13. Frame material: Aluminum body

14. Terminal box: Top or Side

15. Cooling Method: IC411 Standards;

16. Altitude: No more than 1,000 meters above sea level;

17. Packing: 56-112 frame be packaged by carton&pallets

132-160 frame be packaged by plywood case or wooden cases ;

18. Certifications: CE, CCC, ISO9001: 2008

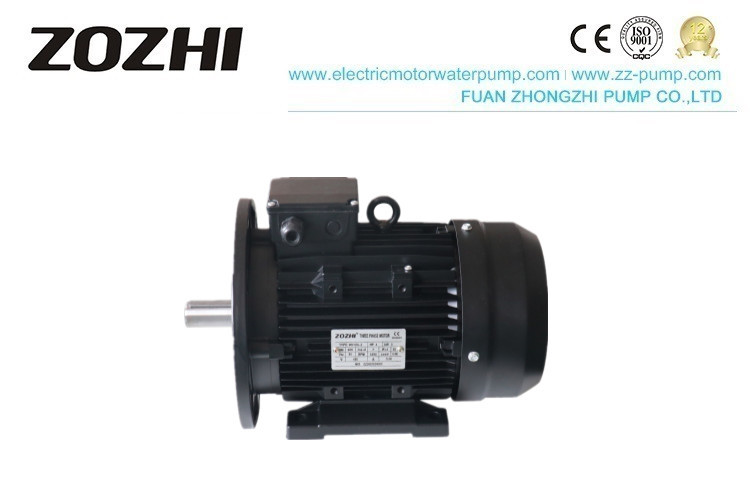

Flange B35 MS100L1-4 2.2KW 3HP Three Phase Induction Motor 0

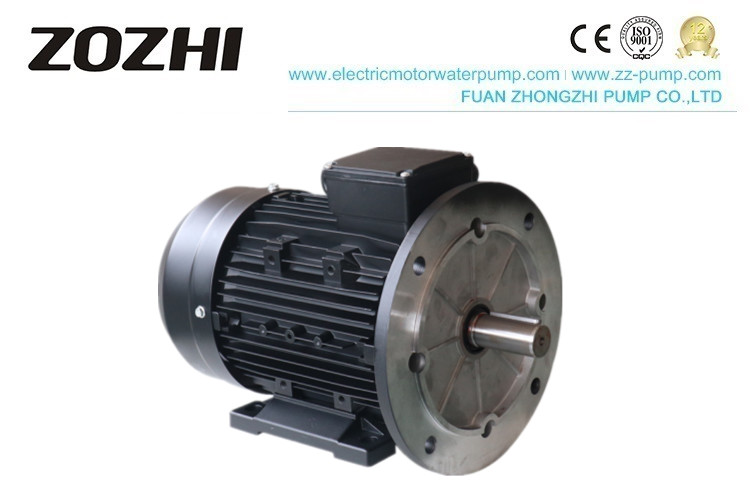

Flange B35 MS100L1-4 2.2KW 3HP Three Phase Induction Motor 1

Flange B35 MS100L1-4 2.2KW 3HP Three Phase Induction Motor 2



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In

HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5
