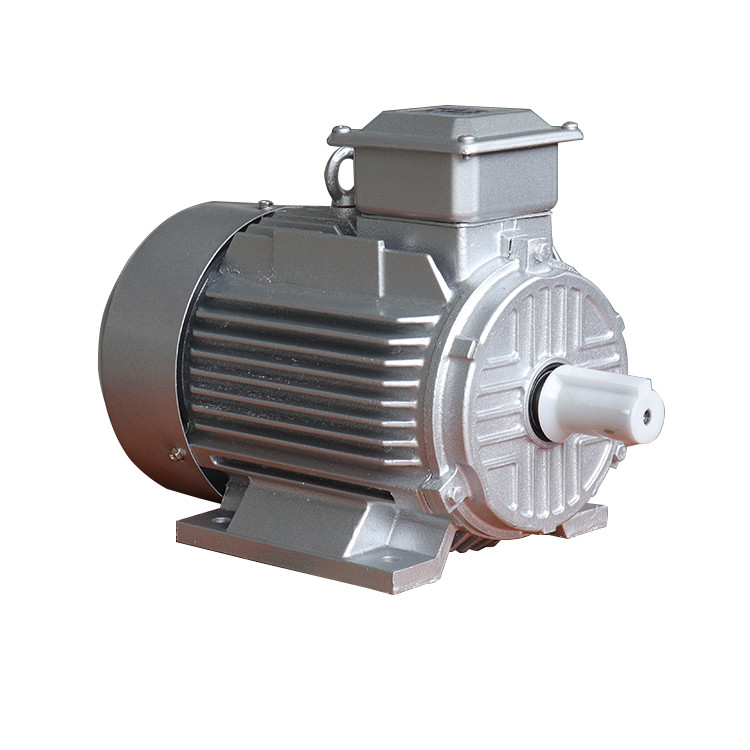

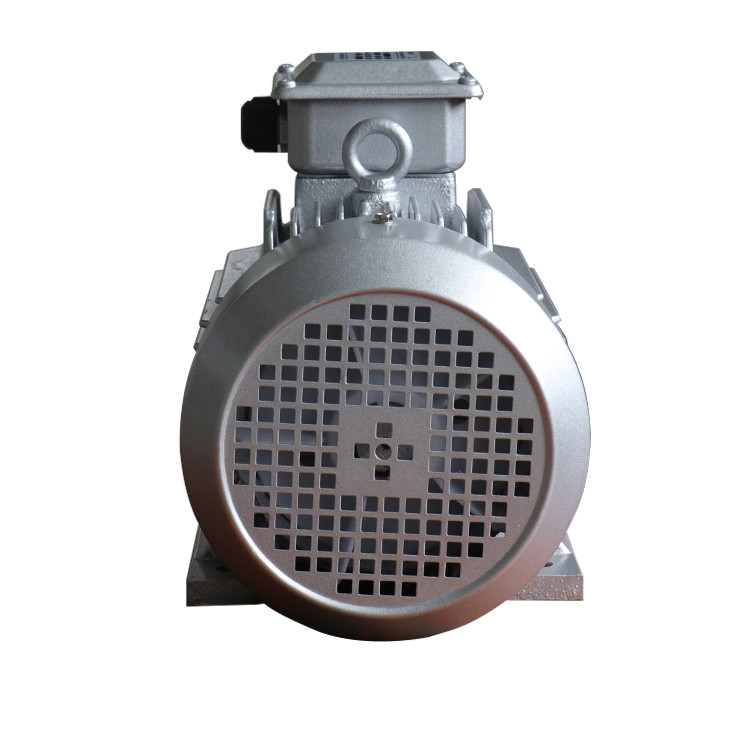

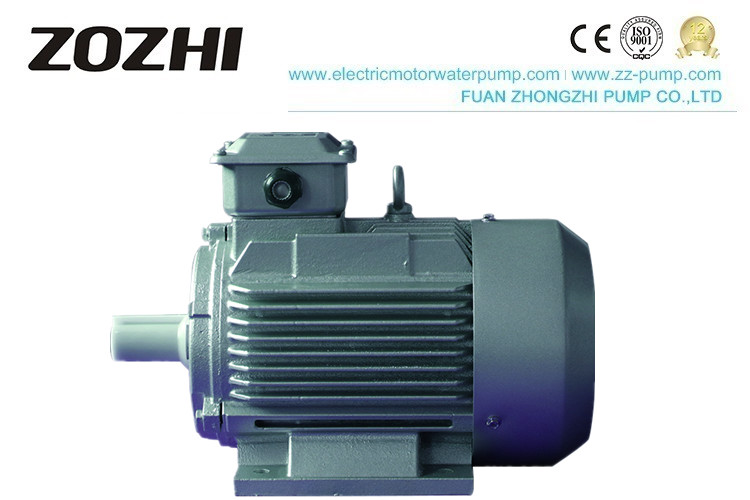

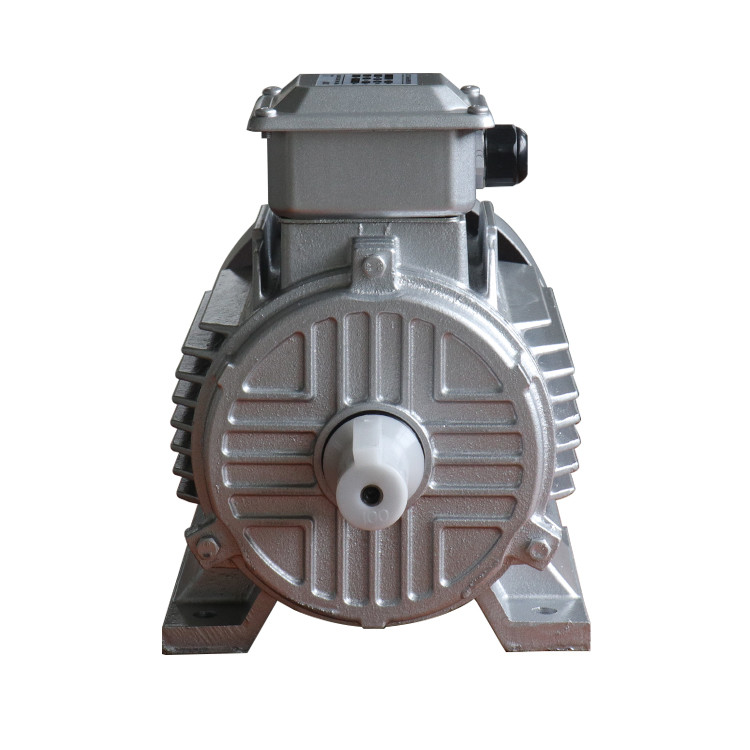

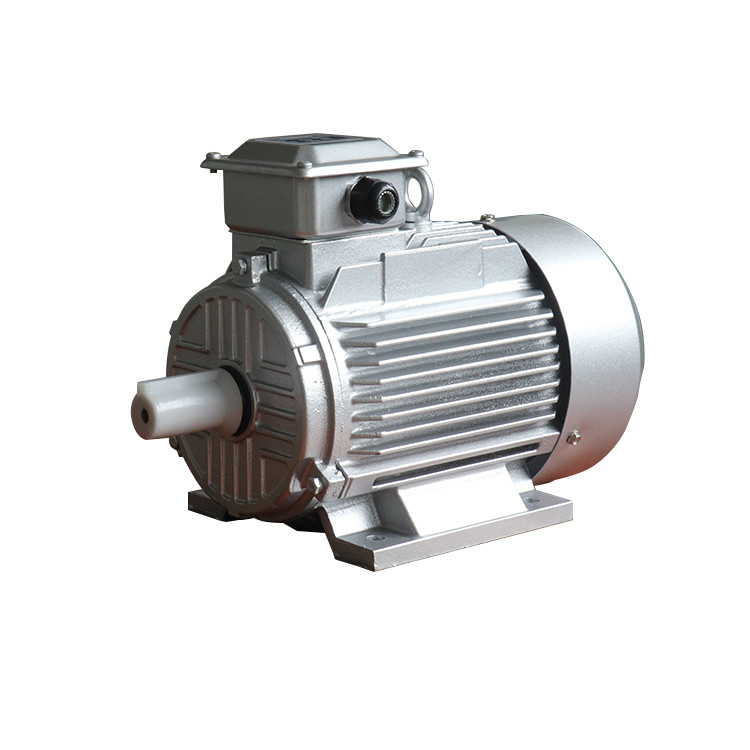

Cast Iron 4 Pole 7.5HP Three Phase Induction Motor

  • Cast Iron 4 Pole 7.5HP Three Phase Induction Motor
  • Cast Iron 4 Pole 7.5HP Three Phase Induction Motor
  • Cast Iron 4 Pole 7.5HP Three Phase Induction Motor
  • Cast Iron 4 Pole 7.5HP Three Phase Induction Motor
  • Cast Iron 4 Pole 7.5HP Three Phase Induction Motor
  • Cast Iron 4 Pole 7.5HP Three Phase Induction Motor
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number Y2-132S-4
Minimum Order Quantity 1pc
Price $44.6~$58.6
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 5.5kw Pole 4
Phase Three Phase Housing Cast Iron
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
High Light

5.5kw 3 phase asynchronous motor

,

ip54 3 phase electric motor
Leave a Message
Product Description

3 Phase Induction Motor



Y2 Series Three Phase Induction Motor
Model Y2-132S-4
Rated Power 5.5kw/7.5Hp
Service Factor 11.8
Supply Voltage 380V
Rate Frequency 60Hz/50Hz
Structure IP54, IP55
Insulation Grade B/F
Bearing NSK OR C&U
Efficiency IE1
Color Customizable
Ambient temperature -15oC≤θ≤40oC
Weight 73kgs
Measure 54x40x34Cm



Y2 Series Cast of Iron Three Phase Induction Motor is specially designed for the European market, whose terminal box is located on the top of the motor. They are enclosed and fan-cooling designed. In addition, they are newly designed in conformity with the relevant requirements /rules of IEC&DIN42673 standards.



They have high efficiency, long working life, energy-saving, high starting torque, low noise, small vibration, big breakaway torque, reliable operation performance, easy & convenient maintenance. Fixing measurement and power grade completely conform to IEC standards.

--Y2 series three-phase asynchronous electric motors are widely used in many fields, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, agitator, air compressor, etc.



For the Connection Model of the Y2 motor, please refer to the Name Plate on the motor (The Y Connection is adopted by motors' Output equal to or below 3kW; The Delta-Connection is adopted by motors Output above 4kW).

Y2 Motor can be equipped with PTC.

--For motor of frame size 160MM and above can be equipped with the re-greasing system.











Cast Iron 4 Pole 7.5HP Three Phase Induction Motor 0



Ist/In Power (A) Power Eff. (%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Speed 1500 r/min (4 Poles)
Y2-631-4 0.12 0.44 0.72 57 1400 2.2 4.5 2.2
Y2-632-4 0.18 0.62 0.73 60 1400 2.2 4.5 2.2
Y2-711-4 0.25 0.79 0.74 65 1400 2.2 5.5 2.2
Y2-712-4 0.37 1.12 0.75 67 1400 2.2 5.5 2.2
Y2-801-4 0.55 1.6 0.75 71 1400 2.2 5.5 2.2
Y2-802-4 0.75 2 0.77 73 1400 2.2 6 2.2
Y2-90S-4 1.1 2.9 0.77 750 1400 2.2 6 2.2
Y2-90L-4 1.5 3.7 0.79 78 1400 2.2 6 2.2
Y2-100L1-4 2.2 5.1 0.81 80 1420 2.2 7 2.2
Y2-100L2-4 3 6.8 0.82 82 1420 2.2 7 2.2
Y2-112M-4 4 8.8 0.82 84 1440 2.2 7 2.2
Y2-132S-4 5.5 11.8 0.83 85 1440 2.2 7 2.2
Y2-132M-4 7.5 15.5 0.84 87 1440 2 7 2.2
Y2-160M-4 11 22.3 0.85 88 1460 2 7 2.2
Y2-160L-4 15 30 0.85 89 1460 2 7 2.2
Y2-180M-4 18.5 36.4 0.85 90.5 1470 2.2 7.5 2.2
Y2-180L-4 22 43.1 0.85 91 1470 2.2 7.5 2.2
Y2-200L-4 30 58.4 0.86 92 1470 2.2 7.5 2.2
Y2-225S-4 37 69.9 0.87 92.5 1480 2.2 7.5 2.2
Y2-225M-4 45 84.7 0.87 92.8 1480 2.2 7.5 2.2
Y2-250M-4 55 103 0.89 93 1480 2.2 7 2.2
Y2-280S-4 75 140 0.86 93.8 1480 2.2 7 2.2
Y2-280M-4 90 167 0.86 94.2 1490 2.2 7 2.2
Y2-315S-4 110 201 0.87 94.5 1490 2.1 6.9 2.2
Y2-315M-4 132 240 0.87 94.8 1490 2.1 6.9 2.2
Y2-315L1-4 160 287 0.88 94.9 1490 2.1 6.9 2.2
Y2-315L2-4 200 359 0.88 95 1490 2.3 6.9 2.2
Y2-355M-4 250 443 0.88 95.3 1485 2.3 6.8 2.2
Y2-355L-4 315 556 0.89 95.6 1485 2.2 6.9 2.2
