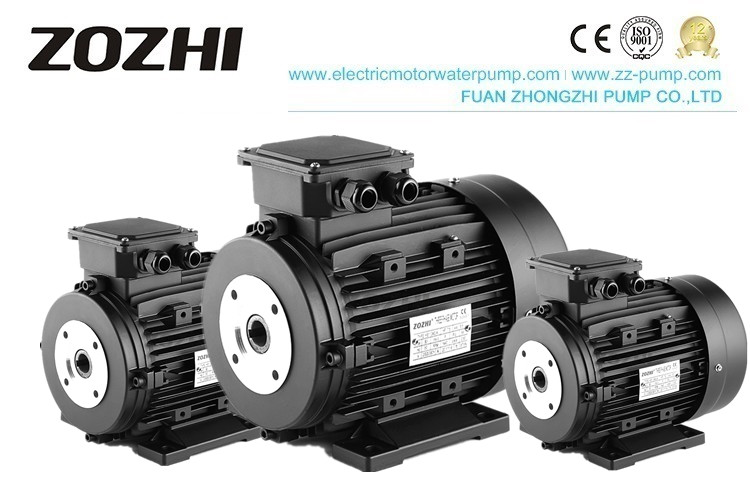

B3 Aluminum Housing 24mm Hollow Shaft Electric Motor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Hollow Shaft Motor | Voltage | 230/400V |
---|---|---|---|
Phase | Three Phase | Output | 15kw/20hp |
Shaft | 24mm | Frame | 160 |
Pole | 4 | Insulation | Class F |
Installation | B3 | Application | Cleaning Machine / Pressure Washer Machine |
High Light | hollow shaft electric motor,hollow shaft hydraulic motor,24mm hollow shaft electric motors |
B3 Aluminum Housing 24mm Hollow Shaft Electric Motor
Hollow Shaft Motor
Main Specification | Standard Optional |
Motor housing | Aluminum |
Stator&Rotor |
1. Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire |
bearing | C & U |
Shaft | C#45 |
Insulation | Class F |
Protection | IP55 |
Voltage | 220/380V Three Phase |
Frequency | 60HZ |
thermal protection | Yes |
Installation | B3 Hollow shaft 24mm |
The aluminum housing hollow shaft motor is a high-quality motor with the latest design, made of high-quality materials, in line with IEC standards. In addition, the empty metal tube design greatly optimizes the mechanical design, saving design space and production cost.
The hollow shaft motor has a wide range of applications and can use as a water pump, ventilation equipment, supercharging equipment, small hydroelectric generator, and propulsion.
The hollow shaft electric motor has the following advantages: reducing volume, weight, noise, multi-purpose, reducing cost, simple manufacturing, and convenient use.
50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FRAME | FLANGE | FRAME NO | APPLICABLE PUMP MODEL | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AR PUMP | HAWK PUMP | INTERPUMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
71 | 90mm | 71 | X.M. - R.K. - RG | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
90 | 61/90mm | 90L | XM - RK - RG | Series44/49/50/51/58/60/63 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
100 | 61/90mm | 100L | XM - RK - RW - XW - RG RC - RR - RS | NHD -NHDP -NMT | Series44/49/50/51/58/ 60/ 63 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
112 | 61/90mm | 112M | XM - RK - RW - XW - RG RC - RR - RS | NHD - NHDP -NMT -NPM | Series 47/59/66 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
132 | 61/90mm | 132S | RK - XW - RG RR | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
132 | 61/90mm | 132M | RK - XW - XWL - SXW - SHP - RG | NMT -NPM -PXI - NLTI -XLTI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
160 | 61mm | 160M | X.W. - XWL - SWL - SHP |
Application
Production line
Exhibition
Our service
Industry Information:
Can the motor efficiency be directly judged from the magnitude of the motor current?
Analyze the motor loss and heat level and compare the inspection objects. Because the external appearance of the motor is specific characteristics such as temperature rise, vibration, noise, etc., if the current motor parameters are not too different, less heat generation means less loss, which can prove the motor's high efficiency. Of course, it is difficult for customers to understand this aspect's content thoroughly. Still, low temperature and stable operation are always the most satisfactory to customers, attributed to a "good."
