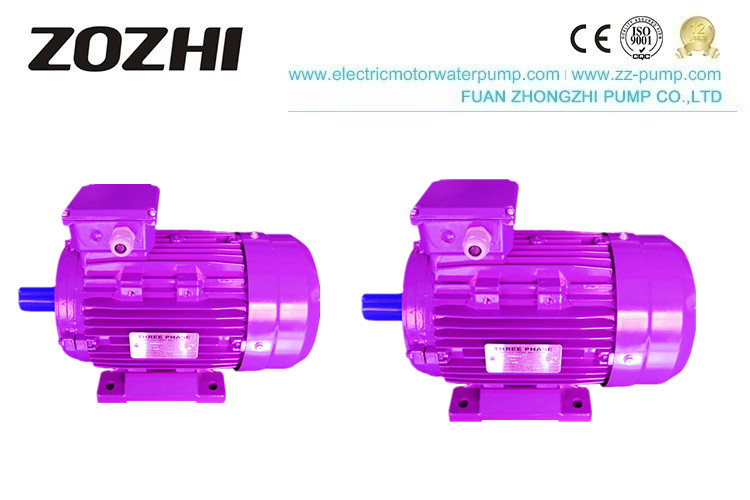

Ms Series 1HP 0.75kw Three Phase Electric Motor
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | ISO |
Model Number | MS802-4 |
Minimum Order Quantity | 10PCS |
Price | negotiated |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C, Western Union, E-checking |
Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOutput | 0.75KW/1HP | Pole | 4 |
---|---|---|---|
Motor Bearing | C&U (SKF For Choice) | Efficiency | IE1 IE2 IE3 |
Motor Housing | Aluminum | Protection Class | IP54/IP55 |
Insulation Class | F Class | Color | Customizable |
Product Name | 3 Phase Induction Motor | ||
High Light | squirrel cage electric motor,three phase induction motor |
Ms. Series Three Phase Induction Electric Motor 0.75kw/1HP
3 Phase Induction Motor
Frame and connection box material: grey cast iron
Standard color: stone grey(RAL7030)
Available in 2,4,6 pole variants with efficiency grade 2. according to GB18613-2006 and efficiency class IE2 according
Rated power range: 0.55kw-315kw at 50 Hz
Optimized compact style construction
Standard mounting construction according to IEC60034-7: IM B3, IM B5, IM B35, etc
All motors are designed to IP55 degree of protection (IEC60034-5)
Terminal box on top, and cable entry on the right side( viewed from the driven end). Variable location of connection boxes and cable entries as an option
The insulation system is designed for temperature class F. At rated output with the line-feed operation, the motors can be used in temperature class B
Self ventilated motors with radial-flow fans (cooling method IC 411 according to IEC 60034-6)as standard, forced air cool with external separately driven fans as an option
Degrees of motor protection IP55
Technical data
Model | Power | (V) | (HZ) | Current (A) | Power Factor |
Eff (%) |
Speed (r/min) |
Tstart/ Tn |
Tmax/ Tn |
Ist/ In |
||||||||||||||
HP | KW | |||||||||||||||||||||||
MS561-2 | 0.12 | 0.09 | 380 | 50 | 0.3 | 0.76 | 60 | 2750 | 2.3 | 2.4 | 6 | |||||||||||||
MS562-2 | 0.16 | 0.12 | 0.37 | 0.78 | 63 | 2750 | 2.3 | 2.4 | 6 | |||||||||||||||
MS631-2 | 0.25 | 0.18 | 0.53 | 0.75 | 69 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS632-2 | 0.33 | 0.25 | 0.68 | 0.78 | 72 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS711-2 | 0.5 | 0.37 | 0.98 | 0.8 | 73 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS712-2 | 0.75 | 0.55 | 1.35 | 0.82 | 75 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS801-2 | 1 | 0.75 | 1.75 | 0.85 | 76 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS802-2 | 1.5 | 1.1 | 2.55 | 0.85 | 77 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90S-2 | 2 | 1.5 | 3.36 | 0.87 | 78 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90L-2 | 3 | 2.2 | 4.93 | 0.87 | 78 | 2800 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L-2 | 4 | 3 | 6.31 | 0.87 | 83 | 2880 | 2.3 | 2.4 | 7 | |||||||||||||||
MS112M-2 | 5.5 | 4 | 8.12 | 0.88 | 85 | 2890 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S1-2 | 7.5 | 5.5 | 11 | 0.88 | 86 | 2900 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S2-2 | 10 | 7.5 | 14.9 | 0.88 | 87 | 2900 | 2.3 | 2.4 | 7 | |||||||||||||||
MS160L-2 | 25 | 18.5 | 34.7 | 0.9 | 90 | 2930 | 2.3 | 2.4 | 7 | |||||||||||||||
MS561-4 | 0.08 | 0.06 | 0.27 | 0.68 | 50 | 1300 | 2.2 | 2.3 | 5.5 | |||||||||||||||
MS562-4 | 0.12 | 0.09 | 0.36 | 0.7 | 54 | 1300 | 2.2 | 2.3 | 5.5 | |||||||||||||||
MS631-4 | 0.16 | 0.12 | 0.48 | 0.63 | 60 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS632-4 | 0.25 | 0.18 | 0.65 | 0.66 | 64 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS711-4 | 0.33 | 0.25 | 0.83 | 0.68 | 67 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS712-4 | 0.5 | 0.37 | 1.12 | 0.72 | 69 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS801-4 | 0.75 | 0.55 | 1.56 | 0.73 | 73 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS802-4 | 1 | 0.75 | 2.01 | 0.75 | 75 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90S-4 | 1.5 | 1.1 | 2.83 | 0.78 | 76 | 1400 | 2.3 | 2.4 | 5 | |||||||||||||||
MS90L-4 | 2 | 1.5 | 3.84 | 0.78 | 76 | 1400 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L1-4 | 3 | 2.2 | 4.2 | 0.75 | 75 | 1400 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L2-4 | 4 | 3 | 6.78 | 0.82 | 82 | 1410 | 2.3 | 2.4 | 7 | |||||||||||||||
MS112M-4 | 5.5 | 4 | 8.82 | 0.82 | 84 | 1435 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S-4 | 7.5 | 5.5 | 11.8 | 0.83 | 85.5 | 1445 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132M-4 | 10 | 7.5 | 15.6 | 0.84 | 87 | 1445 | 2.3 | 2.4 | 7 | |||||||||||||||
MS711-6 | 0.24 | 0.18 | 0.74 | 0.66 | 56 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS712-6 | 0.33 | 0.25 | 0.95 | 0.68 | 59 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS801-6 | 0.5 | 0.37 | 1.3 | 0.7 | 62 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS802-6 | 0.75 | 0.55 | 1.79 | 0.72 | 65 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS90S-6 | 1 | 0.75 | 2.29 | 0.72 | 69 | 910 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS90L-6 | 1.5 | 1.1 | 3.18 | 0.73 | 72 | 910 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS100L-6 | 2 | 1.5 | 3.89 | 0.76 | 76 | 940 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS112M-6 | 3 | 2.2 | 5.57 | 0.76 | 79 | 940 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132S-6 | 4 | 3 | 7.4 | 0.76 | 81 | 960 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132M1-6 | 5.5 | 4 | 9.75 | 0.76 | 82 | 960 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132M2-6 | 7.5 | 5.5 | 12.9 | 0.77 | 84 | 960 | 2.2 | 2.3 | 6.5 |
