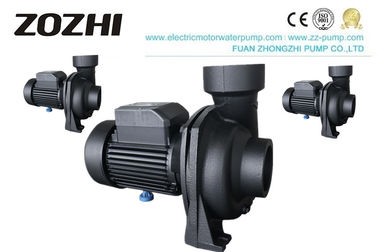

2 Inch Centrifugal Water Pump 0.8hp- 3hp NFM Cast Iron Body For Gardening Irrigation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xItem Name | Centrifugal Water Pump | Power | 2.0HP |
---|---|---|---|
Flow Max | 36000 | Head Max | 15 |
Pipe Size | 3"x3" | Feature | Gardening Irrigation |
High Light | electric centrifugal pump,water centrifugal pump |
2 Inch Centrifugal Water Pump 0.8hp- 3hp NFM Cast Iron Body For Gardening Irrigation
Centrifugal Water Pump
Operating conditions:
1. Liquid temperature up to 60ìC
2. Ambient temperature up to 40ìC
3. Total suction lift to 8m
4. Continuous duty
Motor:
1. Two-Pole induction motor(n=2900r. p. m. )
2. Insulation Class B/F
3. Protection IP44
Material:
1. Pump body: Cast Iron
2. Motor Support: Cast Iron
3. Impeller: Noryl
4. Shaft with rotor: Hi-Cr plated 45# Steel/Stainless Steel
5. Mechanical seal: Carbon/Ceramic
Application:
-Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rates.
-Suitable to pump clean water or non-aggressive liquids charged with small solid impurities.
-To be used in flow irrigation systems in gardening and agriculture, and industrial fittings.
Model | Power | Ampere | Speed | Q.Max | H. Max | S.Head | Pipe dia | N.W. | L×W×H | |
HP | kW | (V) | (r.p.m) | (L/min) | (m) | (m) | (mm) | (kg) | (mm) | |
NFm-128B | 0.80 | 0.60 | 3.20 | 2850 | 400 | 12.5 | 9 | 50×50 | 18 | 370×220×260 |
NFm-128A | 1.00 | 0.75 | 5.20 | 500 | 13.7 | 50×50 | 22 | 370×220×260 | ||
NFm-129B | 1.50 | 1.10 | 7.00 | 500 | 15 | 75×75 | 45 | 470×265×350 | ||
NFm-129A | 2.00 | 1.50 | 9.60 | 850 | 15 | 100×100 | 52 | 500×310×360 | ||
NFm-130C | 1.50 | 1.10 | 7.00 | 600 | 12 | 75×75 | 32 | 435×265×350 | ||
NFm-130B | 2.00 | 1.50 | 9.60 | 850 | 13 | 75×75 | 34 | 435×265×350 | ||
NFm-130A | 3.00 | 2.20 | 13.90 | 1000 | 15 | 75×75 | 41 | 435×265×350 |
Attention to Parts:
Application
Production line
Our service:
1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
Centrifugal Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ:
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
1 year.
