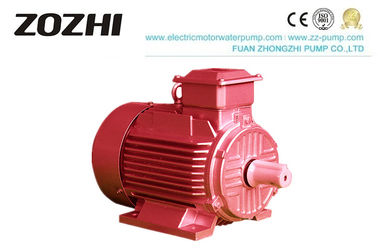

Flange Three Phase AC Electric Motor Y2 Low Voltage B5 B14 B34 Driving Application
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 3 Phase Induction Motor | Application | Driving |
---|---|---|---|
Power | 7.5KW /10HP | Pole | 2 |
Phase | 3 Phase | Insulation Classtion Class | F |
Voltage | 380v | Type | Asynchronous Motor |
High Light | squirrel cage electric motor,three phase induction motor |
Y2 Electric Motor Low Voltage B5 B14 B34 Flange Three Phase AC Electric Motor
PRODUCTION USE CONDITIONS:
Through the use of the Y2 series motor, customers can save over 10%, which is conducive to enhancing the customer's position in the industry enhance the competitiveness of their products!
Technical data list
Rated power: 0.55 ~ 315 kW
Frame size: 80 ~ 355
Voltage and frequency: support multiple voltage and frequency
Cooling method: IC411
Oiling device: standard motor frame size 180~355
Protection grade: IP54
Insulation grade: F
Ambient temperature: -15 ~ 40 oC
Altitude: not more than 1000 m
PERFORMANCE CHART:
Model | Output HP KW | Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
Eff (%) |
Power Factor |
Eff (%) |
Power Factor |
Tstart/Tn | Ist/In | Tmax/Tn | ||||||||||||
380V 5OHz Synchronous Speed 3000r/min (2 Poles) | ||||||||||||||||||||||||
Y2-631-2 | 0.25 | 0.18 | 0.53 | 2720 | 65.0 | 0.80 | 63.1 | 0.75 | 60.0 | 0.69 | 2.2 | 6.5 | 2.3 | |||||||||||
Y2-632-2 | 0.34 | 0.25 | 0.69 | 2720 | 68.0 | 0.81 | 65.1 | 0.76 | 62.0 | 0.70 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-711-2 | 0.5 | 0.37 | 0.99 | 2740 | 70.0 | 0.81 | 69.0 | 0.76 | 66.0 | 0.71 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-712-2 | 0.75 | 0.55 | 1.4 | 2740 | 73.0 | 0.82 | 71.2 | 0.70 | 70.0 | 0.72 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-801-2 | 1 | 0.75 | 1.83 | 2830 | 75.0 | 0.83 | 73.0 | 0.77 | 71.0 | 0.74 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-802-2 | 1.5 | 1.1 | 2.58 | 2830 | 77.0 | 0.84 | 75.1 | 0.78 | 73.0 | 0.73 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-90S-2 | 2 | 1.5 | 3.43 | 2840 | 79.0 | 0.84 | 77.0 | 0.78 | 74.9 | 0.76 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-90L-2 | 3 | 2.2 | 4.85 | 2840 | 81.0 | 0.85 | 80.0 | 0.79 | 79.9 | 0.76 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-100L-2 | 4 | 3 | 6.31 | 2870 | 83.0 | 0.87 | 82.0 | 0.80 | 81.1 | 0.77 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-112M-2 | 5.5 | 4 | 8.1 | 2890 | 85.0 | 0.88 | 83.9 | 0.83 | 82.0 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132S1-2 | 7.5 | 5.5 | 11 | 2900 | 86.0 | 0.88 | 84.2 | 0.83 | 83.8 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132S2-2 | 10 | 7.5 | 14.9 | 2900 | 87.0 | 0.88 | 85.8 | 0.84 | 84.9 | 0.78 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132M1-2 | 15 | 11 | 21.3 | 2930 | 88.0 | 0.89 | 86.6 | 0.84 | 85.1 | 0.79 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132M2-2 | 20 | 15 | 28.8 | 2930 | 89.0 | 0.89 | 87.9 | 0.84 | 86.4 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-160L-2 | 25 | 18.5 | 34.7 | 2930 | 90.0 | 0.90 | 89.8 | 0.86 | 86.8 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-180M-2 | 30 | 22 | 41 | 2940 | 90.0 | 0.90 | 88.9 | 0.86 | 86.8 | 0.82 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-200L1-2 | 40 | 30 | 55.5 | 2950 | 91.2 | 0.90 | 89.4 | 0.85 | 88.5 | 0.81 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-200L2-2 | 50 | 37 | 67.9 | 2950 | 92.0 | 0.90 | 91.0 | 0.86 | 90.4 | 0.82 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-225M-2 | 60 | 45 | 82.3 | 2970 | 92.3 | 0.90 | 90.5 | 0.85 | 89.7 | 0.82 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-250M-2 | 75 | 55 | 101 | 2970 | 92.5 | 0.90 | 91.3 | 0.85 | 91.0 | 0.82 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-280S-2 | 100 | 75 | 134 | 2970 | 93.0 | 0.90 | 91.9 | 0.86 | 91.5 | 0.81 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-280M-2 | 125 | 90 | 160 | 2970 | 93.8 | 0.91 | 92.6 | 0.87 | 92.2 | 0.83 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-315S-2 | 150 | 110 | 195 | 2980 | 94.0 | 0.91 | 93.1 | 0.87 | 93.0 | 0.83 | 1.6 | 7.0 | 2.2 | |||||||||||
Y2-315M-2 | 180 | 132 | 233 | 2980 | 94.5 | 0.91 | 93.2 | 0.87 | 93.1 | 0.84 | 1.6 | 7.1 | 2.2 | |||||||||||
Y2-315L1-2 | 220 | 160 | 279 | 2980 | 94.6 | 0.92 | 93.1 | 0.88 | 93.3 | 0.85 | 1.6 | 7.2 | 2.2 | |||||||||||
Y2-315L2-2 | 270 | 200 | 348 | 2980 | 94.8 | 0.92 | 94.0 | 0.88 | 93.8 | 0.85 | 1.6 | 7.3 | 2.2 | |||||||||||
Y2-355M-2 | 340 | 250 | 433 | 2980 | 95.3 | 0.92 | 94.8 | 0.88 | 94.0 | 0.85 | 1.6 | 7.4 | 2.2 | |||||||||||
Y2-355L-2 | 430 | 315 | 544 | 2980 | 95.6 | 0.92 | 95.0 | 0.88 | 94.0 | 0.85 | 1.6 | 7.5 | 2.2 | |||||||||||
380V 5OHz Synchronous Speed 1500r/min (4 Poles) | ||||||||||||||||||||||||
Y2-631-4 | 0.16 | 0.12 | 0.42 | 1310 | 57.0 | 0.72 | 56.1 | 0.69 | 51.9 | 0.55 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-632-4 | 0.25 | 0.18 | 0.62 | 1310 | 60.0 | 0.73 | 58.5 | 0.70 | 56.7 | 0.59 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-711-4 | 0.34 | 0.25 | 0.79 | 1330 | 65.0 | 0.74 | 62.4 | 0.73 | 59.3 | 0.59 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-712-4 | 0.5 | 0.37 | 1.12 | 1330 | 67.0 | 0.75 | 65.3 | 0.74 | 60.1 | 0.63 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-801-4 | 0.75 | 0.55 | 1.57 | 1390 | 71.0 | 0.75 | 69.2 | 0.74 | 68.6 | 0.64 | 2.4 | 5.2 | 2.3 | |||||||||||
Y2-802-4 | 1 | 0.75 | 2.03 | 1390 | 73.0 | 0.76 | 71.7 | 0.75 | 70.0 | 0.67 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-90S-4 | 1.5 | 1.1 | 2.89 | 1400 | 75.0 | 0.77 | 73.1 | 0.75 | 72.0 | 0.67 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-90L-4 | 2 | 1.5 | 3.7 | 1400 | 78.0 | 0.79 | 76.1 | 0.76 | 74.1 | 0.69 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-100L1-4 | 3 | 2.2 | 5.16 | 1430 | 80.0 | 0.81 | 78.0 | 0.79 | 75.5 | 0.69 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-100L2-4 | 4 | 3 | 6.78 | 1430 | 82.0 | 0.82 | 79.9 | 0.78 | 78.5 | 0.70 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.0 | 0.82 | 82.9 | 0.79 | 81.1 | 0.70 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-132S-4 | 7.5 | 5.5 | 11.7 | 1440 | 85.0 | 0.83 | 83.8 | 0.81 | 82.2 | 0.73 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-132M-4 | 10 | 7.5 | 15.6 | 1440 | 87.0 | 0.84 | 85.6 | 0.82 | 83.6 | 0.74 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-160M-4 | 15 | 11 | 22.3 | 1460 | 88.0 | 0.84 | 86.8 | 0.83 | 85.9 | 0.75 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-160L-4 | 20 | 15 | 30.1 | 1460 | 89.0 | 0.85 | 88.9 | 0.83 | 88.5 | 0.75 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-180M-4 | 25 | 18.5 | 36.5 | 1470 | 90.5 | 0.86 | 90.0 | 0.82 | 89.5 | 0.77 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-180L-4 | 30 | 22 | 43.2 | 1470 | 91.0 | 0.86 | 90.2 | 0.84 | 89.9 | 0.76 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-200L-4 | 40 | 30 | 57.6 | 1470 | 92.0 | 0.86 | 91.5 | 0.84 | 90.8 | 0.77 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-225S-4 | 50 | 37 | 69.9 | 1480 | 92.5 | 0.87 | 91.9 | 0.87 | 90.3 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-225M-4 | 60 | 45 | 84.7 | 1480 | 92.8 | 0.87 | 92.4 | 0.87 | 90.9 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-250M-4 | 75 | 55 | 103 | 1480 | 93.0 | 0.87 | 92.7 | 0.89 | 91.2 | 0.81 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-280S-4 | 100 | 75 | 140 | 1480 | 93.8 | 0.87 | 92.4 | 0.86 | 91.6 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-280M-4 | 125 | 90 | 167 | 1490 | 94.2 | 0.87 | 93.0 | 0.86 | 92.8 | 0.78 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-315S-4 | 150 | 110 | 201 | 1490 | 94.5 | 0.88 | 93.3 | 0.87 | 92.8 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315M-4 | 180 | 132 | 240 | 1490 | 94.8 | 0.88 | 93.8 | 0.87 | 93.0 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315L1-4 | 220 | 160 | 287 | 1490 | 94.9 | 0.89 | 93.9 | 0.88 | 93.1 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315L2-4 | 270 | 200 | 359 | 1490 | 95.0 | 0.89 | 94.1 | 0.88 | 93.8 | 0.82 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-355M-4 | 340 | 250 | 443 | 1485 | 95.3 | 0.90 | 94.3 | 0.88 | 94.0 | 0.83 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-355L-4 | 430 | 315 | 556 | 1485 | 95.6 | 0.90 | 94.5 | 0.89 | 94.0 | 0.84 | 2.1 | 6.9 | 2.2 | |||||||||||
PERFORMANCE CHART | ||||||||||||||||||||||||
Model | Output HP KW | Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
Tstart/Tn | Ist/In | Tmax/Tn | ||||||||||||||||
380V 5OHz Synchronous Speed 1000r/min (6 Poles) | ||||||||||||||||||||||||
Y2-711-6 | 0.25 | 0.18 | 0.74 | 850 | 56.0 | 0.66 | 1.9 | 4.0 | 2.0 | |||||||||||||||
Y2-712-6 | 0.34 | 0.25 | 0.95 | 850 | 59.0 | 0.68 | 1.9 | 4.0 | 2.0 | |||||||||||||||
Y2-801-6 | 0.5 | 0.37 | 1.3 | 890 | 62.0 | 0.70 | 1.9 | 4.7 | 2.0 | |||||||||||||||
Y2-802-6 | 0.75 | 0.55 | 1.79 | 890 | 65.0 | 0.72 | 1.9 | 4.7 | 2.1 | |||||||||||||||
Y2-90S-6 | 1 | 0.75 | 2.29 | 910 | 69.0 | 0.72 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-90L-6 | 1.5 | 1.1 | 3.18 | 910 | 72.0 | 0.73 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-100L-6 | 2 | 1.5 | 3.94 | 940 | 76.0 | 0.75 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-112M-6 | 3 | 2.2 | 5.6 | 940 | 79.0 | 0.76 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-132S-6 | 4 | 3 | 7.4 | 960 | 81.0 | 0.76 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-132M1-6 | 5.5 | 4 | 9.8 | 960 | 82.0 | 0.76 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-132M2-6 | 7.5 | 5.5 | 12.9 | 960 | 84.0 | 0.77 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-160M-6 | 10 | 7.5 | 17 | 970 | 86.0 | 0.77 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-160L-6 | 15 | 11 | 24.2 | 970 | 87.5 | 0.78 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-180L-6 | 20 | 15 | 31.6 | 970 | 89.0 | 0.81 | 2.0 | 7.0 | 2.1 | |||||||||||||||
Y2-200L1-6 | 25 | 18.5 | 38.6 | 970 | 90.0 | 0.81 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-200L2-6 | 30 | 22 | 44.7 | 970 | 90.0 | 0.83 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-225M-6 | 40 | 30 | 59.3 | 980 | 91.5 | 0.84 | 2.0 | 7.0 | 2.1 | |||||||||||||||
Y2-250M-6 | 50 | 37 | 71 | 980 | 92.0 | 0.86 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-280S-6 | 60 | 45 | 86 | 980 | 92.5 | 0.86 | 2.1 | 7.0 | 2.0 | |||||||||||||||
Y2-280M-6 | 75 | 55 | 105 | 980 | 92.8 | 0.86 | 2.1 | 7.0 | 2.0 | |||||||||||||||
Y2-315S-6 | 100 | 75 | 141 | 990 | 93.5 | 0.86 | 2.0 | 7.0 | 2.0 | |||||||||||||||
Y2-315M-6 | 125 | 90 | 168 | 990 | 93.8 | 0.86 | 2.0 | 7.0 | 2.0 | |||||||||||||||
Y2-315L1-6 | 150 | 110 | 206 | 990 | 94.0 | 0.86 | 2.0 | 6.7 | 2.0 | |||||||||||||||
Y2-315L2-6 | 180 | 132 | 244 | 990 | 94.2 | 0.87 | 2.0 | 6.7 | 2.0 | |||||||||||||||
Y2-355M1-6 | 220 | 160 | 282 | 990 | 94.5 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
Y2-355M2-6 | 270 | 200 | 365 | 990 | 94.7 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
Y2-355L-6 | 340 | 250 | 455 | 990 | 94.9 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
380V 5OHz Synchronous Speed 750r/min (8 Poles) | ||||||||||||||||||||||||
Y2-160M1-8 | 5.5 | 4 | 10.3 | 720 | 81.0 | 0.73 | 2.0 | 6.0 | 2.0 | |||||||||||||||
Y2-160M2-8 | 7.5 | 5.5 | 13.6 | 720 | 83.0 | 0.74 | 2.1 | 6.0 | 2.0 | |||||||||||||||
Y2-160L-8 | 10 | 7.5 | 17.8 | 720 | 85.5 | 0.75 | 2.1 | 6.0 | 2.0 | |||||||||||||||
Y2-180L-8 | 15 | 11 | 25.1 | 730 | 87.5 | 0.76 | 2.1 | 6.6 | 2.0 | |||||||||||||||
Y2-200L-8 | 20 | 15 | 34.1 | 730 | 88.0 | 0.76 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-225S-8 | 25 | 18.5 | 40.6 | 730 | 90.0 | 0.76 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-225M-8 | 30 | 22 | 47.4 | 740 | 90.5 | 0.78 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-250M-8 | 40 | 30 | 64 | 740 | 91.0 | 0.79 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-280S-8 | 50 | 37 | 78 | 740 | 91.5 | 0.79 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-280M-8 | 60 | 45 | 94 | 740 | 92.0 | 0.79 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315S-8 | 75 | 55 | 111 | 740 | 92.8 | 0.81 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315M-8 | 100 | 75 | 151 | 740 | 93.0 | 0.81 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315L1-8 | 125 | 90 | 178 | 740 | 93.8 | 0.82 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315L2-8 | 150 | 110 | 217 | 740 | 94.0 | 0.82 | 2.9 | 6.4 | 2.0 |
3 Phase Induction Motor APPLICATIONS:
Y2 series motors are based on updates designed to improve the product, electrical outlet boxes placed on top of the motor, installation size, and power ratings to satisfy the IEC standard. With a novel structure, beautiful shape, low noise, slight vibration, high power, high starting torque, convenient maintenance, etc. To achieve a long decade on behalf of the advanced international level is upgrading Y series products.
This series motor is widely used in machinery and equipment without special requirements such as agricultural machinery, food machinery, fans, pumps, machine tools, mixing stirring machines, air compressors, etc.
3 Phase Induction Motor ADVANTAGE:
1. Outstanding performance
2. High efficiency
3. Energy-saving
4. High starting torque
5. Low noise
6. Little vibration
7. Reliable operation and easy maintenance
3 Phase Induction Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
