1400 Nameplate RPM Three Phase Induction Motor 7.5 HP 230/460 Voltage Frame 112M
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Name | Hollow Shaft Motor | Voltage | 230/400V |
---|---|---|---|
Phase | Three Phase | Output | 5.5kw/7.5hp |
Speed | 1400rpm | Shaft | 24mm |
Frame | 100 | Material | Die Cast Aluminum |
Pole | 4 | Insulation | Class F |
Protection | IP55 | Installation | B3 |
IEC Standard | IE1 | Application | Cleaning Machine / Pressure Washer Machine |
High Light | hollow shaft electric motor,hollow shaft hydraulic motor,Cleaning Machine electric motor hollow shaft |
Product Description

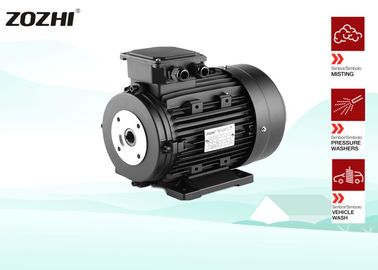

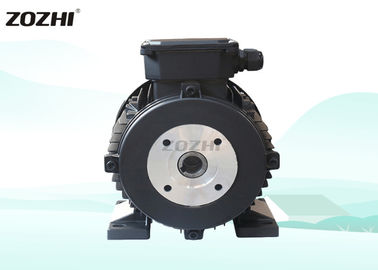

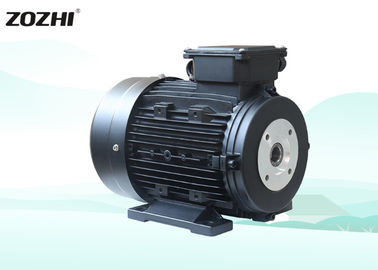

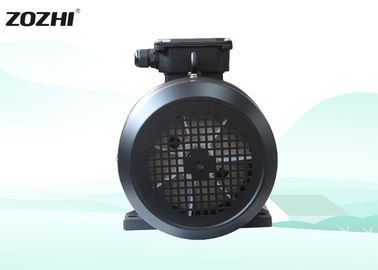

1400 Nameplate RPM Three Phase Induction Motor 7.5 HP 230/460 Voltage Frame 112M
Hollow Shaft Motor
- Item: Hollow Shaft Motor
- Motor Application: Pump, Cleaning Machine
- Motor Design: 3-Phase
- Motor Enclosure Design: Enclosed Fan-Cooled
- HP: 7.5
- kW: 5.5
- Nameplate: RPM 1400
- Frame: 112M2
- Voltage: 230/460
- Hz: 60/50
- Phase: 3
- Full Load Amps 11.7
- Motor Mounting Type Face/Base
- Motor Thermal Protection None
- Ins. Class F
- Motor Service Factor 0.82
- Motor Bearings Ball
- Motor Frame Material Cast Aluminum
- Shaft Dia. 24mm
- Motor Efficiency Group NEMA Premium Efficient
- Nominal Efficiency 84%
- Duty Continuous
- Standards C.E.
- Includes Terminal Board, Multi-Mount Repositionable Feet to Allow for 3
50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FRAME | FLANGE | FRAME NO | APPLICABLE PUMP MODEL | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AR PUMP | HAWK PUMP | INTERPUMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
71 | 90mm | 71 | X.M. - R.K. - RG | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
90 | 61/90mm | 90L | XM - RK - RG | Series44/49/50/51/58/60/63 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
100 | 61/90mm | 100L | XM - RK - RW - XW - RG RC - RR - RS | NHD -NHDP -NMT | Series44/49/50/51/58/ 60/ 63 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
112 | 61/90mm | 112M | XM - RK - RW - XW - RG RC - RR - RS | NHD - NHDP -NMT -NPM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
132 | 61/90mm | 132S | RK - XW - RG RR | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
132 | 61/90mm | 132M | RK - XW - XWL - SXW - SHP - RG | NMT -NPM -PXI - NLTI -XLTI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
160 | 61mm | 160M | X.W. - XWL - SWL - SHP |
