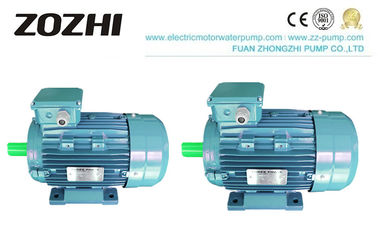

3hp 3 Phase Asynchronous Induction Motor , 1400rpm Three Phase AC Motor MSL1-4
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | ISO |
Model Number | MS100L1-4 |
Minimum Order Quantity | 10PCS |
Price | negotiated |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C, Western Union, E-checking |
Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOutput | 2.2KW/3HP | Pole | 4 |
---|---|---|---|
Motor Bearing | C&U (SKF For Choice) | Efficiency | IE1 |
Motor Housing | Aluminum | Protection Class | IP54/IP55 |
Insulation Class | F Class | Color | Customizable |
Product Name | 3 Phase Induction Motor | ||
High Light | squirrel cage electric motor,three phase induction motor |
MSL1-4 3hp 3Phase Asynchronous Induction Motor 1400rpm Three Phase AC Motor
Product Description
MS Series motor with aluminum housing three-phase asynchronous motors, with the latest design entirely, is made of selected quality materials and the IEC standard.
MS motors have good performance, safety and reliable operation, nice appearance. Moreover, they can be maintained very conveniently with low noises, little vibration, and lightweight and simple construction.
3 Phase Induction Motor Main Features
1. Aluminum frame, end shields, and base
2. High strength cable gland
3. Shaft key and protector supplied
4. Superior paint finish
5. Motors made to heavy-duty service factors
6. Can be made with stainless steel shaft
7. Others insulation on request
8. High performance and efficiency
3 Phase Induction Motor Application
This series motor is suitable for general machinery, such as air pump, fan, medical apparatus and cutting machinery, and small machinery.
3 Phase Induction Motor Application
Technical data
Model | Power | (V) | (HZ) | Current (A) | Power Factor |
Eff (%) |
Speed (r/min) |
Tstart/ Tn |
Tmax/ Tn |
Ist/ In |
||||||||||||||
HP | KW | |||||||||||||||||||||||
MS561-2 | 0.12 | 0.09 | 380 | 50 | 0.3 | 0.76 | 60 | 2750 | 2.3 | 2.4 | 6 | |||||||||||||
MS562-2 | 0.16 | 0.12 | 0.37 | 0.78 | 63 | 2750 | 2.3 | 2.4 | 6 | |||||||||||||||
MS631-2 | 0.25 | 0.18 | 0.53 | 0.75 | 69 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS632-2 | 0.33 | 0.25 | 0.68 | 0.78 | 72 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS711-2 | 0.5 | 0.37 | 0.98 | 0.8 | 73 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS712-2 | 0.75 | 0.55 | 1.35 | 0.82 | 75 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS801-2 | 1 | 0.75 | 1.75 | 0.85 | 76 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS802-2 | 1.5 | 1.1 | 2.55 | 0.85 | 77 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90S-2 | 2 | 1.5 | 3.36 | 0.87 | 78 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90L-2 | 3 | 2.2 | 4.93 | 0.87 | 78 | 2800 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L-2 | 4 | 3 | 6.31 | 0.87 | 83 | 2880 | 2.3 | 2.4 | 7 | |||||||||||||||
MS112M-2 | 5.5 | 4 | 8.12 | 0.88 | 85 | 2890 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S1-2 | 7.5 | 5.5 | 11 | 0.88 | 86 | 2900 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S2-2 | 10 | 7.5 | 14.9 | 0.88 | 87 | 2900 | 2.3 | 2.4 | 7 | |||||||||||||||
MS160L-2 | 25 | 18.5 | 34.7 | 0.9 | 90 | 2930 | 2.3 | 2.4 | 7 | |||||||||||||||
MS561-4 | 0.08 | 0.06 | 0.27 | 0.68 | 50 | 1300 | 2.2 | 2.3 | 5.5 | |||||||||||||||
MS562-4 | 0.12 | 0.09 | 0.36 | 0.7 | 54 | 1300 | 2.2 | 2.3 | 5.5 | |||||||||||||||
MS631-4 | 0.16 | 0.12 | 0.48 | 0.63 | 60 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS632-4 | 0.25 | 0.18 | 0.65 | 0.66 | 64 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS711-4 | 0.33 | 0.25 | 0.83 | 0.68 | 67 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS712-4 | 0.5 | 0.37 | 1.12 | 0.72 | 69 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS801-4 | 0.75 | 0.55 | 1.56 | 0.73 | 73 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS802-4 | 1 | 0.75 | 2.01 | 0.75 | 75 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90S-4 | 1.5 | 1.1 | 2.83 | 0.78 | 76 | 1400 | 2.3 | 2.4 | 5 | |||||||||||||||
MS90L-4 | 2 | 1.5 | 3.84 | 0.78 | 76 | 1400 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L1-4 | 3 | 2.2 | 4.2 | 0.75 | 75 | 1400 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L2-4 | 4 | 3 | 6.78 | 0.82 | 82 | 1410 | 2.3 | 2.4 | 7 | |||||||||||||||
MS112M-4 | 5.5 | 4 | 8.82 | 0.82 | 84 | 1435 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S-4 | 7.5 | 5.5 | 11.8 | 0.83 | 85.5 | 1445 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132M-4 | 10 | 7.5 | 15.6 | 0.84 | 87 | 1445 | 2.3 | 2.4 | 7 | |||||||||||||||
MS711-6 | 0.24 | 0.18 | 0.74 | 0.66 | 56 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS712-6 | 0.33 | 0.25 | 0.95 | 0.68 | 59 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS801-6 | 0.5 | 0.37 | 1.3 | 0.7 | 62 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS802-6 | 0.75 | 0.55 | 1.79 | 0.72 | 65 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS90S-6 | 1 | 0.75 | 2.29 | 0.72 | 69 | 910 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS90L-6 | 1.5 | 1.1 | 3.18 | 0.73 | 72 | 910 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS100L-6 | 2 | 1.5 | 3.89 | 0.76 | 76 | 940 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS112M-6 | 3 | 2.2 | 5.57 | 0.76 | 79 | 940 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132S-6 | 4 | 3 | 7.4 | 0.76 | 81 | 960 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132M1-6 | 5.5 | 4 | 9.75 | 0.76 | 82 | 960 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132M2-6 | 7.5 | 5.5 | 12.9 | 0.77 | 84 | 960 | 2.2 | 2.3 | 6.5 |
