CPM Series Electric Centrifugal Pump High Efficiency 130L/ Min Flow 1.1kw 1.5kw
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Centrifugal Water Pump | Head Max | 42 M |
|---|---|---|---|
| Flow Max | 130L/min | Pipe Siza | 1"x1" |
| RPM | 2850 | Power | 1.1/1.5 |
| High Light | electric centrifugal pump,water centrifugal pump |
||
Product Description

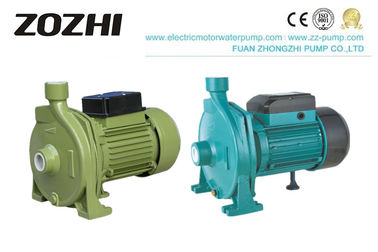

CPM Series Electric Centrifugal Pump High-Efficiency 130L/ Min Flow 1.1kw 1.5kw
Centrifugal Water Pump
CPM series centrifugal pump is a high-efficiency electric pump with a high-quality special mechanical seal composed of a micro centrifugal pump. It's convenient to operate and maintain with a high head and small capacity.
Application Areas
These project products are mainly used in dry regions for agriculture. You can use it for the tank, domestic water supply, water transfer, pressure boosting, irrigation, drinking water, and living water. Therefore, the living condition could be much improved.
| Model | Single-phase Motor | n=2850r/min |  |
|||||
| Input max KW | Output Power | Current | Q.Max | H. Max | Suct max | |||
| kW | HP | A | (L/min) | (m) | (m) | |||
| CPM-130 | 0.60 | 0.37 | 0.50 | 0.9 | 75 | 20 | 9 | |
| CPM-146 | 0.75 | 0.55 | 0.75 | 3.8 | 100 | 25 | ||
| CPM-158 | 1.10 | 0.75 | 1.00 | 5.2 | 110 | 32 | ||
| CPM-180 | 1.50 | 1.10 | 1.50 | 7.0 | 130 | 42 | ||
| CPM-200 | 2.02 | 1.50 | 2.00 | 9.6 | 150 | 50 | ||
Other voltages and frequencies available on request
| Model | DIMENSIONS(mm) | PACKAGE DIMENSIONS&G.W | ||||||||||||||||||||
| DNA | DNM | a | b | c | d | e | f | g | h | i | j | k | l | m | A | B | H | KG | |
|||
| Inch | mm | Inch | mm | |||||||||||||||||||
| CPM-130 | 1" | 25 | 1" | 25 | 295 | -- | -- | 42 | 170 | 135 | 10 | 82 | 211 | -- | -- | -- | -- | 310 | 170 | 230 | 8.9 | |
| CPM-146 | 1" | 25 | 1" | 25 | 305 | -- | -- | 44 | 190 | 160 | 10 | 100 | 242 | -- | -- | -- | -- | 340 | 210 | 250 | 12.2 | |
| CPM-158 | 1" | 25 | 1" | 25 | 305 | -- | -- | 44 | 190 | 160 | 10 | 100 | 242 | -- | -- | -- | -- | 340 | 210 | 250 | 13.8 | |
| CPM-180 | 1" | 25 | 1" | 25 | 360 | -- | -- | 53 | 207 | 160 | 10 | 112 | 262 | -- | -- | -- | -- | 425 | 250 | 320 | 21 | |
| CPM-200 | 1" | 25 | 1" | 25 | 388 | 32 | -- | 60 | 207 | 160 | 10 | 112 | 259 | -- | -- | -- | -- | 425 | 250 | 320 | 23 | |
Centrifugal Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
