100% Copper Wire 3 Phase Asynchronous Motor Aluminum Shell F Insulation Class
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 3 Phase Induction Motor | Application | Corn Grits Milling Making Machine |
---|---|---|---|
Power | 7.5KW | Pole | 4 |
Phase | 3 Phase | Insulation Classtion Class | F |
Voltage | 380v | Type | Asynchronous Motor |
High Light | squirrel cage electric motor,three phase induction motor |

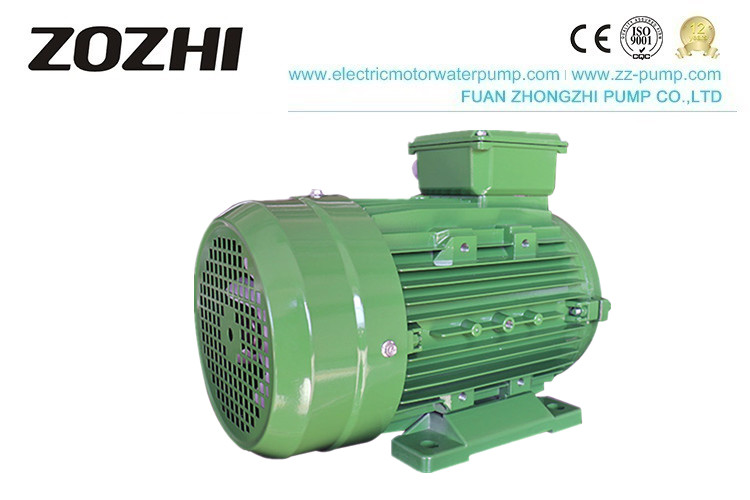

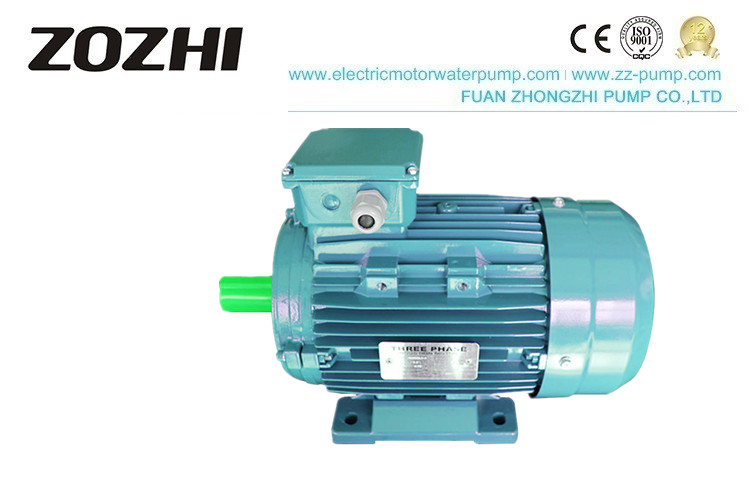

MS Series Aluminum Shell Three-phase Asynchronous Motor 100% Copper Wire
3 Phase Induction Motor
Three-phase asynchronous motor
MS series three-phase asynchronous motor with aluminum shell meets the relevant regulations of IEC of the National Electrotechnical Association. In addition, it adopts high-quality raw materials for the latest overall design. As a result, it has good performance, low noise, and low vibration.
Feature of electric motor
Performance Feature:
1, 100% high-quality copper winding
2, High Starting Torques
3, Full strong power output
4, High efficiency
5, Energy Saving
6, Low Noise
7, High Performance
Appearance Feature:
1, Outlet box on top of the motor frame
2, The whole structure compaction
3, Install size meet IEC standard
4, Any colors for customizable
5, housing body smooth surface
6, Paint wholly and evenly cover
Spare parts Feature:
1, 800# up cold-rolled sheet
2, High precision rotor processing balance
3, High-quality copper
4, High-quality heat dissipation fan
5, High-Temperature Bearing
6, High precision oil seal
What is a Corn grits milling-making machine?
Mainly used to process corn, wheat, barley, and other grains of cereals, as well as the peeling and processing of rice and sorghum peeled into rice, especially corn after removing the hard skin and germ parts, improve the corn edible taste effect, expand In addition to the application range of corn, corn flour milling, and processing corn noodles are very popular after peeling. However, according to the customers' requirements, cleaning, peeling, crushing, polishing, and sieving into flour and coarse grain are different.
Our service
1. Directly factory sale
2. Customized production is available
3. Quick response to 2-8hours, response rates over 92%
4. 24 hours phone call is available. Feel free to contact us.
5. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and the sample making. Also, we can advise how to make the products according to customers' target prices.
Performance chart:
Model | Output HP KW | Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
Eff (%) |
Power Factor |
Eff (%) |
Power Factor |
Tstart/Tn | Ist/In | Tmax/Tn | ||||||||||||
380V 5OHz Synchronous Speed 3000r/min (2 Poles) | ||||||||||||||||||||||||
Y2-631-2 | 0.25 | 0.18 | 0.53 | 2720 | 65.0 | 0.80 | 63.1 | 0.75 | 60.0 | 0.69 | 2.2 | 6.5 | 2.3 | |||||||||||
Y2-632-2 | 0.34 | 0.25 | 0.69 | 2720 | 68.0 | 0.81 | 65.1 | 0.76 | 62.0 | 0.70 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-711-2 | 0.5 | 0.37 | 0.99 | 2740 | 70.0 | 0.81 | 69.0 | 0.76 | 66.0 | 0.71 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-712-2 | 0.75 | 0.55 | 1.4 | 2740 | 73.0 | 0.82 | 71.2 | 0.70 | 70.0 | 0.72 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-801-2 | 1 | 0.75 | 1.83 | 2830 | 75.0 | 0.83 | 73.0 | 0.77 | 71.0 | 0.74 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-802-2 | 1.5 | 1.1 | 2.58 | 2830 | 77.0 | 0.84 | 75.1 | 0.78 | 73.0 | 0.73 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-90S-2 | 2 | 1.5 | 3.43 | 2840 | 79.0 | 0.84 | 77.0 | 0.78 | 74.9 | 0.76 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-90L-2 | 3 | 2.2 | 4.85 | 2840 | 81.0 | 0.85 | 80.0 | 0.79 | 79.9 | 0.76 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-100L-2 | 4 | 3 | 6.31 | 2870 | 83.0 | 0.87 | 82.0 | 0.80 | 81.1 | 0.77 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-112M-2 | 5.5 | 4 | 8.1 | 2890 | 85.0 | 0.88 | 83.9 | 0.83 | 82.0 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132S1-2 | 7.5 | 5.5 | 11 | 2900 | 86.0 | 0.88 | 84.2 | 0.83 | 83.8 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132S2-2 | 10 | 7.5 | 14.9 | 2900 | 87.0 | 0.88 | 85.8 | 0.84 | 84.9 | 0.78 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132M1-2 | 15 | 11 | 21.3 | 2930 | 88.0 | 0.89 | 86.6 | 0.84 | 85.1 | 0.79 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132M2-2 | 20 | 15 | 28.8 | 2930 | 89.0 | 0.89 | 87.9 | 0.84 | 86.4 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-160L-2 | 25 | 18.5 | 34.7 | 2930 | 90.0 | 0.90 | 89.8 | 0.86 | 86.8 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-180M-2 | 30 | 22 | 41 | 2940 | 90.0 | 0.90 | 88.9 | 0.86 | 86.8 | 0.82 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-200L1-2 | 40 | 30 | 55.5 | 2950 | 91.2 | 0.90 | 89.4 | 0.85 | 88.5 | 0.81 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-200L2-2 | 50 | 37 | 67.9 | 2950 | 92.0 | 0.90 | 91.0 | 0.86 | 90.4 | 0.82 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-225M-2 | 60 | 45 | 82.3 | 2970 | 92.3 | 0.90 | 90.5 | 0.85 | 89.7 | 0.82 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-250M-2 | 75 | 55 | 101 | 2970 | 92.5 | 0.90 | 91.3 | 0.85 | 91.0 | 0.82 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-280S-2 | 100 | 75 | 134 | 2970 | 93.0 | 0.90 | 91.9 | 0.86 | 91.5 | 0.81 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-280M-2 | 125 | 90 | 160 | 2970 | 93.8 | 0.91 | 92.6 | 0.87 | 92.2 | 0.83 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-315S-2 | 150 | 110 | 195 | 2980 | 94.0 | 0.91 | 93.1 | 0.87 | 93.0 | 0.83 | 1.6 | 7.0 | 2.2 | |||||||||||
Y2-315M-2 | 180 | 132 | 233 | 2980 | 94.5 | 0.91 | 93.2 | 0.87 | 93.1 | 0.84 | 1.6 | 7.1 | 2.2 | |||||||||||
Y2-315L1-2 | 220 | 160 | 279 | 2980 | 94.6 | 0.92 | 93.1 | 0.88 | 93.3 | 0.85 | 1.6 | 7.2 | 2.2 | |||||||||||
Y2-315L2-2 | 270 | 200 | 348 | 2980 | 94.8 | 0.92 | 94.0 | 0.88 | 93.8 | 0.85 | 1.6 | 7.3 | 2.2 | |||||||||||
Y2-355M-2 | 340 | 250 | 433 | 2980 | 95.3 | 0.92 | 94.8 | 0.88 | 94.0 | 0.85 | 1.6 | 7.4 | 2.2 | |||||||||||
Y2-355L-2 | 430 | 315 | 544 | 2980 | 95.6 | 0.92 | 95.0 | 0.88 | 94.0 | 0.85 | 1.6 | 7.5 | 2.2 | |||||||||||
380V 5OHz Synchronous Speed 1500r/min (4 Poles) | ||||||||||||||||||||||||
Y2-631-4 | 0.16 | 0.12 | 0.42 | 1310 | 57.0 | 0.72 | 56.1 | 0.69 | 51.9 | 0.55 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-632-4 | 0.25 | 0.18 | 0.62 | 1310 | 60.0 | 0.73 | 58.5 | 0.70 | 56.7 | 0.59 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-711-4 | 0.34 | 0.25 | 0.79 | 1330 | 65.0 | 0.74 | 62.4 | 0.73 | 59.3 | 0.59 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-712-4 | 0.5 | 0.37 | 1.12 | 1330 | 67.0 | 0.75 | 65.3 | 0.74 | 60.1 | 0.63 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-801-4 | 0.75 | 0.55 | 1.57 | 1390 | 71.0 | 0.75 | 69.2 | 0.74 | 68.6 | 0.64 | 2.4 | 5.2 | 2.3 | |||||||||||
Y2-802-4 | 1 | 0.75 | 2.03 | 1390 | 73.0 | 0.76 | 71.7 | 0.75 | 70.0 | 0.67 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-90S-4 | 1.5 | 1.1 | 2.89 | 1400 | 75.0 | 0.77 | 73.1 | 0.75 | 72.0 | 0.67 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-90L-4 | 2 | 1.5 | 3.7 | 1400 | 78.0 | 0.79 | 76.1 | 0.76 | 74.1 | 0.69 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-100L1-4 | 3 | 2.2 | 5.16 | 1430 | 80.0 | 0.81 | 78.0 | 0.79 | 75.5 | 0.69 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-100L2-4 | 4 | 3 | 6.78 | 1430 | 82.0 | 0.82 | 79.9 | 0.78 | 78.5 | 0.70 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.0 | 0.82 | 82.9 | 0.79 | 81.1 | 0.70 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-132S-4 | 7.5 | 5.5 | 11.7 | 1440 | 85.0 | 0.83 | 83.8 | 0.81 | 82.2 | 0.73 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-132M-4 | 10 | 7.5 | 15.6 | 1440 | 87.0 | 0.84 | 85.6 | 0.82 | 83.6 | 0.74 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-160M-4 | 15 | 11 | 22.3 | 1460 | 88.0 | 0.84 | 86.8 | 0.83 | 85.9 | 0.75 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-160L-4 | 20 | 15 | 30.1 | 1460 | 89.0 | 0.85 | 88.9 | 0.83 | 88.5 | 0.75 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-180M-4 | 25 | 18.5 | 36.5 | 1470 | 90.5 | 0.86 | 90.0 | 0.82 | 89.5 | 0.77 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-180L-4 | 30 | 22 | 43.2 | 1470 | 91.0 | 0.86 | 90.2 | 0.84 | 89.9 | 0.76 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-200L-4 | 40 | 30 | 57.6 | 1470 | 92.0 | 0.86 | 91.5 | 0.84 | 90.8 | 0.77 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-225S-4 | 50 | 37 | 69.9 | 1480 | 92.5 | 0.87 | 91.9 | 0.87 | 90.3 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-225M-4 | 60 | 45 | 84.7 | 1480 | 92.8 | 0.87 | 92.4 | 0.87 | 90.9 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-250M-4 | 75 | 55 | 103 | 1480 | 93.0 | 0.87 | 92.7 | 0.89 | 91.2 | 0.81 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-280S-4 | 100 | 75 | 140 | 1480 | 93.8 | 0.87 | 92.4 | 0.86 | 91.6 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-280M-4 | 125 | 90 | 167 | 1490 | 94.2 | 0.87 | 93.0 | 0.86 | 92.8 | 0.78 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-315S-4 | 150 | 110 | 201 | 1490 | 94.5 | 0.88 | 93.3 | 0.87 | 92.8 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315M-4 | 180 | 132 | 240 | 1490 | 94.8 | 0.88 | 93.8 | 0.87 | 93.0 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315L1-4 | 220 | 160 | 287 | 1490 | 94.9 | 0.89 | 93.9 | 0.88 | 93.1 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315L2-4 | 270 | 200 | 359 | 1490 | 95.0 | 0.89 | 94.1 | 0.88 | 93.8 | 0.82 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-355M-4 | 340 | 250 | 443 | 1485 | 95.3 | 0.90 | 94.3 | 0.88 | 94.0 | 0.83 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-355L-4 | 430 | 315 | 556 | 1485 | 95.6 | 0.90 | 94.5 | 0.89 | 94.0 | 0.84 | 2.1 | 6.9 | 2.2 | |||||||||||
PERFORMANCE CHART | ||||||||||||||||||||||||
Model | Output HP KW | Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
Tstart/Tn | Ist/In | Tmax/Tn | ||||||||||||||||
380V 5OHz Synchronous Speed 1000r/min (6 Poles) | ||||||||||||||||||||||||
Y2-711-6 | 0.25 | 0.18 | 0.74 | 850 | 56.0 | 0.66 | 1.9 | 4.0 | 2.0 | |||||||||||||||
Y2-712-6 | 0.34 | 0.25 | 0.95 | 850 | 59.0 | 0.68 | 1.9 | 4.0 | 2.0 | |||||||||||||||
Y2-801-6 | 0.5 | 0.37 | 1.3 | 890 | 62.0 | 0.70 | 1.9 | 4.7 | 2.0 | |||||||||||||||
Y2-802-6 | 0.75 | 0.55 | 1.79 | 890 | 65.0 | 0.72 | 1.9 | 4.7 | 2.1 | |||||||||||||||
Y2-90S-6 | 1 | 0.75 | 2.29 | 910 | 69.0 | 0.72 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-90L-6 | 1.5 | 1.1 | 3.18 | 910 | 72.0 | 0.73 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-100L-6 | 2 | 1.5 | 3.94 | 940 | 76.0 | 0.75 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-112M-6 | 3 | 2.2 | 5.6 | 940 | 79.0 | 0.76 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-132S-6 | 4 | 3 | 7.4 | 960 | 81.0 | 0.76 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-132M1-6 | 5.5 | 4 | 9.8 | 960 | 82.0 | 0.76 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-132M2-6 | 7.5 | 5.5 | 12.9 | 960 | 84.0 | 0.77 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-160M-6 | 10 | 7.5 | 17 | 970 | 86.0 | 0.77 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-160L-6 | 15 | 11 | 24.2 | 970 | 87.5 | 0.78 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-180L-6 | 20 | 15 | 31.6 | 970 | 89.0 | 0.81 | 2.0 | 7.0 | 2.1 | |||||||||||||||
Y2-200L1-6 | 25 | 18.5 | 38.6 | 970 | 90.0 | 0.81 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-200L2-6 | 30 | 22 | 44.7 | 970 | 90.0 | 0.83 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-225M-6 | 40 | 30 | 59.3 | 980 | 91.5 | 0.84 | 2.0 | 7.0 | 2.1 | |||||||||||||||
Y2-250M-6 | 50 | 37 | 71 | 980 | 92.0 | 0.86 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-280S-6 | 60 | 45 | 86 | 980 | 92.5 | 0.86 | 2.1 | 7.0 | 2.0 | |||||||||||||||
Y2-280M-6 | 75 | 55 | 105 | 980 | 92.8 | 0.86 | 2.1 | 7.0 | 2.0 | |||||||||||||||
Y2-315S-6 | 100 | 75 | 141 | 990 | 93.5 | 0.86 | 2.0 | 7.0 | 2.0 | |||||||||||||||
Y2-315M-6 | 125 | 90 | 168 | 990 | 93.8 | 0.86 | 2.0 | 7.0 | 2.0 | |||||||||||||||
Y2-315L1-6 | 150 | 110 | 206 | 990 | 94.0 | 0.86 | 2.0 | 6.7 | 2.0 | |||||||||||||||
Y2-315L2-6 | 180 | 132 | 244 | 990 | 94.2 | 0.87 | 2.0 | 6.7 | 2.0 | |||||||||||||||
Y2-355M1-6 | 220 | 160 | 282 | 990 | 94.5 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
Y2-355M2-6 | 270 | 200 | 365 | 990 | 94.7 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
Y2-355L-6 | 340 | 250 | 455 | 990 | 94.9 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
380V 5OHz Synchronous Speed 750r/min (8 Poles) | ||||||||||||||||||||||||
Y2-160M1-8 | 5.5 | 4 | 10.3 | 720 | 81.0 | 0.73 | 2.0 | 6.0 | 2.0 | |||||||||||||||
Y2-160M2-8 | 7.5 | 5.5 | 13.6 | 720 | 83.0 | 0.74 | 2.1 | 6.0 | 2.0 | |||||||||||||||
Y2-160L-8 | 10 | 7.5 | 17.8 | 720 | 85.5 | 0.75 | 2.1 | 6.0 | 2.0 | |||||||||||||||
Y2-180L-8 | 15 | 11 | 25.1 | 730 | 87.5 | 0.76 | 2.1 | 6.6 | 2.0 | |||||||||||||||
Y2-200L-8 | 20 | 15 | 34.1 | 730 | 88.0 | 0.76 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-225S-8 | 25 | 18.5 | 40.6 | 730 | 90.0 | 0.76 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-225M-8 | 30 | 22 | 47.4 | 740 | 90.5 | 0.78 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-250M-8 | 40 | 30 | 64 | 740 | 91.0 | 0.79 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-280S-8 | 50 | 37 | 78 | 740 | 91.5 | 0.79 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-280M-8 | 60 | 45 | 94 | 740 | 92.0 | 0.79 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315S-8 | 75 | 55 | 111 | 740 | 92.8 | 0.81 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315M-8 | 100 | 75 | 151 | 740 | 93.0 | 0.81 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315L1-8 | 125 | 90 | 178 | 740 | 93.8 | 0.82 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315L2-8 | 150 | 110 | 217 | 740 | 94.0 | 0.82 | 2.9 | 6.4 | 2.0 |
