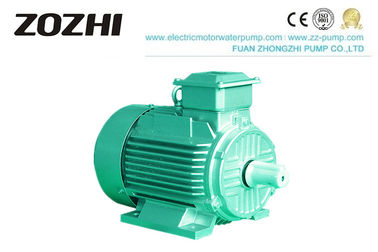

Cast Iron Ac Induction Motor , 30KW 3 Phase 4 Pole Induction Motor Y2-200L-4
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 3 Phase Induction Motor | Application | Corn Grits Milling Making Machine |
---|---|---|---|
Power | 30KW | Pole | 4 |
Phase | 3 Phase | Insulation Classtion Class | F |
Voltage | 380v | Type | Asynchronous Motor |
High Light | squirrel cage electric motor,three phase induction motor |
3 Phase Ac Induction Motor High-Quality Cast Iron Y2-200L-4 Electric Motor
3 Phase Induction Motor
Y2 series induction electromagnetic braking three-phase asynchronous motor power rating, installation size, insulation grade, working mode, cooling mode, use conditions are the same as the corresponding specifications of the Y2 series.
The implementation of standard JB/T8680-2008 "Y2 series three-phase asynchronous technical motor conditions" and refer to Q/HDJ01 -2008 "Y2 series electromagnetic braking three-phase asynchronous motor technical conditions".
Y2 series motor is suitable for machinery, such as quick stop, accurate positioning, reciprocating operation, frequent start, and prevent sliding. Such as water pump, transport machinery, fan blower, mixer, food machinery, construction machinery, CNC machinery, mining machinery, compressor, forging machinery, etc.
Our service
1. Directly factory sale
2. Customized production is available
3. Quick response to 2-8hours, response rates over 92%
4. 24 hours phone call is available. Feel free to contact us.
5. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and the sample making. Also, we can advise how to make the products according to customers' target prices.
Performance chart:
Model | Output HP KW | Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
Eff (%) |
Power Factor |
Eff (%) |
Power Factor |
Tstart/Tn | Ist/In | Tmax/Tn | ||||||||||||
380V 5OHz Synchronous Speed 3000r/min (2 Poles) | ||||||||||||||||||||||||
Y2-631-2 | 0.25 | 0.18 | 0.53 | 2720 | 65.0 | 0.80 | 63.1 | 0.75 | 60.0 | 0.69 | 2.2 | 6.5 | 2.3 | |||||||||||
Y2-632-2 | 0.34 | 0.25 | 0.69 | 2720 | 68.0 | 0.81 | 65.1 | 0.76 | 62.0 | 0.70 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-711-2 | 0.5 | 0.37 | 0.99 | 2740 | 70.0 | 0.81 | 69.0 | 0.76 | 66.0 | 0.71 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-712-2 | 0.75 | 0.55 | 1.4 | 2740 | 73.0 | 0.82 | 71.2 | 0.70 | 70.0 | 0.72 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-801-2 | 1 | 0.75 | 1.83 | 2830 | 75.0 | 0.83 | 73.0 | 0.77 | 71.0 | 0.74 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-802-2 | 1.5 | 1.1 | 2.58 | 2830 | 77.0 | 0.84 | 75.1 | 0.78 | 73.0 | 0.73 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-90S-2 | 2 | 1.5 | 3.43 | 2840 | 79.0 | 0.84 | 77.0 | 0.78 | 74.9 | 0.76 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-90L-2 | 3 | 2.2 | 4.85 | 2840 | 81.0 | 0.85 | 80.0 | 0.79 | 79.9 | 0.76 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-100L-2 | 4 | 3 | 6.31 | 2870 | 83.0 | 0.87 | 82.0 | 0.80 | 81.1 | 0.77 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-112M-2 | 5.5 | 4 | 8.1 | 2890 | 85.0 | 0.88 | 83.9 | 0.83 | 82.0 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132S1-2 | 7.5 | 5.5 | 11 | 2900 | 86.0 | 0.88 | 84.2 | 0.83 | 83.8 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132S2-2 | 10 | 7.5 | 14.9 | 2900 | 87.0 | 0.88 | 85.8 | 0.84 | 84.9 | 0.78 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132M1-2 | 15 | 11 | 21.3 | 2930 | 88.0 | 0.89 | 86.6 | 0.84 | 85.1 | 0.79 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132M2-2 | 20 | 15 | 28.8 | 2930 | 89.0 | 0.89 | 87.9 | 0.84 | 86.4 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-160L-2 | 25 | 18.5 | 34.7 | 2930 | 90.0 | 0.90 | 89.8 | 0.86 | 86.8 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-180M-2 | 30 | 22 | 41 | 2940 | 90.0 | 0.90 | 88.9 | 0.86 | 86.8 | 0.82 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-200L1-2 | 40 | 30 | 55.5 | 2950 | 91.2 | 0.90 | 89.4 | 0.85 | 88.5 | 0.81 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-200L2-2 | 50 | 37 | 67.9 | 2950 | 92.0 | 0.90 | 91.0 | 0.86 | 90.4 | 0.82 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-225M-2 | 60 | 45 | 82.3 | 2970 | 92.3 | 0.90 | 90.5 | 0.85 | 89.7 | 0.82 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-250M-2 | 75 | 55 | 101 | 2970 | 92.5 | 0.90 | 91.3 | 0.85 | 91.0 | 0.82 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-280S-2 | 100 | 75 | 134 | 2970 | 93.0 | 0.90 | 91.9 | 0.86 | 91.5 | 0.81 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-280M-2 | 125 | 90 | 160 | 2970 | 93.8 | 0.91 | 92.6 | 0.87 | 92.2 | 0.83 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-315S-2 | 150 | 110 | 195 | 2980 | 94.0 | 0.91 | 93.1 | 0.87 | 93.0 | 0.83 | 1.6 | 7.0 | 2.2 | |||||||||||
Y2-315M-2 | 180 | 132 | 233 | 2980 | 94.5 | 0.91 | 93.2 | 0.87 | 93.1 | 0.84 | 1.6 | 7.1 | 2.2 | |||||||||||
Y2-315L1-2 | 220 | 160 | 279 | 2980 | 94.6 | 0.92 | 93.1 | 0.88 | 93.3 | 0.85 | 1.6 | 7.2 | 2.2 | |||||||||||
Y2-315L2-2 | 270 | 200 | 348 | 2980 | 94.8 | 0.92 | 94.0 | 0.88 | 93.8 | 0.85 | 1.6 | 7.3 | 2.2 | |||||||||||
Y2-355M-2 | 340 | 250 | 433 | 2980 | 95.3 | 0.92 | 94.8 | 0.88 | 94.0 | 0.85 | 1.6 | 7.4 | 2.2 | |||||||||||
Y2-355L-2 | 430 | 315 | 544 | 2980 | 95.6 | 0.92 | 95.0 | 0.88 | 94.0 | 0.85 | 1.6 | 7.5 | 2.2 | |||||||||||
380V 5OHz Synchronous Speed 1500r/min (4 Poles) | ||||||||||||||||||||||||
Y2-631-4 | 0.16 | 0.12 | 0.42 | 1310 | 57.0 | 0.72 | 56.1 | 0.69 | 51.9 | 0.55 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-632-4 | 0.25 | 0.18 | 0.62 | 1310 | 60.0 | 0.73 | 58.5 | 0.70 | 56.7 | 0.59 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-711-4 | 0.34 | 0.25 | 0.79 | 1330 | 65.0 | 0.74 | 62.4 | 0.73 | 59.3 | 0.59 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-712-4 | 0.5 | 0.37 | 1.12 | 1330 | 67.0 | 0.75 | 65.3 | 0.74 | 60.1 | 0.63 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-801-4 | 0.75 | 0.55 | 1.57 | 1390 | 71.0 | 0.75 | 69.2 | 0.74 | 68.6 | 0.64 | 2.4 | 5.2 | 2.3 | |||||||||||
Y2-802-4 | 1 | 0.75 | 2.03 | 1390 | 73.0 | 0.76 | 71.7 | 0.75 | 70.0 | 0.67 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-90S-4 | 1.5 | 1.1 | 2.89 | 1400 | 75.0 | 0.77 | 73.1 | 0.75 | 72.0 | 0.67 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-90L-4 | 2 | 1.5 | 3.7 | 1400 | 78.0 | 0.79 | 76.1 | 0.76 | 74.1 | 0.69 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-100L1-4 | 3 | 2.2 | 5.16 | 1430 | 80.0 | 0.81 | 78.0 | 0.79 | 75.5 | 0.69 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-100L2-4 | 4 | 3 | 6.78 | 1430 | 82.0 | 0.82 | 79.9 | 0.78 | 78.5 | 0.70 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.0 | 0.82 | 82.9 | 0.79 | 81.1 | 0.70 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-132S-4 | 7.5 | 5.5 | 11.7 | 1440 | 85.0 | 0.83 | 83.8 | 0.81 | 82.2 | 0.73 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-132M-4 | 10 | 7.5 | 15.6 | 1440 | 87.0 | 0.84 | 85.6 | 0.82 | 83.6 | 0.74 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-160M-4 | 15 | 11 | 22.3 | 1460 | 88.0 | 0.84 | 86.8 | 0.83 | 85.9 | 0.75 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-160L-4 | 20 | 15 | 30.1 | 1460 | 89.0 | 0.85 | 88.9 | 0.83 | 88.5 | 0.75 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-180M-4 | 25 | 18.5 | 36.5 | 1470 | 90.5 | 0.86 | 90.0 | 0.82 | 89.5 | 0.77 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-180L-4 | 30 | 22 | 43.2 | 1470 | 91.0 | 0.86 | 90.2 | 0.84 | 89.9 | 0.76 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-200L-4 | 40 | 30 | 57.6 | 1470 | 92.0 | 0.86 | 91.5 | 0.84 | 90.8 | 0.77 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-225S-4 | 50 | 37 | 69.9 | 1480 | 92.5 | 0.87 | 91.9 | 0.87 | 90.3 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-225M-4 | 60 | 45 | 84.7 | 1480 | 92.8 | 0.87 | 92.4 | 0.87 | 90.9 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-250M-4 | 75 | 55 | 103 | 1480 | 93.0 | 0.87 | 92.7 | 0.89 | 91.2 | 0.81 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-280S-4 | 100 | 75 | 140 | 1480 | 93.8 | 0.87 | 92.4 | 0.86 | 91.6 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-280M-4 | 125 | 90 | 167 | 1490 | 94.2 | 0.87 | 93.0 | 0.86 | 92.8 | 0.78 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-315S-4 | 150 | 110 | 201 | 1490 | 94.5 | 0.88 | 93.3 | 0.87 | 92.8 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315M-4 | 180 | 132 | 240 | 1490 | 94.8 | 0.88 | 93.8 | 0.87 | 93.0 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315L1-4 | 220 | 160 | 287 | 1490 | 94.9 | 0.89 | 93.9 | 0.88 | 93.1 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315L2-4 | 270 | 200 | 359 | 1490 | 95.0 | 0.89 | 94.1 | 0.88 | 93.8 | 0.82 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-355M-4 | 340 | 250 | 443 | 1485 | 95.3 | 0.90 | 94.3 | 0.88 | 94.0 | 0.83 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-355L-4 | 430 | 315 | 556 | 1485 | 95.6 | 0.90 | 94.5 | 0.89 | 94.0 | 0.84 | 2.1 | 6.9 | 2.2 | |||||||||||
PERFORMANCE CHART | ||||||||||||||||||||||||
Model | Output HP KW | Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
Tstart/Tn | Ist/In | Tmax/Tn | ||||||||||||||||
380V 5OHz Synchronous Speed 1000r/min (6 Poles) | ||||||||||||||||||||||||
Y2-711-6 | 0.25 | 0.18 | 0.74 | 850 | 56.0 | 0.66 | 1.9 | 4.0 | 2.0 | |||||||||||||||
Y2-712-6 | 0.34 | 0.25 | 0.95 | 850 | 59.0 | 0.68 | 1.9 | 4.0 | 2.0 | |||||||||||||||
Y2-801-6 | 0.5 | 0.37 | 1.3 | 890 | 62.0 | 0.70 | 1.9 | 4.7 | 2.0 | |||||||||||||||
Y2-802-6 | 0.75 | 0.55 | 1.79 | 890 | 65.0 | 0.72 | 1.9 | 4.7 | 2.1 | |||||||||||||||
Y2-90S-6 | 1 | 0.75 | 2.29 | 910 | 69.0 | 0.72 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-90L-6 | 1.5 | 1.1 | 3.18 | 910 | 72.0 | 0.73 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-100L-6 | 2 | 1.5 | 3.94 | 940 | 76.0 | 0.75 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-112M-6 | 3 | 2.2 | 5.6 | 940 | 79.0 | 0.76 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-132S-6 | 4 | 3 | 7.4 | 960 | 81.0 | 0.76 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-132M1-6 | 5.5 | 4 | 9.8 | 960 | 82.0 | 0.76 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-132M2-6 | 7.5 | 5.5 | 12.9 | 960 | 84.0 | 0.77 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-160M-6 | 10 | 7.5 | 17 | 970 | 86.0 | 0.77 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-160L-6 | 15 | 11 | 24.2 | 970 | 87.5 | 0.78 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-180L-6 | 20 | 15 | 31.6 | 970 | 89.0 | 0.81 | 2.0 | 7.0 | 2.1 | |||||||||||||||
Y2-200L1-6 | 25 | 18.5 | 38.6 | 970 | 90.0 | 0.81 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-200L2-6 | 30 | 22 | 44.7 | 970 | 90.0 | 0.83 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-225M-6 | 40 | 30 | 59.3 | 980 | 91.5 | 0.84 | 2.0 | 7.0 | 2.1 | |||||||||||||||
Y2-250M-6 | 50 | 37 | 71 | 980 | 92.0 | 0.86 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-280S-6 | 60 | 45 | 86 | 980 | 92.5 | 0.86 | 2.1 | 7.0 | 2.0 | |||||||||||||||
Y2-280M-6 | 75 | 55 | 105 | 980 | 92.8 | 0.86 | 2.1 | 7.0 | 2.0 | |||||||||||||||
Y2-315S-6 | 100 | 75 | 141 | 990 | 93.5 | 0.86 | 2.0 | 7.0 | 2.0 | |||||||||||||||
Y2-315M-6 | 125 | 90 | 168 | 990 | 93.8 | 0.86 | 2.0 | 7.0 | 2.0 | |||||||||||||||
Y2-315L1-6 | 150 | 110 | 206 | 990 | 94.0 | 0.86 | 2.0 | 6.7 | 2.0 | |||||||||||||||
Y2-315L2-6 | 180 | 132 | 244 | 990 | 94.2 | 0.87 | 2.0 | 6.7 | 2.0 | |||||||||||||||
Y2-355M1-6 | 220 | 160 | 282 | 990 | 94.5 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
Y2-355M2-6 | 270 | 200 | 365 | 990 | 94.7 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
Y2-355L-6 | 340 | 250 | 455 | 990 | 94.9 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
380V 5OHz Synchronous Speed 750r/min (8 Poles) | ||||||||||||||||||||||||
Y2-160M1-8 | 5.5 | 4 | 10.3 | 720 | 81.0 | 0.73 | 2.0 | 6.0 | 2.0 | |||||||||||||||
Y2-160M2-8 | 7.5 | 5.5 | 13.6 | 720 | 83.0 | 0.74 | 2.1 | 6.0 | 2.0 | |||||||||||||||
Y2-160L-8 | 10 | 7.5 | 17.8 | 720 | 85.5 | 0.75 | 2.1 | 6.0 | 2.0 | |||||||||||||||
Y2-180L-8 | 15 | 11 | 25.1 | 730 | 87.5 | 0.76 | 2.1 | 6.6 | 2.0 | |||||||||||||||
Y2-200L-8 | 20 | 15 | 34.1 | 730 | 88.0 | 0.76 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-225S-8 | 25 | 18.5 | 40.6 | 730 | 90.0 | 0.76 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-225M-8 | 30 | 22 | 47.4 | 740 | 90.5 | 0.78 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-250M-8 | 40 | 30 | 64 | 740 | 91.0 | 0.79 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-280S-8 | 50 | 37 | 78 | 740 | 91.5 | 0.79 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-280M-8 | 60 | 45 | 94 | 740 | 92.0 | 0.79 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315S-8 | 75 | 55 | 111 | 740 | 92.8 | 0.81 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315M-8 | 100 | 75 | 151 | 740 | 93.0 | 0.81 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315L1-8 | 125 | 90 | 178 | 740 | 93.8 | 0.82 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315L2-8 | 150 | 110 | 217 | 740 | 94.0 | 0.82 | 2.9 | 6.4 | 2.0 |
