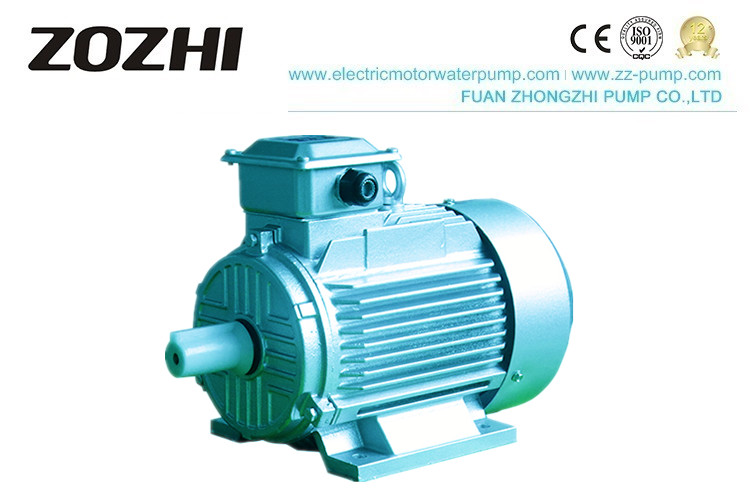

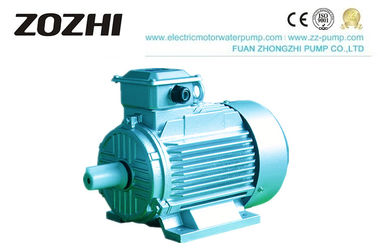

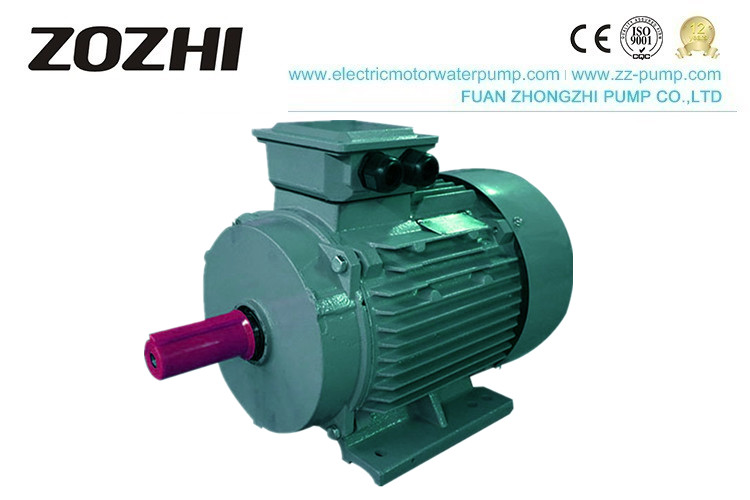

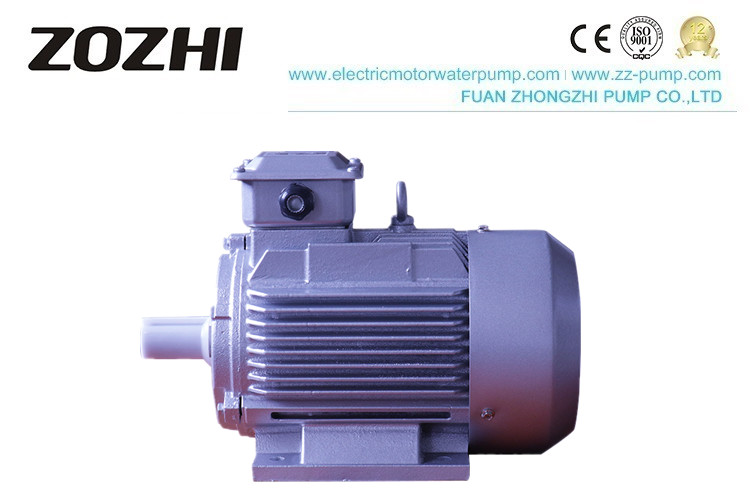

Y2 Series AC 3 Phase Asynchronous Induction Motor Totally Enclosed Fan Cool
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Electric Motor Water Pump | Application | Corn Grits Milling Making Machine |
---|---|---|---|
Power | 30KW /40HP | Pole | 4 |
Phase | 3 Phase | Insulation Classtion Class | F |
Voltage | 380v | Type | Asynchronous Motor |
High Light | electronic water pump,commercial electric water pump |
Y2 Series AC 3 Phase Asynchronous Induction Motor Totally Enclosed Fan Cool
Electric Motor Water Pump
Specifications
1. Y2 series ac 3phase asynchronous induction electric motor with cast iron housing
2. Totally Enclosed Fan Cooled (TEFC) type with squirrel cage
3. 100% copper winding wires, high-quality cold roll silicon steel
4. The dynamically balanced, original structure and attractive appearance
5. High efficiency and power factor, energy-saving
6. Grade of power and mounting measurement is subject to the IEC standard
7. Standardization of mounting dimensions for interchangeability and case of maintenance
8. High starting torque, low noise, easy maintenance, etc.
Our service
1. Directly factory sale
2. Customized production is available
3. Quick response to 2-8hours, response rates over 92%
4. 24 hours phone call is available. Feel free to contact us.
5. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and the sample making. Also, we can advise how to make the products according to customers' target prices.
Performance chart:
Model | Output HP KW | Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
Eff (%) |
Power Factor |
Eff (%) |
Power Factor |
Tstart/Tn | Ist/In | Tmax/Tn | ||||||||||||
380V 5OHz Synchronous Speed 3000r/min (2 Poles) | ||||||||||||||||||||||||
Y2-631-2 | 0.25 | 0.18 | 0.53 | 2720 | 65.0 | 0.80 | 63.1 | 0.75 | 60.0 | 0.69 | 2.2 | 6.5 | 2.3 | |||||||||||
Y2-632-2 | 0.34 | 0.25 | 0.69 | 2720 | 68.0 | 0.81 | 65.1 | 0.76 | 62.0 | 0.70 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-711-2 | 0.5 | 0.37 | 0.99 | 2740 | 70.0 | 0.81 | 69.0 | 0.76 | 66.0 | 0.71 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-712-2 | 0.75 | 0.55 | 1.4 | 2740 | 73.0 | 0.82 | 71.2 | 0.70 | 70.0 | 0.72 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-801-2 | 1 | 0.75 | 1.83 | 2830 | 75.0 | 0.83 | 73.0 | 0.77 | 71.0 | 0.74 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-802-2 | 1.5 | 1.1 | 2.58 | 2830 | 77.0 | 0.84 | 75.1 | 0.78 | 73.0 | 0.73 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-90S-2 | 2 | 1.5 | 3.43 | 2840 | 79.0 | 0.84 | 77.0 | 0.78 | 74.9 | 0.76 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-90L-2 | 3 | 2.2 | 4.85 | 2840 | 81.0 | 0.85 | 80.0 | 0.79 | 79.9 | 0.76 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-100L-2 | 4 | 3 | 6.31 | 2870 | 83.0 | 0.87 | 82.0 | 0.80 | 81.1 | 0.77 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-112M-2 | 5.5 | 4 | 8.1 | 2890 | 85.0 | 0.88 | 83.9 | 0.83 | 82.0 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132S1-2 | 7.5 | 5.5 | 11 | 2900 | 86.0 | 0.88 | 84.2 | 0.83 | 83.8 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132S2-2 | 10 | 7.5 | 14.9 | 2900 | 87.0 | 0.88 | 85.8 | 0.84 | 84.9 | 0.78 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132M1-2 | 15 | 11 | 21.3 | 2930 | 88.0 | 0.89 | 86.6 | 0.84 | 85.1 | 0.79 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132M2-2 | 20 | 15 | 28.8 | 2930 | 89.0 | 0.89 | 87.9 | 0.84 | 86.4 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-160L-2 | 25 | 18.5 | 34.7 | 2930 | 90.0 | 0.90 | 89.8 | 0.86 | 86.8 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-180M-2 | 30 | 22 | 41 | 2940 | 90.0 | 0.90 | 88.9 | 0.86 | 86.8 | 0.82 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-200L1-2 | 40 | 30 | 55.5 | 2950 | 91.2 | 0.90 | 89.4 | 0.85 | 88.5 | 0.81 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-200L2-2 | 50 | 37 | 67.9 | 2950 | 92.0 | 0.90 | 91.0 | 0.86 | 90.4 | 0.82 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-225M-2 | 60 | 45 | 82.3 | 2970 | 92.3 | 0.90 | 90.5 | 0.85 | 89.7 | 0.82 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-250M-2 | 75 | 55 | 101 | 2970 | 92.5 | 0.90 | 91.3 | 0.85 | 91.0 | 0.82 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-280S-2 | 100 | 75 | 134 | 2970 | 93.0 | 0.90 | 91.9 | 0.86 | 91.5 | 0.81 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-280M-2 | 125 | 90 | 160 | 2970 | 93.8 | 0.91 | 92.6 | 0.87 | 92.2 | 0.83 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-315S-2 | 150 | 110 | 195 | 2980 | 94.0 | 0.91 | 93.1 | 0.87 | 93.0 | 0.83 | 1.6 | 7.0 | 2.2 | |||||||||||
Y2-315M-2 | 180 | 132 | 233 | 2980 | 94.5 | 0.91 | 93.2 | 0.87 | 93.1 | 0.84 | 1.6 | 7.1 | 2.2 | |||||||||||
Y2-315L1-2 | 220 | 160 | 279 | 2980 | 94.6 | 0.92 | 93.1 | 0.88 | 93.3 | 0.85 | 1.6 | 7.2 | 2.2 | |||||||||||
Y2-315L2-2 | 270 | 200 | 348 | 2980 | 94.8 | 0.92 | 94.0 | 0.88 | 93.8 | 0.85 | 1.6 | 7.3 | 2.2 | |||||||||||
Y2-355M-2 | 340 | 250 | 433 | 2980 | 95.3 | 0.92 | 94.8 | 0.88 | 94.0 | 0.85 | 1.6 | 7.4 | 2.2 | |||||||||||
Y2-355L-2 | 430 | 315 | 544 | 2980 | 95.6 | 0.92 | 95.0 | 0.88 | 94.0 | 0.85 | 1.6 | 7.5 | 2.2 | |||||||||||
380V 5OHz Synchronous Speed 1500r/min (4 Poles) | ||||||||||||||||||||||||
Y2-631-4 | 0.16 | 0.12 | 0.42 | 1310 | 57.0 | 0.72 | 56.1 | 0.69 | 51.9 | 0.55 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-632-4 | 0.25 | 0.18 | 0.62 | 1310 | 60.0 | 0.73 | 58.5 | 0.70 | 56.7 | 0.59 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-711-4 | 0.34 | 0.25 | 0.79 | 1330 | 65.0 | 0.74 | 62.4 | 0.73 | 59.3 | 0.59 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-712-4 | 0.5 | 0.37 | 1.12 | 1330 | 67.0 | 0.75 | 65.3 | 0.74 | 60.1 | 0.63 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-801-4 | 0.75 | 0.55 | 1.57 | 1390 | 71.0 | 0.75 | 69.2 | 0.74 | 68.6 | 0.64 | 2.4 | 5.2 | 2.3 | |||||||||||
Y2-802-4 | 1 | 0.75 | 2.03 | 1390 | 73.0 | 0.76 | 71.7 | 0.75 | 70.0 | 0.67 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-90S-4 | 1.5 | 1.1 | 2.89 | 1400 | 75.0 | 0.77 | 73.1 | 0.75 | 72.0 | 0.67 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-90L-4 | 2 | 1.5 | 3.7 | 1400 | 78.0 | 0.79 | 76.1 | 0.76 | 74.1 | 0.69 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-100L1-4 | 3 | 2.2 | 5.16 | 1430 | 80.0 | 0.81 | 78.0 | 0.79 | 75.5 | 0.69 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-100L2-4 | 4 | 3 | 6.78 | 1430 | 82.0 | 0.82 | 79.9 | 0.78 | 78.5 | 0.70 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.0 | 0.82 | 82.9 | 0.79 | 81.1 | 0.70 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-132S-4 | 7.5 | 5.5 | 11.7 | 1440 | 85.0 | 0.83 | 83.8 | 0.81 | 82.2 | 0.73 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-132M-4 | 10 | 7.5 | 15.6 | 1440 | 87.0 | 0.84 | 85.6 | 0.82 | 83.6 | 0.74 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-160M-4 | 15 | 11 | 22.3 | 1460 | 88.0 | 0.84 | 86.8 | 0.83 | 85.9 | 0.75 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-160L-4 | 20 | 15 | 30.1 | 1460 | 89.0 | 0.85 | 88.9 | 0.83 | 88.5 | 0.75 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-180M-4 | 25 | 18.5 | 36.5 | 1470 | 90.5 | 0.86 | 90.0 | 0.82 | 89.5 | 0.77 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-180L-4 | 30 | 22 | 43.2 | 1470 | 91.0 | 0.86 | 90.2 | 0.84 | 89.9 | 0.76 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-200L-4 | 40 | 30 | 57.6 | 1470 | 92.0 | 0.86 | 91.5 | 0.84 | 90.8 | 0.77 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-225S-4 | 50 | 37 | 69.9 | 1480 | 92.5 | 0.87 | 91.9 | 0.87 | 90.3 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-225M-4 | 60 | 45 | 84.7 | 1480 | 92.8 | 0.87 | 92.4 | 0.87 | 90.9 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-250M-4 | 75 | 55 | 103 | 1480 | 93.0 | 0.87 | 92.7 | 0.89 | 91.2 | 0.81 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-280S-4 | 100 | 75 | 140 | 1480 | 93.8 | 0.87 | 92.4 | 0.86 | 91.6 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-280M-4 | 125 | 90 | 167 | 1490 | 94.2 | 0.87 | 93.0 | 0.86 | 92.8 | 0.78 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-315S-4 | 150 | 110 | 201 | 1490 | 94.5 | 0.88 | 93.3 | 0.87 | 92.8 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315M-4 | 180 | 132 | 240 | 1490 | 94.8 | 0.88 | 93.8 | 0.87 | 93.0 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315L1-4 | 220 | 160 | 287 | 1490 | 94.9 | 0.89 | 93.9 | 0.88 | 93.1 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315L2-4 | 270 | 200 | 359 | 1490 | 95.0 | 0.89 | 94.1 | 0.88 | 93.8 | 0.82 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-355M-4 | 340 | 250 | 443 | 1485 | 95.3 | 0.90 | 94.3 | 0.88 | 94.0 | 0.83 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-355L-4 | 430 | 315 | 556 | 1485 | 95.6 | 0.90 | 94.5 | 0.89 | 94.0 | 0.84 | 2.1 | 6.9 | 2.2 | |||||||||||
PERFORMANCE CHART | ||||||||||||||||||||||||
Model | Output HP KW | Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
Tstart/Tn | Ist/In | Tmax/Tn | ||||||||||||||||
380V 5OHz Synchronous Speed 1000r/min (6 Poles) | ||||||||||||||||||||||||
Y2-711-6 | 0.25 | 0.18 | 0.74 | 850 | 56.0 | 0.66 | 1.9 | 4.0 | 2.0 | |||||||||||||||
Y2-712-6 | 0.34 | 0.25 | 0.95 | 850 | 59.0 | 0.68 | 1.9 | 4.0 | 2.0 | |||||||||||||||
Y2-801-6 | 0.5 | 0.37 | 1.3 | 890 | 62.0 | 0.70 | 1.9 | 4.7 | 2.0 | |||||||||||||||
Y2-802-6 | 0.75 | 0.55 | 1.79 | 890 | 65.0 | 0.72 | 1.9 | 4.7 | 2.1 | |||||||||||||||
Y2-90S-6 | 1 | 0.75 | 2.29 | 910 | 69.0 | 0.72 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-90L-6 | 1.5 | 1.1 | 3.18 | 910 | 72.0 | 0.73 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-100L-6 | 2 | 1.5 | 3.94 | 940 | 76.0 | 0.75 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-112M-6 | 3 | 2.2 | 5.6 | 940 | 79.0 | 0.76 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-132S-6 | 4 | 3 | 7.4 | 960 | 81.0 | 0.76 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-132M1-6 | 5.5 | 4 | 9.8 | 960 | 82.0 | 0.76 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-132M2-6 | 7.5 | 5.5 | 12.9 | 960 | 84.0 | 0.77 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-160M-6 | 10 | 7.5 | 17 | 970 | 86.0 | 0.77 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-160L-6 | 15 | 11 | 24.2 | 970 | 87.5 | 0.78 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-180L-6 | 20 | 15 | 31.6 | 970 | 89.0 | 0.81 | 2.0 | 7.0 | 2.1 | |||||||||||||||
Y2-200L1-6 | 25 | 18.5 | 38.6 | 970 | 90.0 | 0.81 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-200L2-6 | 30 | 22 | 44.7 | 970 | 90.0 | 0.83 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-225M-6 | 40 | 30 | 59.3 | 980 | 91.5 | 0.84 | 2.0 | 7.0 | 2.1 | |||||||||||||||
Y2-250M-6 | 50 | 37 | 71 | 980 | 92.0 | 0.86 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-280S-6 | 60 | 45 | 86 | 980 | 92.5 | 0.86 | 2.1 | 7.0 | 2.0 | |||||||||||||||
Y2-280M-6 | 75 | 55 | 105 | 980 | 92.8 | 0.86 | 2.1 | 7.0 | 2.0 | |||||||||||||||
Y2-315S-6 | 100 | 75 | 141 | 990 | 93.5 | 0.86 | 2.0 | 7.0 | 2.0 | |||||||||||||||
Y2-315M-6 | 125 | 90 | 168 | 990 | 93.8 | 0.86 | 2.0 | 7.0 | 2.0 | |||||||||||||||
Y2-315L1-6 | 150 | 110 | 206 | 990 | 94.0 | 0.86 | 2.0 | 6.7 | 2.0 | |||||||||||||||
Y2-315L2-6 | 180 | 132 | 244 | 990 | 94.2 | 0.87 | 2.0 | 6.7 | 2.0 | |||||||||||||||
Y2-355M1-6 | 220 | 160 | 282 | 990 | 94.5 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
Y2-355M2-6 | 270 | 200 | 365 | 990 | 94.7 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
Y2-355L-6 | 340 | 250 | 455 | 990 | 94.9 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
380V 5OHz Synchronous Speed 750r/min (8 Poles) | ||||||||||||||||||||||||
Y2-160M1-8 | 5.5 | 4 | 10.3 | 720 | 81.0 | 0.73 | 2.0 | 6.0 | 2.0 | |||||||||||||||
Y2-160M2-8 | 7.5 | 5.5 | 13.6 | 720 | 83.0 | 0.74 | 2.1 | 6.0 | 2.0 | |||||||||||||||
Y2-160L-8 | 10 | 7.5 | 17.8 | 720 | 85.5 | 0.75 | 2.1 | 6.0 | 2.0 | |||||||||||||||
Y2-180L-8 | 15 | 11 | 25.1 | 730 | 87.5 | 0.76 | 2.1 | 6.6 | 2.0 | |||||||||||||||
Y2-200L-8 | 20 | 15 | 34.1 | 730 | 88.0 | 0.76 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-225S-8 | 25 | 18.5 | 40.6 | 730 | 90.0 | 0.76 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-225M-8 | 30 | 22 | 47.4 | 740 | 90.5 | 0.78 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-250M-8 | 40 | 30 | 64 | 740 | 91.0 | 0.79 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-280S-8 | 50 | 37 | 78 | 740 | 91.5 | 0.79 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-280M-8 | 60 | 45 | 94 | 740 | 92.0 | 0.79 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315S-8 | 75 | 55 | 111 | 740 | 92.8 | 0.81 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315M-8 | 100 | 75 | 151 | 740 | 93.0 | 0.81 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315L1-8 | 125 | 90 | 178 | 740 | 93.8 | 0.82 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315L2-8 | 150 | 110 | 217 | 740 | 94.0 | 0.82 | 2.9 | 6.4 | 2.0 |
Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
