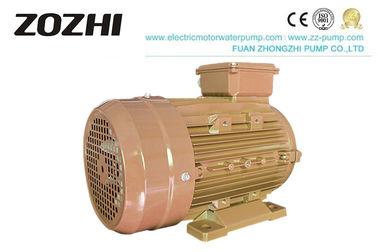

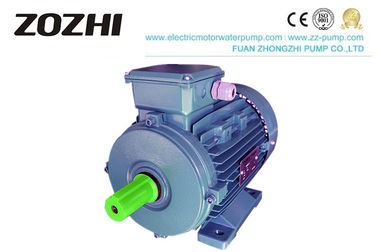

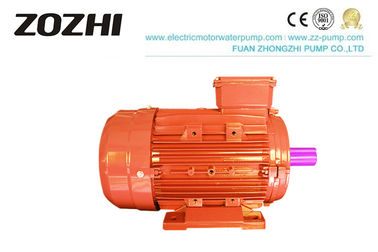

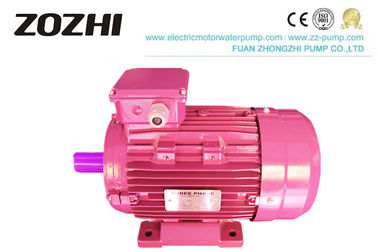

2.2-7.5kw 3 Phase Electric Motor , 380 Volt Electrical Induction Motor 4 Pole

  • 2.2-7.5kw 3 Phase Electric Motor , 380 Volt Electrical Induction Motor 4 Pole
  • 2.2-7.5kw 3 Phase Electric Motor , 380 Volt Electrical Induction Motor 4 Pole
  • 2.2-7.5kw 3 Phase Electric Motor , 380 Volt Electrical Induction Motor 4 Pole
  • 2.2-7.5kw 3 Phase Electric Motor , 380 Volt Electrical Induction Motor 4 Pole
  • 2.2-7.5kw 3 Phase Electric Motor , 380 Volt Electrical Induction Motor 4 Pole
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS802-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C, Western Union, E-checking
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 0.75KW/1HP Pole 4
Motor Bearing C&U (SKF For Choice) Efficiency IE1 IE2 IE3
Motor Housing Aluminum Protection Class IP54/IP55
Insulation Class F Class Color Customizable
High Light

squirrel cage electric motor

,

three phase induction motor
Leave a Message
Product Description

2.2KW 3KW 5.5KW 7.5KW 3 Phase Asynchronous Electric AC Motor 380 Volt

3 Phase Induction Motor



MS series is the up-to-date electric motor with the characteristic of big overload capacity and high mechanical strength, which is specially adequate for driving all sorts of metallurgical machinery and hoisting machines or other similar equipment.



1). The Motor can work well when the altitude does not exceed 1000 meters.
2). The motors possess a better enclosure, degree of protection IP44 for normal site condition, and IP54 from the metallurgical state.
3). YZR series are winding rotor three-phase asynchronous motors for hoisting and metallurgy, complying with JB/T10105-1999 standard. MS series are squirrel cage three-phase asynchronous motors for hoisting and metallurgy, complying with JB/T10104-2011 standard.
4). There are two F and H insulation; Class F is applicable to suit the temperature in which cool air does not exceed 40 under normal conditions. Class H is suitable for metallurgical sites when the ambient temperature is not exceeding 60. Both motors have the same data.
5). Motor's rated voltage and frequency is 380V, 50Hz.




Main Features

Ambient temperature: -15 degrees centigrade ~40 degrees centigrade

Altitude: not more than 1000 meters

Rated voltage: 380V, 400V, 415V, 660V

Rated power: 50HZ, 60HZ

Connection: the rated power is 3KW, and the following Motor is Y connected. The rated power is 4KW, and the Motor is a triangular connection.

Working system: continuous working system (S1)

Protection grade: IP54/IP55

Insulation grade: F grade

Center height of the seat: 80mm-400mm

Product weight: 70Kg-700Kg



Application

2.2-7.5kw 3 Phase Electric Motor , 380 Volt Electrical Induction Motor 4 Pole 0



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5





2.2-7.5kw 3 Phase Electric Motor , 380 Volt Electrical Induction Motor 4 Pole 1



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
water pump PRESSURE SWITCH 2.2-7.5kw 3 Phase Electric Motor , 380 Volt Electrical Induction Motor 4 Pole 7
water pump water pump mechnical seal

2.2-7.5kw 3 Phase Electric Motor , 380 Volt Electrical Induction Motor 4 Pole 11



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
