2 Pole Single Phase Capacitor Run Motor 1400rpm 2800rpm Large Starting Torque

  • 2 Pole Single Phase Capacitor Run Motor 1400rpm 2800rpm Large Starting Torque
  • 2 Pole Single Phase Capacitor Run Motor 1400rpm 2800rpm Large Starting Torque
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number ML100L-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 3KW Pole 2
Frequency 50Hz Insulation Class H
High Light

2 Pole Single Phase Capacitor Run Motor

,

Single Phase Capacitor Run Motor 1400rpm

,

2800rpm Asynchronous Induction Motor
Leave a Message
Product Description

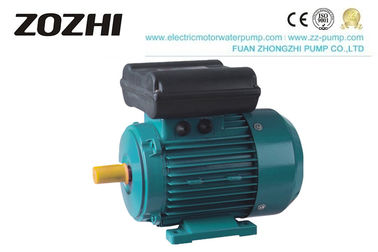

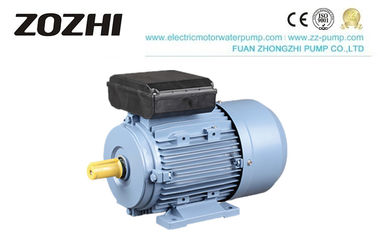

2 Pole Single Phase Capacitor Run Motor 1400rpm 2800rpm Large Starting Torque

Single Phase Induction Motor

ML Series Single-Phase Induction Motor Description



This series of motors have the characteristics of high efficiency and energy saving, large starting torque, strong overload capacity, good running performance, and low noise. Protection class is IP44, with Class B insulation, voltage is 220V, frequency is 50Hz.

-> Installation method:


Type B3--The base has feet and no flanges on the end caps.
Type B34--The base has feet, the end cover has a small flange, and the shaft extends at the flange end.
Type B14--The frame has no feet, the end cover has a small flange, and the shaft extends at the flange end.
Type B5--The frame has no feet, the end cover has a large flange, and the shaft extends at the flange end.
Type B35--The base has feet, the end cover has a large flange, and the shaft extends at the flange end.



ML Series Single-Phase Induction Motor Application

This product is widely used in air compressors, pumps, transportation machinery, mixers, agricultural machinery, food machinery, medical machinery, small machinery, metal cutting machines, and other equipment.

2 Pole Single Phase Capacitor Run Motor 1400rpm 2800rpm Large Starting Torque 0



ML Series Single-Phase Induction Motor Data



Model Power
(KW)
(V)
(A)		 Speed
(r/min)		 Eff.
(%)		 P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110



ML Series Single-Phase Induction Motor Feature

utilize IP 54/IP55
multiple feet locations
aluminum frame, end shields, and base
high strength cable gland
shaft key and protector supplied
superior paint finish
motors made to heavy-duty service factors
can be made with stainless steel shaft
motors made for continuous S1 duty
utilize vacuum impregnated Class B or Class F insulation
others insulation on request
high performance and efficiency





Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and the samples making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
