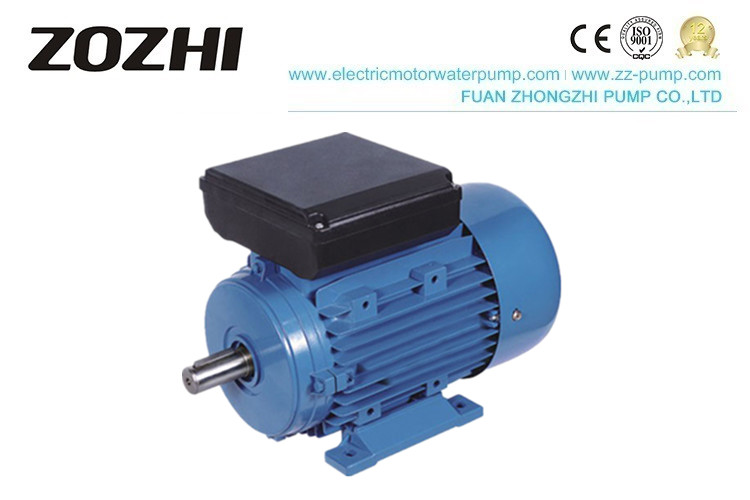

ML Asynchronous Single Phase Induction Motor ISO Double Capacitor

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number ML100L-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Output 3KW
Pole 2 Protection Class IP54
Frequency 50Hz Insulation Class H
High Light

ML Asynchronous Single Phase Induction Motor

,

ISO Single Phase Induction Motor

,

Double Capacitor Asynchronous Induction Motor

Leave a Message
Product Description

Double Capacitor Motor Single Phase Induction Motor ML Asynchronous Motor With Centrifugal Switch

Single Phase Induction Motor

ML Series Single-Phase Induction Motor Description



ML series motors are fully enclosed fan-cooled. The starting torque is more than 3 times at 50Hz and 2.75 times at 60Hz. It uses capacitors to start and run. It focuses on large starting torque and stable rotation. According to the standard design, Manufacture has the advantages of good starting and running performance, low noise, small size, low weight, low-temperature rise, low noise, strong ability to overplant, and so on. Models and data are following IEC standards.



ML series single-value capacitor-started single-phase asynchronous motor has the advantages of similar products in the world, simple structure, reliable operation, convenient maintenance, excellent technical indicators, characteristics of large starting torque, and strong overload capacity. It adopts class B insulation and housing. The protection level is IP44, the cooling method is IC411, the rated voltage is 220V, and the rated frequency is 50Hz. Air compressors, water pumps, washing machines, refrigerators, and mechanical equipment are widely used.



Conditions of Use:

Ambient temperature: -15 ° C

Altitude: Not exceeding 1000m

Rated voltage: 220V

Rated frequency: 50HZ, 60HZ

Protection level: IP44, IP54

Insulation class: B, F

Cooling method: ICO141

Working mode: continuous S1



ML Series Single-Phase Induction Motor Application

ML series aluminum housing motor has good performance and is widely used in electroplating, rice, flour, ceramic, cutting, and other industrial and mechanical industries.

ML Asynchronous Single Phase Induction Motor ISO Double Capacitor 0



ML Series Single-Phase Induction Motor Data



Model Power
(KW)

(V)

(A)
Speed
(r/min)
Eff.
(%)
P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110



ML Series Single-Phase Induction Motor Feature

utilize IP 54/IP55
multiple feet locations
aluminum frame, end shields, and base
high strength cable gland
shaft key and protector supplied
superior paint finish
motors made to heavy-duty service factors
can be made with stainless steel shaft
motors made for continuous S1 duty
utilize vacuum impregnated Class B or Class F insulation
others insulation on request
high performance and efficiency





Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and the samples making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
