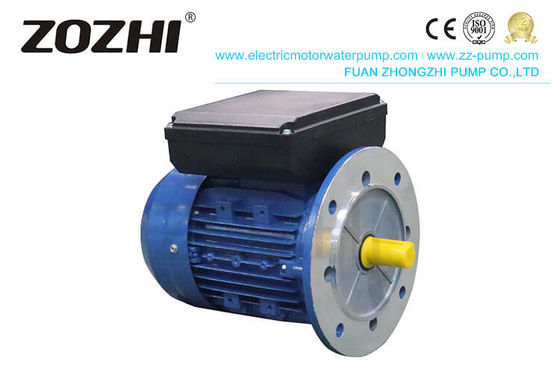

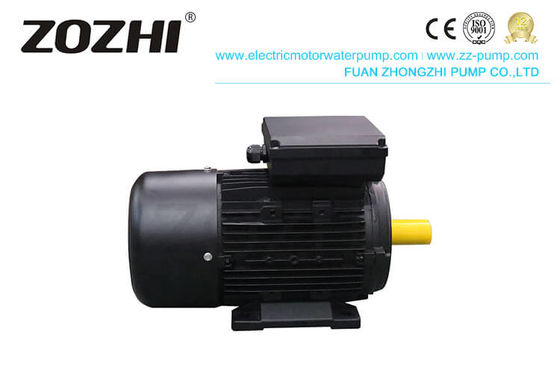

Starting Running Capacitor Electric Motor Single Phase For Lathes Milling Machines

  • Starting Running Capacitor Electric Motor Single Phase For Lathes Milling Machines
  • Starting Running Capacitor Electric Motor Single Phase For Lathes Milling Machines
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number ML100L-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 3KW Pole 2
Protection Class IP54 Frequency 50Hz
Insulation Class H
High Light

Lathes Milling Machines Electric Motor

,

IP54 Capacitor Electric Motor

,

H Insulation Capacitor Electric Motor
Leave a Message
Product Description



Starting / Running Capacitor Electric Motor Single Phase For Lathes Milling Machines

Single Phase Induction Motor

Description



Single-phase aluminum capacitor starter and running motors have excellent operating characteristics. This is because the capacitors in the motor are continuously connected to the capacitor windings. Therefore, they are suitable for applications that work under less severe starting conditions.


Single-phase aluminum housing motor capacitor operation is suitable for machines that require frequent switchings, such as saws machines, lathes, and milling machines.





Single-Phase Induction Motor Data



Model Power
(K.W.)
(V)
(A)		 Speed
(r/min)		 Eff.
(%)		 P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110



Feature

utilize I.P. 54/IP55
multiple feet locations
aluminum frame, end shields, and base
high strength cable gland
shaft key and protector supplied
superior paint finish
motors made to heavy-duty service factors
can be made with stainless steel shaft
motors made for continuous S1 duty
utilize vacuum impregnated Class B or Class F insulation
others insulation on request
high performance and efficiency





Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and the samples making. Also, we can advise how to make the products according to customers' target prices.



AFTER SERVICE KNOWLEDGE POINT:



Analysis of Causes of Heating of Motor Bearings


The bearing system is a very critical quality operation element of motor products. Bearing heating is often the main reason for the collapse of the bearing system. Bearing heating will cause the bearing grease to degrade and fail, resulting in the deformation of the bearing's inner and outer rings and cages. The lighter is the bearing noise problem, and the severer causes the bearing system to be scrapped due to ablation of the entire motor.
For the essential series of motors, the bearing system has relatively few problems, as long as the regular maintenance and maintenance are carried out following the maintenance requirements of the motor. The bearing system has more problems for the motors used in frequency conversion and the low-voltage, high-power, and high-voltage motors. , It can be tricky to solve.
