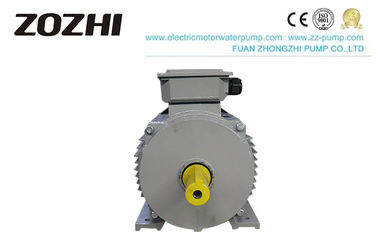

IC411 7.5kw 10Hp 3 Phase Asynchronous Motor Cast Iron Asynchronous Induction Motor

  • IC411 7.5kw 10Hp 3 Phase Asynchronous Motor Cast Iron Asynchronous Induction Motor
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Y2-132M-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Rating 7.5KW/10HP Number Of Poles 4
Enclosure IC411 Type Asynchronous Motor
Insulation Class B / F / H Application General Driving
Product Name Single Phase Induction Motor
High Light

7.5kw 10Hp 3 Phase Asynchronous Motor

,

IC411 3 Phase Asynchronous Motor

,

Cast Iron Asynchronous Induction Motor
Leave a Message
Product Description

7.5kw 10 Hp 3 Phase Electric Motor, Asynchronous Induction Motor Cast Iron

Single Phase Induction Motor

PRODUCT DESCRIPTIONS



The Y2 series electric motor is the three-phase asynchronous electric motor with a fully-enclosed, self-cooled, and squirrel cage type. The power grade and the installation dimension are up to the IEC standard and the DIN42673 standard completely. The insulation grade is F. The outer covering protection grade is IP54. The way of cooling is ICO141.



The electric motor of the Y2 series is the renewal of the products of the series electric motors. They have several improvements than the Y series in protection grade, locked-rotor torque, and contour design, etc. In addition, they come up with advanced word standards of the early 1990s.

The rated voltage of the Y2 series electric motors is 380V. The rated frequency is 50Hz. The way of work is the S1 continuous work system. The terminal box is at the top of the electric motor. It can move at intervals of ninety degrees. It can issue wires from any direction of the front, the back, the left, and the right. The contour dimension and the terminal box at the top are different from the Y series.


THREE-PHASE INDUCTION MOTOR FEATURES



1. Consistent performance



2. Low maintenance



3. Suitable for mounting in any position



4. Easy to operate




OPERATING LIMITS



1. Priming voltage: 380V or any voltage between 220-760V


2. Sea level: not exceed 1000m. If over, the power will be down


3. Environment temperature: -15℃ ≦ 0 ≦ 40℃


4. Protection: IP44 / IP54 / IP55


5. Insulation Class: B / F / H

​

Details



electric motorIC411 7.5kw 10Hp 3 Phase Asynchronous Motor Cast Iron Asynchronous Induction Motor 1​ THE COPPER COILS The coil adopts the new national standard copper wire to ensure the high efficiency, stability, and safe operation of the motor
BEARING Ensure motor service life, high strength carbon steel quality, with good dust-proof effect induction motorIC411 7.5kw 10Hp 3 Phase Asynchronous Motor Cast Iron Asynchronous Induction Motor 1​
Y seriesIC411 7.5kw 10Hp 3 Phase Asynchronous Motor Cast Iron Asynchronous Induction Motor 1​ HIGH PRECISION ROTOR New national standard rotor,multi-precision processing, through rigorous dynamic and static balance test, to ensure smooth operation and low noise



PERFORMANCE CHART

Ist/In Power (A) Power Eff. (%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Synchronous Speed 1500 r/min (4 Poles)
Y2-631-4 0.12 0.44 0.72 57 1400 2.2 4.5 2.2
Y2-632-4 0.18 0.62 0.73 60 1400 2.2 4.5 2.2
Y2-711-4 0.25 0.79 0.74 65 1400 2.2 5.5 2.2
Y2-712-4 0.37 1.12 0.75 67 1400 2.2 5.5 2.2
Y2-801-4 0.55 1.6 0.75 71 1400 2.2 5.5 2.2
Y2-802-4 0.75 2 0.77 73 1400 2.2 6 2.2
Y2-90S-4 1.1 2.9 0.77 750 1400 2.2 6 2.2
Y2-90L-4 1.5 3.7 0.79 78 1400 2.2 6 2.2
Y2-100L1-4 2.2 5.1 0.81 80 1420 2.2 7 2.2
Y2-100L2-4 3 6.8 0.82 82 1420 2.2 7 2.2
Y2-112M-4 4 8.8 0.82 84 1440 2.2 7 2.2
Y2-132S-4 5.5 11.8 0.83 85 1440 2.2 7 2.2
Y2-132M-4 7.5 15.5 0.84 87 1440 2 7 2.2
Y2-160M-4 11 22.3 0.85 88 1460 2 7 2.2
Y2-160L-4 15 30 0.85 89 1460 2 7 2.2
Y2-180M-4 18.5 36.4 0.85 90.5 1470 2.2 7.5 2.2
Y2-180L-4 22 43.1 0.85 91 1470 2.2 7.5 2.2
Y2-200L-4 30 58.4 0.86 92 1470 2.2 7.5 2.2
Y2-225S-4 37 69.9 0.87 92.5 1480 2.2 7.5 2.2
Y2-225M-4 45 84.7 0.87 92.8 1480 2.2 7.5 2.2
Y2-250M-4 55 103 0.89 93 1480 2.2 7 2.2
Y2-280S-4 75 140 0.86 93.8 1480 2.2 7 2.2
Y2-280M-4 90 167 0.86 94.2 1490 2.2 7 2.2
Y2-315S-4 110 201 0.87 94.5 1490 2.1 6.9 2.2
Y2-315M-4 132 240 0.87 94.8 1490 2.1 6.9 2.2
Y2-315L1-4 160 287 0.88 94.9 1490 2.1 6.9 2.2
Y2-315L2-4 200 359 0.88 95 1490 2.3 6.9 2.2
Y2-355M-4 250 443 0.88 95.3 1485 2.3 6.8 2.2
Y2-355L-4 315 556 0.89 95.6 1485 2.2 6.9 2.2




GUARANTEE



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE


1. Directly factory sale.


2. Quick response to 2-8hours, response rates over 92%.


3. 24 hours phone call is available. Feel free to contact us.


4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.




FAQ


1. Q: What’s the MOQ?
    A: We accept one piece.

2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
    A: 1 year.



5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
