Low Noise 3 Phase 6 Pole Induction Motor 0.18-250Kw F Class Y2 Series IEC Standard

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Y2 SERIES
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Rating 0.18-250KW Number Of Poles 6
Enclosure IC411 Type Asynchronous Motor
Insulation Class B / F / H Product Name 3 Phase Induction Motor
Application General Driving
High Light

3 phase asynchronous motor

,

squirrel cage electric motor

Leave a Message
Product Description

Y2 Series IEC standard low noise Three-Phase Induction Motor 6pole 0.18-250Kw F-class

3 Phase Induction Motor



PRODUCT DESCRIPTIONS



The Y2 series three-phase motor adopts the latest technology and design and conforms to the IEC standard. The stator core and the rotor core are made of silicon steel plate, entire copper coil, high-quality material structure, F-class insulation, high torque, safe and reliable operation, beautiful appearance, excellent performance, convenient maintenance, low-temperature rise, low noise, strong overload capability, etc. advantage.



1. The standard working condition of the motor is - 20 ° C to + 40 ° C, 1000 meters above sea level.
2. Grounding device or temporary grounding device to avoid electric shock
2. Do not move with power. You must turn off the power first
3. Troubleshooting must be powered off



APPLICATIONS



The electric motor is suitable for all kinds of machinery, such as pumps, transportation machinery, fans, mixers, food machinery, engineering machinery, packaging machinery, compressors, forging machinery, etc.

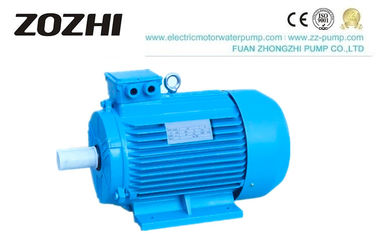

Low Noise 3 Phase 6 Pole Induction Motor 0.18-250Kw F Class Y2 Series IEC Standard 0

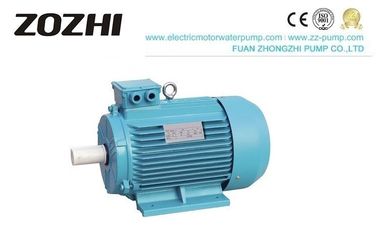

Low Noise 3 Phase 6 Pole Induction Motor 0.18-250Kw F Class Y2 Series IEC Standard 1




THREE-PHASE INDUCTION MOTOR FEATURES



1. Consistent performance



2. Low maintenance



3. Suitable for mounting in any position



4. Easy to operate




OPERATING LIMITS



1. Priming voltage: 380V or any voltage between 220-760V


2. Sea level: not exceed 1000m. If over, the power will be down


3. Environment temperature: -15℃ ≦ 0 ≦ 40℃


4. Protection: IP44 / IP54 / IP55


5. Insulation Class: B / F / H

Details



electric motorLow Noise 3 Phase 6 Pole Induction Motor 0.18-250Kw F Class Y2 Series IEC Standard 3 THE COPPER COILS The coil adopts the new national standard copper wire to ensure the high efficiency, stability, and safe operation of the motor
BEARING Ensure motor service life, high strength carbon steel quality, with good dust-proof effect induction motorLow Noise 3 Phase 6 Pole Induction Motor 0.18-250Kw F Class Y2 Series IEC Standard 3
Y seriesLow Noise 3 Phase 6 Pole Induction Motor 0.18-250Kw F Class Y2 Series IEC Standard 3 HIGH PRECISION ROTOR New national standard rotor,multi-precision processing, through rigorous dynamic and static balance test, to ensure smooth operation and low noise



PERFORMANCE CHART

Ist/In Power (A) Power Eff. (%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Synchronous Speed 1000 r/min (6 Poles)
Y2-711-6 0.18 0.74 0.66 56 900 2.2 4 2.2
Y2-712-6 0.25 0.94 0.68 59 900 2 4 2.2
Y2-801-6 0.37 1.3 0.7 62 900 2 5 2.2
Y2-802-6 0.55 1.8 0.72 65 900 2 5 2.2
Y2-90S-6 0.75 2.3 0.72 69 910 2 5.5 2.2
Y2-90L-6 1.1 3.2 0.73 72 910 2 5.5 2.2
Y2-100L-6 1.5 3.9 0.75 76 940 2 5.5 2.2
Y2-112M-6 2.2 5.6 0.76 79 940 2 6.5 2.2
Y2-132S-6 3 7.4 0.76 81 960 2 6.5 2.2
Y2-132M1-6 4 9.7 0.76 82 960 2 6.5 2.2
Y2-132M2-6 5.5 12.9 0.77 84 960 2 6.5 2
Y2-160M-6 7.5 16.5 0.77 86 970 2 6.5 2
Y2-160L-6 11 24.1 0.78 87.5 970 2 6.5 2
Y2-180L-6 15 31.5 0.81 89 970 2 7 2
Y2-200L1-6 18.5 38.5 0.81 90 970 2 7 2
Y2-200L2-6 22 44.6 0.83 90 970 2 7 2
Y2-225M-6 30 59.3 0.84 91.5 980 2 7 2
Y2-250M-6 37 71 0.86 92 965 2 7 2
Y2-280S-6 45 86 0.86 92.5 980 2 7 2
Y2-280M-6 55 105 0.86 92.8 980 2 7 2
Y2-315S-6 75 141 0.86 93.5 990 2 7 2
Y2-315M-6 90 169 0.86 93.8 990 2 7 2
Y2-315L1-6 110 206 0.86 94 990 2 6.7 2
Y2-315L2-6 132 244 0.87 94.2 990 2 6.7 2
Y2-355M1-6 160 292 0.88 94.5 990 1.9 6.7 2
Y2-355M2-6 200 365 0.88 94.7 990 1.9 6.7 2
Y2-355L-6 250 455 0.88 94.9 990 1.9 6.7 2




3 Phase Induction Motor GUARANTEE



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE


1. Directly factory sale.


2. Quick response to 2-8hours, response rates over 92%.


3. 24 hours phone call is available. Feel free to contact us.


4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
