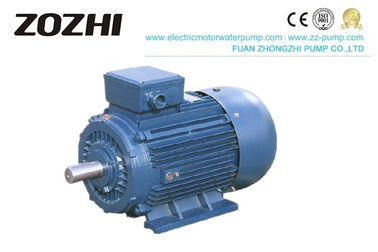

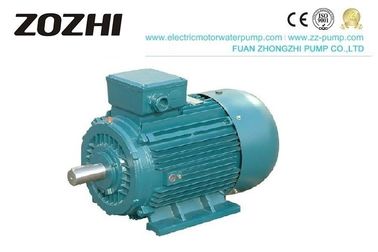

2 Pole 3 Phase Synchronous Motor 0.18-315Kw Y2 Series Low Temp Fully Enclosed

  • 2 Pole 3 Phase Synchronous Motor 0.18-315Kw Y2 Series Low Temp Fully Enclosed
  • 2 Pole 3 Phase Synchronous Motor 0.18-315Kw Y2 Series Low Temp Fully Enclosed
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Y2 SERIES
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Rating 0.18-315KW Number Of Poles 2
Enclosure IC411 Type Asynchronous Motor
Insulation Class B / F / H Product Name 3 Phase Induction Motor
Application General Driving
High Light

3 phase asynchronous motor

,

squirrel cage electric motor
Leave a Message
Product Description

Y2 Series Three-Phase Induction Motor 2pole 0.18-315Kw with low-temperature, low noise

3 Phase Induction Motor



PRODUCT DESCRIPTIONS



The Y2 series motor is rated at 380V. The rated frequency is 50Hz. The electric motor is a fully enclosed, self-cooling, squirrel-cage three-phase asynchronous motor. The power rating and mounting dimensions are fully compliant with IEC and DIN 42673 standards. The insulation rating is F. The enclosure protection rating is IP54. The cooling method is ICO141. The working mode is the S1 continuous working system. The junction box is located on the top of the motor. It can be moved at 90-degree intervals. It can wire from any direction in front, back, left, and right. The top outline size and junction box are different from the Y series.



APPLICATIONS



It concentrates on the advantages of large starting torque, stable operation, low-temperature rise, low noise, and good overload performance. These motors are widely used in small machinery, medical equipment, household appliances, fans, machinery, instrumentation, chemical instrumentation, textiles, agricultural machinery, and so on.

three-phase induction motor

three-phase induction motor




THREE-PHASE INDUCTION MOTOR FEATURES



1. Consistent performance



2. Low maintenance



3. Suitable for mounting in any position



4. Easy to operate




3 Phase Induction Motor OPERATING LIMITS



1. Priming voltage: 380V or any voltage between 220-760V


2. Sea level: not exceed 1000m. If over, the power will be down


3. Environment temperature: -15℃ ≦ 0 ≦ 40℃


4. Protection: IP44 / IP54 / IP55


5. Insulation Class: B / F / H

​

Details



electric motor2 Pole 3 Phase Synchronous Motor 0.18-315Kw Y2 Series Low Temp Fully Enclosed 3​ THE COPPER COILS The coil adopts the new national standard copper wire to ensure the high efficiency, stability, and safe operation of the motor
BEARING Ensure motor service life, high strength carbon steel quality, with good dust-proof effect induction motor2 Pole 3 Phase Synchronous Motor 0.18-315Kw Y2 Series Low Temp Fully Enclosed 3​
Y series2 Pole 3 Phase Synchronous Motor 0.18-315Kw Y2 Series Low Temp Fully Enclosed 3​ HIGH PRECISION ROTOR New national standard rotor,multi-precision processing, through rigorous dynamic and static balance test, to ensure smooth operation and low noise



PERFORMANCE CHART

Ist/In Power (A) Power Eff. (%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Synchronous Speed 3000 r/min (2 Poles)
Y2-631-2 0.18 0.52 0.8 65 2825 2.2 5.5 2.2
Y2-362-2 0.25 0.69 0.81 68 2840 2.2 5 2.2
Y2-711-2 0.37 0.99 0.82 70 2840 2.2 6 2.2
Y2-712-2 0.55 1.4 0.83 73 2880 2.2 6 2.2
Y2-801-2 0.75 1.8 0.84 75 2890 2.2 6 2.2
Y2-802-2 1.1 2.6 0.84 77 2900 2.2 7 2.2
Y2-90S-2 1.5 3.4 0.85 79 2900 2.2 7 2.2
Y2-90L-2 2.2 4.8 0.87 81 29000 2.2 7 2.2
Y2-100L-2 3 6.3 0.88 83 2930 2.2 7 2.2
Y2-112M-2 4 8.1 0.88 85 2930 2.2 8 2.2
Y2-132S1-2 5.5 11 0.88 86 2940 2.2 8 2.2
Y2-132S2-2 7.5 15 0.88 87 2950 2.2 8 2.2
Y2-160M1-2 11 21.3 0.89 88 2950 2 8 2.2
Y2-160M2-2 15 28.7 0.9 89 2970 2 8 2.2
Y2-160L-2 18.5 34.6 0.9 90 2970 2 8 2.2
Y2-180M-2 22 40.9 0.9 90 2970 2 8 2.2
Y2-200L1-2 30 55.4 0.9 91.2 2970 2 8 2.2
Y2-200L2-2 37 67.7 0.9 92 2980 2 8 2.2
Y2-225M-2 45 82.3 0.9 92.3 2980 1.8 8 2.2
Y2-250M-2 55 101 0.9 92.5 2980 1.8 7 2.2
Y2-280S-2 75 134 0.9 93 2980 1.8 7 2.2
Y2-280M-2 90 160 0.91 93.8 2980 1.8 7 2.2
Y2-315S-2 110 195 0.91 94 2980 1.8 6.8 2.2
Y2-315M-2 132 233 0.91 94.5 2980 1.8 6.8 2.2
Y2-315L1-2 160 279 0.92 94.6 2980 1.8 6.8 2.2
Y2-315L2-2 200 348 0.92 94.8 2980 1.8 6.8 2.2
Y2-355M1-2 250 433 0.92 95.3 2980 1.6 7 2.2
Y2-355L2-2 315 544 0.92 95.6 2980 1.6 7.1 2.2




3 Phase Induction Motor GUARANTEE



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE


1. Directly factory sale.


2. Quick response to 2-8hours, response rates over 92%.


3. 24 hours phone call is available. Feel free to contact us.


4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.




FAQ


1. Q: What's the MOQ?
    A: We accept one piece.

2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
    A: 1 year.



5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
