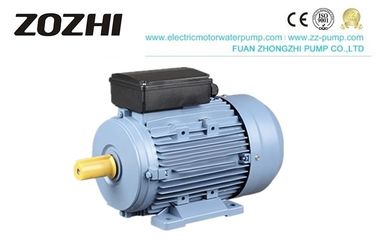

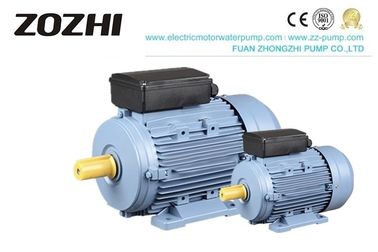

IEC 0.75HP Aluminum Single Phase Induction Motor Low Noise Capacitor Start MC802-2

  • IEC 0.75HP Aluminum Single Phase Induction Motor Low Noise Capacitor Start MC802-2
  • IEC 0.75HP Aluminum Single Phase Induction Motor Low Noise Capacitor Start MC802-2
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MC802-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 0.75HP Pole 2
Protection Class IP54 Frequency 50Hz
Insulation Class H
High Light

0.75HP Aluminum Single Phase Induction Motor

,

IEC Aluminum Single Phase Induction Motor

,

MC802-2 Capacitor Start Induction Motor
Leave a Message
Product Description

Aluminum Housing Single Phase Induction Motor Low Noise Capacitor Start MC802-2 0.75HP

Single Phase Induction Motor

ML Series Single-Phase Induction Motor Description



MC series single-phase capacitor start asynchronous aluminum housing motor adopts the latest international design and is made of high-quality materials. The efficiency index is in line with the IEC standard. MC series motor has excellent performance, safe and reliable operation, beautiful appearance, convenient maintenance, low noise, low vibration, and light-weight. The structure is simple, and so on. This series of motors are a fully enclosed fan-cooled type. The output power is 3Hp and below. The starting torque is more than 3 times at 50Hz at rated voltage, 2.75 times at 60Hz, and the capacitor is started at 4Hp and above. Large torque, stable operation, low-temperature rise, low noise, and strong overload capability.





ML Series Single-Phase Induction Motor Application

The MC series electric motor is compliant with IEC standards and is made from a selection of premium materials. The starting torque of the motor is 2-3 times the rated torque. This is a great utility for home workshops with single-phase power supplies. GF is used in small machine tools, pumps, refrigerators, and many other machines that require full load start-up. Colleagues are also suitable for air compressors, pumps, refrigeration, medical equipment, equipment, and other machinery that need to start a full load.

SINGLE PHASE INDUCTION MOTOR



ML Series Single-Phase Induction Motor Data



Model Output
(V)
(A)		 Speed
(r/min)		 Eff.
(%)		 P.F. Tstart/Tn Tmax/Tn Ist/In(A)
KW HP
MC711-2 0.18 0.25 220 1.89 2800 60 0.72 3.0 1.8 12
MC712-2 0.25 0.34 220 2.40 2800 64 0.74 3.0 1.8 15
MC801-2 0.37 0.5 220 3.36 2800 65 0.77 2.8 1.8 21
MC802-2 0.55 0.75 220 4.65 2800 68 0.79 2.8 1.8 29
MC90S-2 0.75 1 220 6.09 2800 70 0.80 2.5 1.8 37
MC90L-2 1.1 1.5 220 8.68 2800 72 0.80 2.5 1.8 60
MC100L1-2 1.5 2 220 11.38 2900 74 0.81 2.5 1.8 80
MC100L2-2 2.2 3 220 16.48 2900 75 0.81 2.2 1.8 120
MC112M-2 3 4 220 21.88 2900 76 0.82 2.2 1.8 150
MC711-4 0.12 0.16 220 1.88 1400 50 0.58 3.0 1.8 9
MC712-4 0.18 0.25 220 2.49 1400 53 0.62 2.8 1.8 12
MC801-4 0.25 0.34 220 3.11 1400 58 0.63 2.8 1.8 15
MC802-4 0.37 0.5 220 4.24 1400 62 0.64 2.5 1.8 21
MC90S-4 0.55 0.75 220 5.49 1400 66 0.69 2.5 1.8 29
MC90L-4 0.75 1 220 6.87 1400 68 0.73 2.5 1.8 37
MC100L1-4 1.1 1.5 220 9.52 1450 71 0.74 2.5 1.8 60
MC100L2-4 1.5 2 220 12.45 1450 73 0.75 2.5 1.8 80
MC112M-4 2.2 3 220 17.78 1450 74 0.76 2.2 1.8 120

SINGLE-PHASE INDUCTION MOTOR





Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
