PM Series Single Phase Peripheral Pump 0.37-0.75KW PM-45 PM-50 PM-60

PM Series Single Phase Peripheral Pump 0.37-0.75KW PM-45 PM-50 PM-60

Peripheral Water Pump

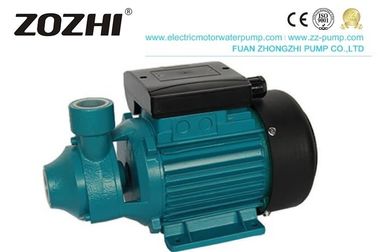

Peripheral Water Pump Description

The PM series electric peripheral water pump is a single-phase water pump that consists of three parts: motor, pump,  and seal. The motor is an asynchronous motor. Turbine brass impeller with tight tolerances between the two cast iron pump faces, the impeller structure is a swirling type, high-quality mechanical seal to prevent leakage. Stainless steel shaft, not easy to rust, 100% copper wire stator core copper wire, make the motor work low temperature, stable, long working life, with thermal protector, professional temperature protector to ensure the safe use of the motor. These have Small size, light-weight, compact structure, easy installation, high efficiency, energy-saving, safety, and so on. Suitable for treating clean water without abrasive particles and fluids that are not chemically corrosive to pump components. It has various appearances and casings to meet different operational requirements and can be widely used for water delivery. Its typical use is from households or small businesses from wells or ponds to left water. The vortex water pump is also suitable for pressurized water supply, gardening water, or other Components together form an automatic water supply system.

Peripheral Water Pump Application

The peripheral water pump has been used extensively for hundreds of years, where clean water needs to be moved under good pressure. Peripheral water pump for water transfer, booster pump automatic fire system, and cooling tower application in fire protection system. Automatic fire extinguishing systems, small air conditioning systems, or ancillary equipment are also suitable for small household water supply and water storage tanks, watering the garden, automatically dispensing water, and increasing easing insufficient tap water pressure.

Peripheral Water Pump Data ( 220V/50HZ )

Peripheral Water Pump Construction

Pump
Pump Body: Cast iron/Brass/Stainless steel
Impeller: Brass
Mechanical Seal: Carbon
Frant Cover: Cast iron/Cast iron with a brass insert/Stainless steel


Motor
Single Phase
Heavy-Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
Construction and safety standards in compliance with IEC

220V/50HZ.60HZ 110V/50HZ.60HZ 220v.110v/50hz.60hz are available on request.

Peripheral Water Pump Use Precautions:

These vortex water pumps should be installed in a covered area, protected against the weather. To operate the pump properly, please use pumping physical or chemical transfer of clean water or other liquids or non-corrosive liquids similar to water, without sand or other impurities.

Max. fluid temperature +60℃

Max. ambient temperature +40℃
Max. solid impurity:0.1%,Max. particle size: 0.2mm.

STRUCTURAL CHARACTERISTICS




Peripheral Water Pump GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

OUR SERVICE

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.
5. Q: What’s the warranty period?
A: 1 year.
