Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K

Place of Origin FUAN
Brand Name ZOZHI
Certification CE, ISO9001
Model Number M1K
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Supply Ability 3000000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Standard Size Product Name Mechanical Seal
Feature Rubber Bellows Mechanical Seal Speed 10m/sec
Model Number M1K Application Water Pump;Ruducer
Pressure ≤1.0Mpa Material Type SIC/ INSERTED TC
Working Temp -20~150℃
High Light

alternator generator parts

,

water pump parts

Leave a Message
Product Description

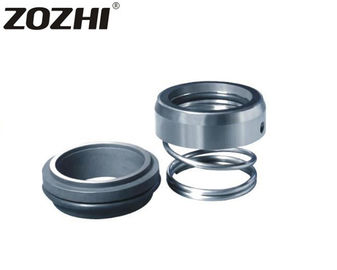

Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K

Mechanical Seal





Design Features

Single face, unbalanced structure and driven by conical spring, another side of closed coil locked on the shaft, spring-wound collected with an axial wound of the pump.

The installation dimensions conform to the standard of GB6556, ISO3069, and DIN24960. Which have a wide application range



Materials(to DIN24960)



Rotary Ring: E, G, Q22, U12
Stationary Ring: B, Q22, U12
Auxiliary Seal: P, E, V
Spring and Other Parts: F, G




Operating limits



Temperature: -20~150℃
Pressure: ≤ 1.0MPa
Speeds: ≤10m/sec
Viscosity: ≤1.0Pa.s (1000cp)(Solt VS Hard)
≤3.5Pa.s (3500cp)(Solt VS Hard)



Applications

Used in clean water, wastewater, submersible, and chemical pumps and equipment



Medium

Oil, water, and other weak corrosive fluid.


Size Information
 michnical seal

Model d1 d3 D4 D6 D7 D8 dm L1 L3 L4 L5 L6 L9
CN M1K-18 18 32.0 34 27 33 3 22 37.5 27.5 10.0 2.0 5.0 12.0
CN M1K-22 22 36.0 38 31 37 3 27 37.5 27.5 10.0 2.0 5.0 12.0
CN M1K-24 24 38.0 40 33 39 3 29 40.0 30.0 10.0 2.0 5.0 12.0
CN M1K-25 25 39.0 41 34 40 3 30 40.0 30.0 10.0 2.0 5.0 12.0
CN M1K-30 30 44.0 46 39 45 3 36 42.5 32.5 10.0 2.0 5.0 12.0
CN M1K-35 35 49.0 51 44 50 3 42 42.5 32.5 10.0 2.0 5.0 12.0
CN M1K-38 38 56.3 58 49 56 4 45 45.0 32.0 13.0 2.0 6.0 14.5
CN M1K-40 40 56.3 60 51 58 4 47 45.0 32.0 13.0 2.0 6.0 14.5
CN M1K-43 43 59.3 63 54 61 4 51 45.0 32.0 13.0 2.0 6.0 14.5
CN M1K-48 48 66.0 68 59 66 4 56 45.5 32.5 13.0 2.0 6.0 14.5
CN M1K-55 55 71.3 75 67 75 4 64 47.5 33.5 14.0 2.5 6.0 15.5
CN M1K-75 75 93.0 104 88 97 4 86 60.0 44.0 16.0 2.5 7.0 16.5
