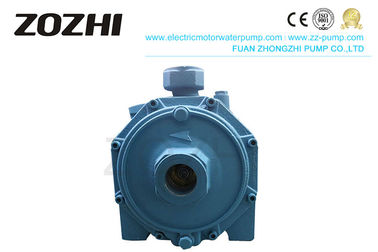

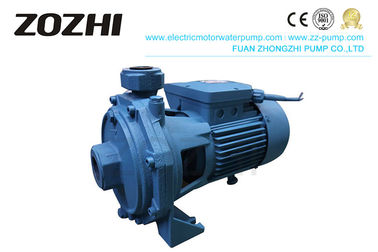

Self Priming Centrifugal Water Pump Double Impeller 3HP 2.2KW Agricultural Hydroponics Type

Place of Origin China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number SCM2-68
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 3HP / 2.2KW Flow Max 150L/Min
Head Max 65M Suction Max 9M
Phase Single Phase/3phase Voltage 220-240v
Type Agricultural Hydroponics Shaft 45#steel/Stainless Steel
Pump Body Cast Iron Product Name Electric Motor Water Pump
High Light

electronic water pump

,

commercial electric water pump

Leave a Message
Product Description

Self Priming Centrifugal Water Pump Double Impeller 3HP 2.2KW Agricultural Hydroponics Type



Electric Motor Water Pump Description:



SCM2 series are with two impellers back to back. Because of two impellers to gain energy, it is obvious that there is a need for high head values but hard to reach with single impeller centrifugal pumps. Suitable for civil and industrial used to pump clean water and chemically non-aggressive liquid. Particularly be used for increasing the supply pressure, feeding boilers, and loading extremely.



Notice: Pumps should be installed in a covered area, protected against the weather.





Operating limitations



Max ambient temperature up to 40°C

Max fluid temperature up to 80°C

Max pressure up to 10 bar



Construction



Pump Body: cast iron

Motor Housing: aluminum

Shaft: 45# Steel /Stainless Steel

Impeller: Brass/Stainless Steel/PPO optional

Motor: closed, externally ventilated

Insulation Class: B/F

Protection Class: IP44/IP54

Duty: continuously rated

Mechanical Seal: ceramic steatite/metalized carbon






scm2 water pumps




TECHNICAL DATA:


Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
SCM2-45 1 / 0.75 5.2 2850 90 40 9 1"x1" 380x210x240 18.8
SCM2-52 1.5 / 1.1 7 2850 105 50 9 1.25"x1" 415x255x320 23.5
SCM2-60 2.0 / 1.5 9.6 2850 130 55 9 1.25"x1" 415x255x320 24.5
SCM2-68 3.0 / 2.2 13.5 2850 150 65 9 1.5"x1.25" 480x290x350 31

Other voltages and frequencies available on request



Self Priming Centrifugal Water Pump Double Impeller 3HP 2.2KW Agricultural Hydroponics Type 1


STRUCTURAL CHARACTERISTICS



Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF, or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction Lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC







Electric Motor Water Pump ADVANTAGE

100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty



Electric Motor Water Pump GUARANTEE


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

OUR SERVICE

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ

1. Q: What’s the MOQ?
    A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.

4.  Q: How can I get the pump?
    A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
    A: 1 year.
