Anti Vibration Rubber Mounts Diesel Generator Sets M12 M14 M16 Diesel Gensets
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xApplication | Generator Rubber Mounts | Color | Silver And Black For Generator Rubber Mounts |
---|---|---|---|
Material | Rubber And Stainless Stell For Generator Rubber Mounts | Shape | Bell Shape Generator Rubber Mounts |
Hole Size | M12 M14 M16 For Generator Rubber Mounts | Function | Generator Rubber Mounts |
Stock Supply | YES | ||
High Light | water pump parts,ac generator parts |

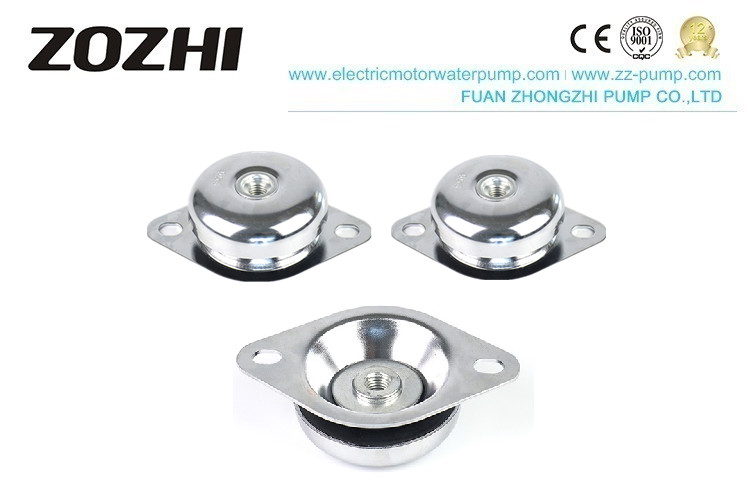

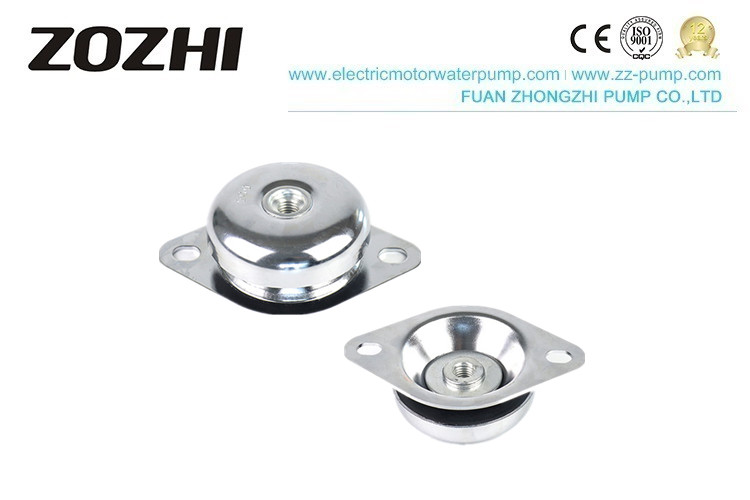

Diesel Gensets Easy Spare Parts Mount Pat Anti-Vibration Mount 100kgs 2000kgs M12, M14, M16 ZOZHI
Description:
This anti-vibration mount is suitable for diesel generator sets, compressors, water pump units, marine units, etc. It is stamped and formed with a 3mm-5mm high-strength steel plate. The metal cover protects the rubber from contact with ozone, UV rays, diesel, or other oils. After the damage is aging, the appearance is elegant and the unit is safe to use. oil-resistant nitrile rubber, good hardness ratio, stable level, effectively reducing vertical pressure and shear. Specially designed for 1500 and 1800 speed diesel engines.
Brand | ZOZHI | Elastic component: | rubber |
Production | Anti-vibration mount | Metal parts: | white galvanized steel sheet UN-ISO 2081 |
Specifications: | 100~2000kg | Applicable environment: | -40 ° C ~ 120 ° C |
use: | ship engine group, diesel generator set, hydraulic machine, etc. | ||
advantages: | shock absorption, anti-skid, wear-resistant, impact-resistant, environmentally friendly |
Application:
Gasoline engines, piston engines, gasoline engines, piston generators, electric motors, generators, compressors, engines, motor pumps, refrigerators, etc.
Characteristics:
Low dynamic coefficient, good anti-vibration effect, small size, low height, stable performance, easy and convenient installation, can be directly placed between the isolated unit and the ground, generally without anchor bolts, no concrete foundation, short construction period, Low investment is the ideal product for domestic power machinery to implement no basic anti-vibration
KG | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) |
100KGS | 70 | 34 | M12 | 75 | 100 | 130 |
200KGS | 95 | 43 | M12,M14,M16 | 100 | 120 | 153 |
300KGS | 100 | 43 | M12,M14,M16 | 100 | 120 | 153 |
400KGS | 100 | 44 | M12,M14,M16 | 108 | 143 | 178 |
500KGS | 100 | 44 | M12,M14,M16 | 108 | 143 | 178 |
600KGS | 122 | 52 | M14,M16 | 125 | 158 | 190 |
800KGS | 150 | 56 | M18,M20 | 151 | 182 | 216 |
1000KGS | 150 | 56 | M18,M20 | 151 | 182 | 216 |
2000KGS | 151 | 58 | M20 | 143 | 130 | 167 |
Thickened steel plate galvanized casing The upper and lower shells of the metal rubber damper are made of stamped steel sheet metal, galvanized on the surface, good in Guanze, and durable. |
|
Oil resistant anti-vibration rubber The metal rubber damper uses an oil-resistant and anti-vibration rubber layer inside, which has strong impact resistance. |
|
Complete product model Metal rubber shock absorbers are available in a full range of models |
|
Multiple installation methods Metal rubber dampers are available in a variety of mounting styles, including flat, side, and side mounts. The transverse stiffness is higher than the longitudinal stiffness, and the lateral stability is good when placed flat. |
