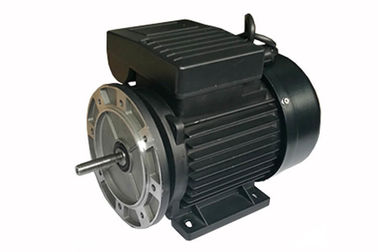

Swimming Pool Pump Single Phase Induction Motor 1.1kw 1.5 Hp Capacitor Running

  • Swimming Pool Pump Single Phase Induction Motor 1.1kw 1.5 Hp Capacitor Running
  • Swimming Pool Pump Single Phase Induction Motor 1.1kw 1.5 Hp Capacitor Running
  • Swimming Pool Pump Single Phase Induction Motor 1.1kw 1.5 Hp Capacitor Running
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MYT801-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application Swimming Pool Pump
Output 1.5HP/1.1KW Pole 2
Efficiency IE1,IE2 Performance High Reliability
Capacitor Type Capacitor Running Phase One Phase
High Light

single phase asynchronous motor

,

single phase electric motor
Leave a Message
Product Description

Swimming Pool Pump Single Phase Induction Motor 1.1kw 1.5 Hp Capacitor Running

Single Phase Induction Motor

single phase induction motor

ZOZHI High-Quality One Phase Ac Induction Motor For 1.1kw 1.5 Hp Pool Pump. This is designed for a swimming pool. They are suitable to transfer high volumes of water (not exceeding 45 degrees ) against the low head.



Specifications

  • Motor model: MYT801-2
  • Power:1.5HP/1.1KW
  • Voltage(V) : 220V /50HZ
  • Protection:IP44/IP54/IP55
  • Insulation Class:B/F/H
  • Ambient temperature:-15℃≦0≦40℃



Swimming Pool Pump Single Phase Induction Motor 1.1kw 1.5 Hp Capacitor Running 1



Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7


single phase induction motor

Swimming Pool Pump Single Phase Induction Motor 1.1kw 1.5 Hp Capacitor Running 3









The pool pump with Zozhi high-quality single phase induction motor is an excellent choice for swimming pools, garden ponds, and spas, serving as a part of the circulation system to keep the water clean.



The see-through filter lid allows you to check whether the strainer filter is whole, and the strainer basket could be quickly taken out from the pump for debris-tipping and cleaning. Thanks to the powerful engine, this pump is highly robust and can work efficiently with little noise.





General data

Frame size 80
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight 8.5 kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M20 × 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
Environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level










Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
