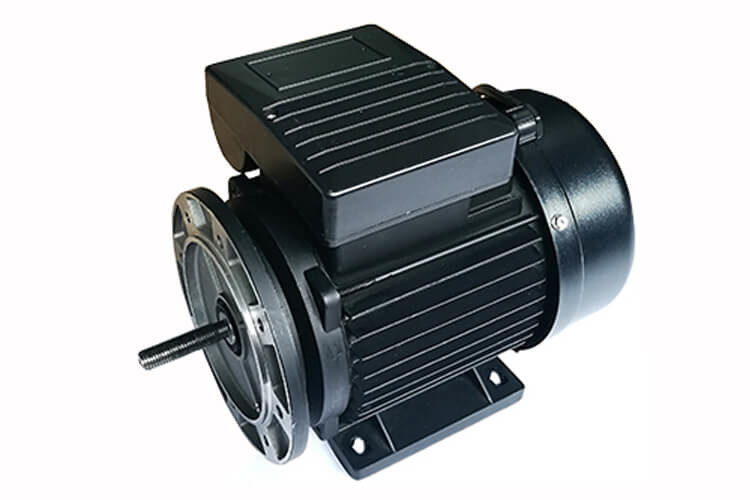

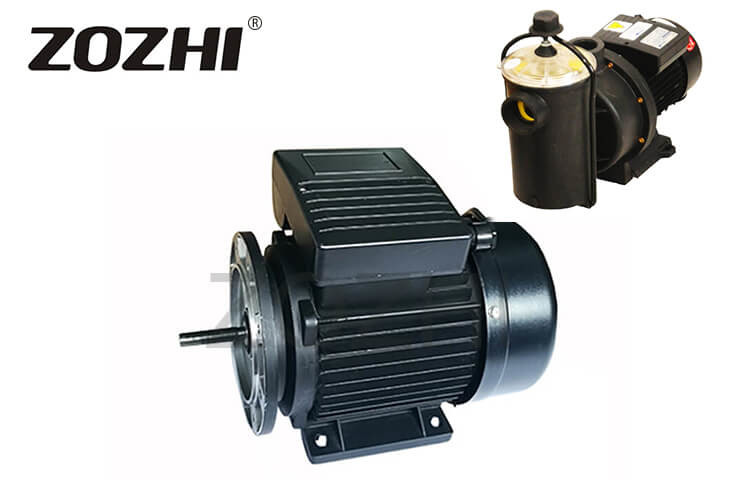

Swimming Pool Pump Single Phase Induction Motor 2HP 1.5KW High Reliability

Swimming Pool Pump Single Phase Induction Motor 2HP 1.5KW High Reliability
Swimming Pool Pump Single Phase Induction Motor 2HP 1.5KW High Reliability
video play

Large Image :  Swimming Pool Pump Single Phase Induction Motor 2HP 1.5KW High Reliability

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: MYT802-2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Single Phase Induction Motor Application: Swimming Pool Pump
Output: 2HP/1.5KW Pole: 2
Efficiency: IE1,IE2 Performance: High Reliability
Capacitor Type: Capacitor Running Phase: One Phase
High Light:

Pump Single Phase Induction Motor

,

Single Phase Induction Motor IE2

,

1.5KW Single Phase Capacitor Motor

Swimming Pool Pump Single Phase Induction Motor 2HP/1.5KW High Reliability

Single Phase Induction Motor

swimming pool pump motor







ZOZHI swimming pool pump motor made in Fuan Fujian China is suitable for regular swimming pool filtering system, which can perform the best function, with high flow and high lift, the heavy-duty high



Ambient temperature:-15℃≦0≦40℃

Protection:IP44/IP54/IP55

Insulation Class: B/F/H

Rated voltage:220V ~240V

Frequeny:50HZ/60HZ

Duty: S1(continuous)

Above sea level: not exceed 1000m

Cooling method: ICO141



swimming pool pump motor

Specifications

swimming pool pump motor



General data

Frame size 80
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight 8.5 kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M20 × 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
Environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level



Application

swimming pool pump motor



Application Suitable for water recirculation and filtration for SPA and hot tubs, trim and
medium-sized swimming pools.
Features The swimming pool pumps are self-priming pumps with a strainer basket at their entrance. This particular design is suitable for filtering swimming pool water. It can remove the dirt from the pool water and keep the water of good quality to filter swimming pool water. It can remove the dirt from the pool water and keep the water of good quality.
Quiet running for household applications
Removable strainer basket for easy cleaning and maintenance
Pump body with high quality durable glass-loaded polypropylene
Built-in thermal protector for single phase motor
Range of Performance Flow rate up to 550L/min
Delivery head up to19.6m
Limits of Use Max ambient temperature up to 40 C
Max fluid temperature up to 40 C
Max working pressure up to 8bar






Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
