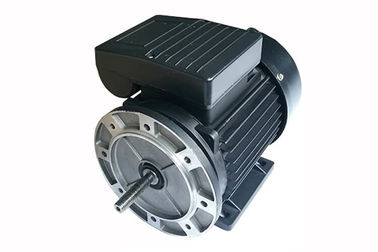

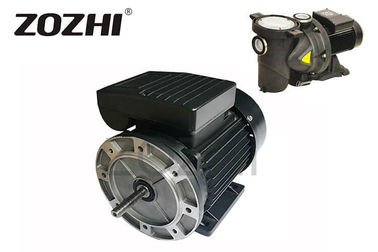

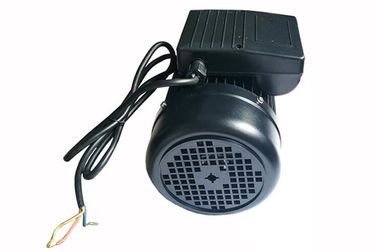

Durable Single Phase Induction Motor 1HP/0.75KW Swimming Pool Pump Motor High Reliability

  • Durable Single Phase Induction Motor 1HP/0.75KW Swimming Pool Pump Motor High Reliability
  • Durable Single Phase Induction Motor 1HP/0.75KW Swimming Pool Pump Motor High Reliability
  • Durable Single Phase Induction Motor 1HP/0.75KW Swimming Pool Pump Motor High Reliability
  • Durable Single Phase Induction Motor 1HP/0.75KW Swimming Pool Pump Motor High Reliability
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MYT712-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application Swimming Pool Pump
Output 1HP/0.75KW Pole 2
Efficiency IE1,IE2 Performance High Reliability
Capacitor Type Capacitor Running Phase One Phase
High Light

single phase electric motor

,

single phase capacitor start motor
Leave a Message
Product Description

Durable Single Phase Induction Motor 1HP/0.75KW Swimming Pool Pump Motor High Reliability

Single Phase Induction Motor



single phase motor



Durable Single Phase Induction Motor 1HP/0.75KW Swimming Pool Pump Motor High Reliability 1



MYT712-2 1HP/0.75KW single Phase aluminum body type induction motor, Used in swimming pool pumps, IEC standard with IP54 protection class, that is 2 pole pool pumps motors, and the speed is 2800rpm.



Ambient temperature:-15℃≦0≦40℃

Protection:IP44/IP54/IP55

Insulation Class: B/F/H

Rated voltage:220V ~240V

Frequency:50HZ/60HZ

Duty: S1(continuous)

Above sea level: not exceed 1000m

Cooling method: ICO141



swimming pool pump motor



single phase induction motor



Durable Single Phase Induction Motor 1HP/0.75KW Swimming Pool Pump Motor High Reliability 4



swimming pool pump motor



General data



Frame size 71
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight 6.95 kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable Glands 1 - M18 × 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
Environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level





Test Data



Output 0.55kW
Frequency 50Hz
Voltage (±5%) 230V Δ @ 50Hz
Rotation speed 2800RPM @ 50Hz
Rated current 3.45A (In) @ Δ 50Hz
Starting current 4.2×In
Rated torque 1.88Nm (Mn)
Starting torque 0.5×Mn
Breakdown torque 1.8×Mn
Efficiency -
73

@ 100% load
@ 75% load
@ 50% load
Power factor cosφ 0.95@ 100% load
Mechanical data
Bearings brand C&UCustomizable(Standard)(Optional)
Bearings type 6202 2RZ C3
6202 2RZ C3(DE)
(NDE)
The lifetime of bearings20000 hours
Allowed radial load
Allowed axial load363 N
283 N
Grease type -
Lubrication interval of NDE bearing
Lubrication interval of DE bearing- h
- h
Moment of inertia 0.000356Kg*m²
Noise level 75dB(A)





Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
