Self Priming Peripheral Water Pump , Electric Water Vortex Pump Single Stage

Place of Origin Fujian China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number IDB-60
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons , overall size:280x145x180mm/pc, N.W.: 5.3kgs
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Theory Vortex Water Pump Structure Single Stage Pump
Power 1.5HP / 1.1KW Flow Max 60 L/Min
Head Max 70M Suction Max 9M
Impeller Brass Speed 2850RPM
Product Name Peripheral Water Pump
High Light

domestic water pump

,

vortex water pump

Leave a Message
Product Description

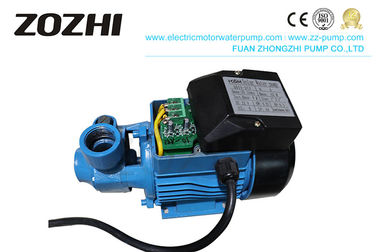

Self Priming Peripheral Water Pump, Electric Water Vortex Pump Single Stage
The IDB series pump is with peripheral impeller containing numerous radial blades on its edge. Water is thrown outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller, generate, high pressure. These pumps have a compact size and are very economical. They have various appearances and motor shells to the different operating requirements.


Peripheral Water Pump




Self Priming Peripheral Water Pump , Electric Water Vortex Pump Single Stage 0

Zhongzhi Peripheral pumps with peripheral impellers can offer high pressure with comparatively low powers and have particularly steady operating curves. And suitable for handling clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.
They are extremely reliable, light, economical, and simple to use. They find many uses in domestic applications, particularly the automatic distribution of water from surge tanks, watering gardens, and boosting insufficient mains water pressure.




TECHNICAL DATA

ModelOutputAR.P.M.Q.MaxH.MaxS.HeadPipe DiaLxWxHN.W.
HP / KW1~220V(l/min)(m)(M)(mm)(Kg)
IDB-350.5 / 0.371.62850353591"x1"280x150x1855.4
IDB-400.75 / 0.553.62850455091"x1"335x180x2009.6
IDB-501 / 0.754.82850505591½ "x1½"335x180x20010.1
IDB-601.5 / 1.16.22850906091½ "x1½"425x200x22021.2

Other voltages and frequencies available on request


Self Priming Peripheral Water Pump , Electric Water Vortex Pump Single Stage 1



STRUCTURAL CHARACTERISTICS


Main SpecificationStandardOptional
Transmission mediumClean Water
Pump bodyCast Iron
ImpellerBrass
Motor housingAluminum
Stator&Rotor1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front coverCast IronBrass plate embedded to avoid impeller jam
BearingChinese Best Quality BearingNSK, SKF, or on request
Mechanical sealGraphene/CeramicSilicon Carbon
ShaftCarbon SteelStainless Steel
InsulationClass BClass F
ProtectionIP44IP54
Voltage220-240V Single PhaseOn Request
Frequency50HZ60HZ
thermal protectionNoYes
Automatic Pressure Control SystemNoYes
Cooling TypeExternal Ventilation
Max. Suction lift9M
Max. Fluid Temperature+60℃
Max. Environment Temperature+40℃
InstallationHorizontal
Connect TypeThread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC




Peripheral Water Pump GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

OUR SERVICE

1. Directly factory sale
2. Quick response TO 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
