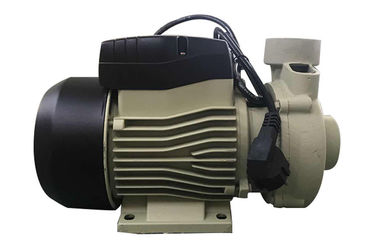

2850RPM Speed High Volume Water Pumps Vortex Casing In Centrifugal Type 1HP 0.75KW
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | CE/SGS/ISO |
Model Number | IDB-50 |
Minimum Order Quantity | 1pc |
Price | negotiated |
Packaging Details | Packed in cartons , overall size:285x150x185mm/pc, N.W.: 5.4kgs |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C |
Supply Ability | 30000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Peripheral Water Pump | Application | Pumping |
---|---|---|---|
Output | 1HP / 0.75KW | Flow Max | 50L/Min |
Head Max | 55M | Suction Max | 9M |
Inlet/Outlet | 1"x1" | Speed | 2850RPM |
High Light | peripheral impeller pump,vortex water pump |
2850RPM Speed High Volume Water Pumps Vortex Casing In Centrifugal Type 1HP 0.75KW
APPLICATIONS
Vortex water pumps can offer high pressure with comparatively low powers and have particularly steady operating curves. They are qualified in domestic fittings to increase the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or hydrosphere units. For the correct function of the pump, use clean water or non-aggressive liquid only, without sand or other solid impurities.
STRUCTURAL CHARACTERISTICS
Main Specification | Standard | Optional |
Transmission medium | Clean Water | |
Pump body | Cast Iron | |
Impeller | Brass | |
Motor housing | Aluminum | |
Stator&Rotor | 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire | |
Front cover | Cast Iron | Brass plate embedded to avoid impeller jam |
Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
Mechanical seal | Graphene/Ceramic | Silicon Carbon |
Shaft | Carbon Steel | Stainless Steel |
Insulation | Class B | Class F |
Protection | IP44 | IP54 |
Voltage | 220-240V Single Phase | On Request |
Frequency | 50HZ | 60HZ |
thermal protection | No | Yes |
Automatic Pressure Control System | No | Yes |
Cooling Type | External Ventilation | |
Max. Suction lift | 9M | |
Max. Fluid Temperature | +60℃ | |
Max. Environment Temperature | +40℃ | |
Installation | Horizontal | |
Connect Type | Thread | |
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |
TECHNICAL DATA
Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
IDB-35 | 0.5 / 0.37 | 1.6 | 2850 | 35 | 35 | 9 | 1"x1" | 285x150x185 | 5.4 |
IDB-40 | 0.75 / 0.55 | 3.6 | 2850 | 45 | 50 | 9 | 1"x1" | 335x180x200 | 9.6 |
IDB-50 | 1 / 0.75 | 4.8 | 2850 | 50 | 55 | 9 | 1"x1" | 335x180x200 | 10.2 |
IDB-60 | 1.5 / 1.1 | 6.2 | 2850 | 60 | 70 | 9 | 1½ "x1½" | 425x200x225 | 22 |
Peripheral Water Pump ADVANTAGE
100% a high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty
Peripheral Water Pump GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ:
1. Q: How about the MOQ?
A: Usually, it is 100 PCS for each model.
2.Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006
3. Q: Can you do OEM?
A: Yes, we can. Any OEMs are welcome!
4. Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5. Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6. Q: How about the warranty?
A: 1 year from shipped on board date.
