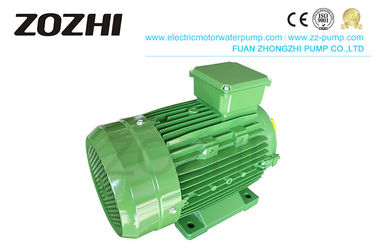

Aluminum Housing High Efficiency Induction Motor IE2 MS132S2-2 7.5KW 10HP

Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number IE2 MS132S2-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name IE2 Motor Output 7.5KW
Voltage 400v 60hz Low Voltage Winding Material 100% Copper Wire
Standard IEC 2 Housing Aluminum
Pole 2 Phase 3 Phase
High Light

high efficiency induction motor

,

three phase induction motor

Leave a Message
Product Description

Aluminum Housing High-Efficiency Induction Motor IE2 MS132S2-2 7.5KW 10HP





IE2 High-Efficiency Motor

With the unique configuration design, it is more close to the style of the European market.



The end shield with the radiating rib makes the appearance good-looking and improves the heat dissipation.



The top terminal box can rotate all round and left or right side-mounted to meet the different requirements of our customers.



It has a particular fan, and the wind path design makes low vibration and low noise.



It uses cold-rolled silicon steel as its magnetic material. The insulating material and insulating process are much improved.


Model Output Voltage Current Speed Eff P.F. Ist/In Tmax/Tn
(V) (A) (r/min) (%)
IE2 MS132S2-2 7.5KW/10HP 230/400 14.35/8.28 2870 87.6 0.860 2.0 2.3

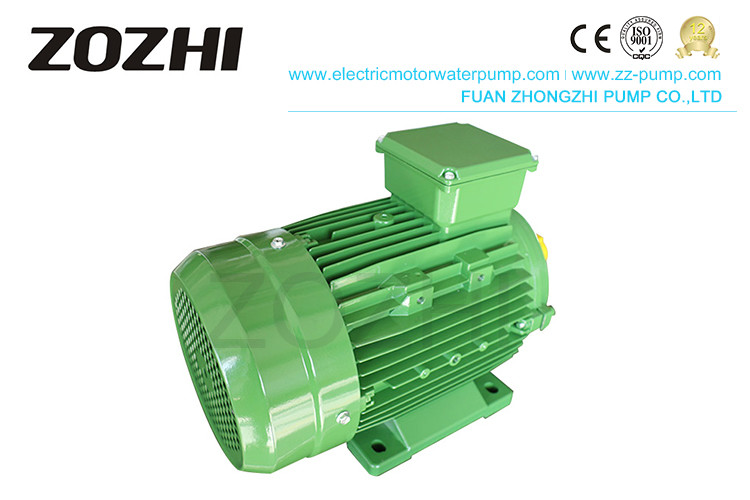

Aluminum Housing High Efficiency Induction Motor IE2 MS132S2-2 7.5KW 10HP 0


IE2 Motor PERFORMANCE CHART:



Aluminum Housing High Efficiency Induction Motor IE2 MS132S2-2 7.5KW 10HP 1

Aluminum Housing High Efficiency Induction Motor IE2 MS132S2-2 7.5KW 10HP 2

Aluminum Housing High Efficiency Induction Motor IE2 MS132S2-2 7.5KW 10HP 3

Performance comparison chart:

ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM
Power(kw) eff2 (nominal) eff1(nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 77.4 80.7
1.1 76.2 82.8 79.6 82.7
1.5 78.5 84.1 81.3 84.2
2.2 81 85.6 83.2 85.9
3.0 82.6 86.7 84.6 97.1
4.0 84.2 87.6 85.8 88.1
5.5 85.7 88.6 87.0 89.2
7.5 87 89.5 88.1 90.1
11 88.4 90.5 89.4 91.2
15 89.4 91.3 90.3 91.9
18.5 90 91.8 90.9 92.4
22 90.5 92.2 91.3 92.7
30 91.4 92.9 92.0 93.3
37 92 93.3 92.5 93.7
45 92.5 93.7 92.9 94.0
55 93 94 93.2 94.3
75 93.6 94.6 93.8 94.7
90 93.9 95 94.1 95.0
110     94.3 95.2
132     94.6 95.4
160     94.8 95.8
200...375     95 95.8

IE2 Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



IE2 Motor OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
