AC Motors Hollow Shaft Electric Motor Hs 712-4 0.37kw 0.5hp High Efficiency 71 Frame
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Hollow Shaft Motor | Application | High Pressure Pump |
|---|---|---|---|
| Output | 0.5HP / 0.37KW | Pole | 4 |
| Flange Size | Hollow Shaft | Ampere | 1.1A |
| Insulation | Class B | Rotation Direction | Clockwise |
| High Light | hollow shaft electric motor,hollow shaft hydraulic motor |
||
Product Description

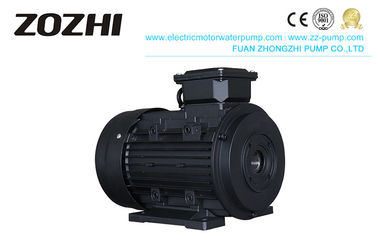

Hs 712-4 0.37kw 0.5hp Hollow Shaft Motor High Efficiency 71 frame A.C. motors
Hollow Shaft Motor DESCRIPTION:
Hs 712-4 0.37Kw 0.5Hp high-quality hollow shaft motor can use in a wide range of automated machineries, such as pressure washers pumps, pressure cleaners, and washing plants.
Hollow Shaft Motor TECHNICAL DATA:
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | |||||
| HS 712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
CATALOG:
APPLICATION:
for pressure washers pumps
for direct mounting to the pump, in just a few minutes
no need to disassemble the motor front side
special executions on request
CONTRAST ADVANTAGE:
- Higher transmission efficiency
- Lower noise
- Easier installation
- Simple maintenance
- And low price.
It is also more durable and has a longer service life.
OPERATING CONDITIONS:
1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request
PRODUCE LINE PICTURE:
|
|
|
|
|
|
|
|
|
Hollow Shaft Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
