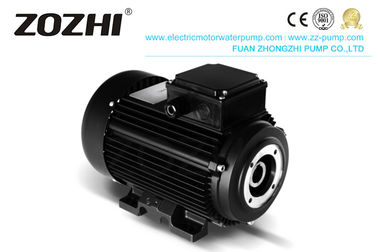

IE2 Hollow Shaft Hydraulic Motor HS90L3-4 2.6KW 3.5HP With Aluminum Housing

Place of Origin CHINA
Brand Name ZOZHI
Certification ISO
Model Number HS 90L3-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Application High Pressure Pump
Output 3.5HP / 2.6KW Pole 4
Flange Size Hollow Shaft Ampere 7.4A
Insulation 4 Rotation Direction Clockwise
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

Leave a Message
Product Description

IE2 Hollow Shaft Hydraulic Motor HS90L3-4 2.6KW 3.5HP With Aluminum Housing


DESCRIPTION:



HS90L3-4 2.6KW 3.5HP with hollow shaft and excellent new materials greatly optimizes the mechanical design, saves design space and production cost, and is widely used in pumps and ventilation equipment. Supercharger equipment, small hydroelectric generators, etc.





Hollow Shaft Motor TECHNICAL DATA:



FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.
H.S. 90L3-4 2.6 3.5 1400 0.8 78 400 7.4





Hollow Shaft Motor CATALOG:



Hollow shaft motor

Hollow shaft motor



APPLICATION:


Hollow shaft motors are widely used for industrial, agricultural, and other commercial applications such as high-pressure pumps, cleaning machines, etc.


CONTRAST ADVANTAGE:


1. Strong structure and easy installation


2. Transmission torque is greater


3. Economic price


4. Reduce noise


5. Installation is more convenient


6. Simple maintenance


7. Corrosion resistance


OPERATING CONDITIONS:



Ambient temperature -15℃≤θ≤60℃
Altitude ≤1000m
Protection class IP54
Insulation class class F
Rated voltage 220V, other voltage on request
Cooling type IC 0141
Duty Continuous(S1)
Rated frequency 50HZ, other frequency on request



PRODUCE LINE PICTURE:


IE2 Hollow Shaft Hydraulic Motor HS90L3-4 2.6KW 3.5HP With Aluminum Housing 2


Hollow Shaft Motor GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
