0.06kw Electric 3 Phase Induction Motor 400V 50HZ 4 Pole Frame 56 TEC Standard

  • 0.06kw Electric 3 Phase Induction Motor 400V 50HZ 4 Pole Frame 56 TEC Standard
  • 0.06kw Electric 3 Phase Induction Motor 400V 50HZ 4 Pole Frame 56 TEC Standard
  • 0.06kw Electric 3 Phase Induction Motor 400V 50HZ 4 Pole Frame 56 TEC Standard
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS561-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power KW 0.06kw Power Hp 0.08hp
Frame 56 Pole 4
Efficiency IE1 Type Asynchronous Motor
Insulation Class F Approvals CE
Product Name 3 Phase Induction Motor
High Light

three phase induction motor

,

squirrel cage electric motor
Leave a Message
Product Description

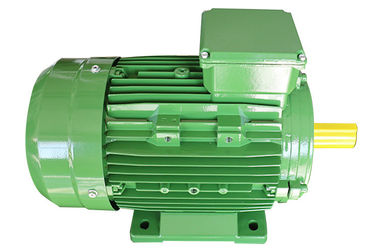

0.06kw Electric Motor 3 Phase Induction Motor 400V 50HZ 4 Pole TEC Standard


3 Phase Induction Motor Description:

This 0.06kw electric motor,  Brand: ZOZHI, has an out speed of 1500 rpm.
Marks: 1500 rpm is the standard speed of the motor. The Hz frequency dictates the output speed, and therefore this motor will also be appropriate to use if your output speed is 1300rpm, 1400rpm, 1425rpm, or 1450rpm or similar.

3 Phase Induction Motor Technical Data:

Model Power   Voltage(V) Frequency (Hz) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn Ist/In
HP KW
MS561-4 0.08 0.06 400 50 0.27 0.5 50 1300 2.2 2.3 5.5


Mechanical Data:


Bearings brand C&UCustomizable(Standard)(Optional)
Bearings type 6201 2RZ C3
6201 2RZ C3(DE)
(NDE)
A Lifetime of bearings20000 hours
Allowed radial load
Allowed axial load328 N
261 N
Grease type -
Lubrication interval of NDE bearing
Lubrication interval of DE bearing- h
- h
Moment of inertia 0.000102Kg*m²
Noise level 58dB(A)


3 Phase Induction Motor Application:

0.06kw 3 Phase induction motors are used in a broad range of industrial, commercial, and residential applications, such as fans, pumps, compressors, elevators, and refrigerators.

3 Phase Induction Motor Advantage:

1) Water, dust, and vermin resistant
2) Quiet operation
3) Electricity Saving
4) Easy installation (bolt-on feet or brackets as required)
5) Corrosion resistant
6) Dependable
7) Superior life

Installation Size:

0.06kw Electric 3 Phase Induction Motor 400V 50HZ 4 Pole Frame 56 TEC Standard 0

Relative Products:(click the picture to check details)

0.06kw Electric 3 Phase Induction Motor 400V 50HZ 4 Pole Frame 56 TEC Standard 1                       0.06kw Electric 3 Phase Induction Motor 400V 50HZ 4 Pole Frame 56 TEC Standard 2                          0.06kw Electric 3 Phase Induction Motor 400V 50HZ 4 Pole Frame 56 TEC Standard 3

     Intelligent Pump                            Big Flow Centrifugal Pump                     CPM Centrifugal Pump



   0.06kw Electric 3 Phase Induction Motor 400V 50HZ 4 Pole Frame 56 TEC Standard 4                   0.06kw Electric 3 Phase Induction Motor 400V 50HZ 4 Pole Frame 56 TEC Standard 5                           0.06kw Electric 3 Phase Induction Motor 400V 50HZ 4 Pole Frame 56 TEC Standard 6


Three Phase Induction Motor         Single Phase Induction Motor                        QB Peripheral Pump


3 Phase Induction Motor GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you A factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.

5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
