Aluminium Housing Single Phase Capacitor Start Induction Motor 2000w 220v 50 Hz MY 90S-2

  • Aluminium Housing Single Phase Capacitor Start Induction Motor 2000w 220v 50 Hz MY 90S-2
  • Aluminium Housing Single Phase Capacitor Start Induction Motor 2000w 220v 50 Hz MY 90S-2
  • Aluminium Housing Single Phase Capacitor Start Induction Motor 2000w 220v 50 Hz MY 90S-2
  • Aluminium Housing Single Phase Capacitor Start Induction Motor 2000w 220v 50 Hz MY 90S-2
  • Aluminium Housing Single Phase Capacitor Start Induction Motor 2000w 220v 50 Hz MY 90S-2
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MY90S-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 2HP / 1.5 KW Pole 2
Efficiency IE1,IE2 Type Asynchronous Motor
Insulation Class B/F/H
High Light

single phase electric motor

,

single phase asynchronous motor
Leave a Message
Product Description



Aluminium Housing Single Phase Capacitor Start Induction Motor 2000w 220v 50 Hz MY 90S-2

DESCRIPTIONS:





MY series motor of mounting dimensions and power level is in line with IEC standards.



For stator coil, we use insulated materials with insulation class F. The complete stator winding cores are vacuum-press-impregnated (VPI) processing, enabling the stator windings to possess high-thermal stability and long life, heat-insulation-moisture resistance IS better. The rotor is made by cast-aluminum technology or copper bar welding, reliable and durable. Housing material is cast iron, strong and durable.





Single Phase Induction Motor ADVANTAGES:



MY series electric motor has the advantages of compact structure, beautiful appearance, high efficiency, low noise, little vibration, reliable operation, easy installation and maintenance, etc.



Single Phase Induction Motor OPERATING LIMITS:



Ambient temperature:-15℃≦0≦40℃ Duty:  S1(continuous)
Protection:IP44/IP54/IP55 Above sea level: not exceed 1000m
Insulation Class: B/F/H Cooling method: ICO141
Rated voltage:380V or any voltage between 220-760V Connection:star-connection for up to 4HP,
Frequency: 50HZ/60HZ delta-connection for 5HP and above.





PERFORMANCE CHART:



Model Power   Voltage(V) Frequency (Hz) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MY631-2 0.25 0.18 220 50 1.62 0.9 56 2800 0.8 1.7
MY632-2 0.33 0.25 2.06 0.92 60 2800 0.8 1.7
MY711-2 0.5 0.37 2.86 0.95 67 2800 0.7 1.7
MY712-2 0.75 0.55 4.05 0.95 70 2800 0.7 1.7
MY801-2 1 0.75 5.07 0.96 72 2800 0.65 1.7
MY802-2 1.5 1.1 7.16 0.97 75 2800 0.6 1.7
MY90S-2 2 1.5 9.57 0.99 76 2800 0.6 1.7
MY631-4 0.16 0.12 1.17 0.9 54 1400 0.9 1.7
MY632-4 0.25 0.18 1.65 0.92 58 1400 0.8 1.7
MY711-4 0.33 0.25 2.04 0.93 62 1400 0.8 1.7
MY712-4 0.5 0.37 2.96 0.93 65 1400 0.7 1.7
MY801-4 0.75 0.55 4.05 0.95 68 1400 0.7 1.7
MY802-4 1 0.75 5.52 0.95 71 1400 0.65 1.7
MY90S-4 1.5 1.1 7.29 0.98 73 1400 0.6 1.7
MY90L-4 2 1.5 7.55 0.99 75 1400 0.6 1.7

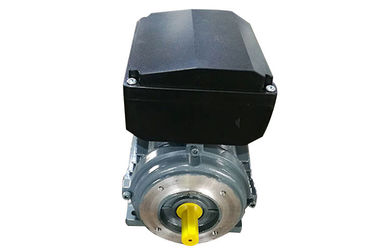

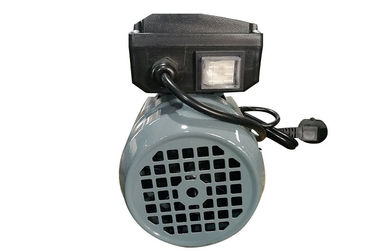

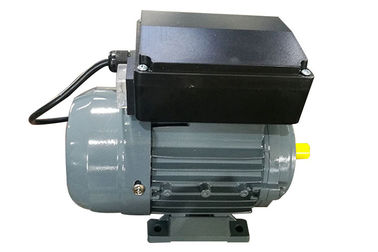

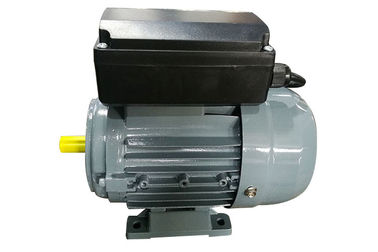

Picture:

electric motor





Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
