Industrial Electrical Induction Motor , Asynchronous Electric Motor 1kw 220v 50Hz MY Series

  • Industrial Electrical Induction Motor , Asynchronous Electric Motor 1kw 220v 50Hz MY Series
  • Industrial Electrical Induction Motor , Asynchronous Electric Motor 1kw 220v 50Hz MY Series
  • Industrial Electrical Induction Motor , Asynchronous Electric Motor 1kw 220v 50Hz MY Series
  • Industrial Electrical Induction Motor , Asynchronous Electric Motor 1kw 220v 50Hz MY Series
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MY801-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 1 HP / 0.75 KW Pole 2
Efficiency IE1,IE2 Type Asynchronous Motor
Insulation Class B/F/H
High Light

single phase electric motor

,

single phase capacitor start motor
Leave a Message
Product Description



Industrial Electrical Induction Motor, Asynchronous Electric Motor 1kw 220v 50Hz MY Series



DESCRIPTIONS:



MY series aluminum housing single-phase asynchronous motor, with the latest design in entirety, are made of selected quality material sand conformed to IEC standard.



Single Phase Induction Motor ADVANTAGES:


MY motor has good performance, safety and reliable operation, nice appearance. Moreover, it can be maintained very conveniently, while with low noises, little vibration, and at the same time light-weight and simple construction. Therefore, these motors can be used for the general drift.



Single Phase Induction Motor OPERATING LIMITS:



Ambient temperature:-15℃≦0≦40℃ Duty:  S1(continuous)
Protection:IP44/IP54/IP55 Above sea level: not exceed 1000m
Insulation Class: B/F/H Cooling method: ICO141
Rated voltage:380V or any voltage between 220-760V Connection:star-connection for up to 4HP,
Frequency: 50HZ/60HZ delta-connection for 5HP and above.





PERFORMANCE CHART:



Model Power   Voltage(V) Frequency (Hz) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MY631-2 0.25 0.18 220 50 1.62 0.9 56 2800 0.8 1.7
MY632-2 0.33 0.25 2.06 0.92 60 2800 0.8 1.7
MY711-2 0.5 0.37 2.86 0.95 67 2800 0.7 1.7
MY712-2 0.75 0.55 4.05 0.95 70 2800 0.7 1.7
MY801-2 1 0.75 5.07 0.96 72 2800 0.65 1.7
MY802-2 1.5 1.1 7.16 0.97 75 2800 0.6 1.7
MY90S-2 2 1.5 9.57 0.99 76 2800 0.6 1.7
MY631-4 0.16 0.12 1.17 0.9 54 1400 0.9 1.7
MY632-4 0.25 0.18 1.65 0.92 58 1400 0.8 1.7
MY711-4 0.33 0.25 2.04 0.93 62 1400 0.8 1.7
MY712-4 0.5 0.37 2.96 0.93 65 1400 0.7 1.7
MY801-4 0.75 0.55 4.05 0.95 68 1400 0.7 1.7
MY802-4 1 0.75 5.52 0.95 71 1400 0.65 1.7
MY90S-4 1.5 1.1 7.29 0.98 73 1400 0.6 1.7
MY90L-4 2 1.5 7.55 0.99 75 1400 0.6 1.7

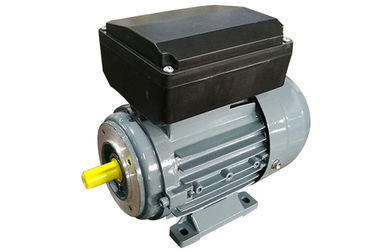

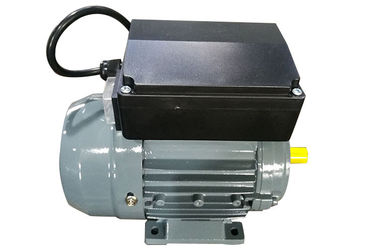

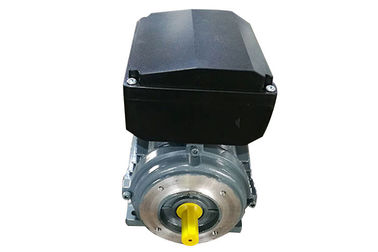

Single Phase Induction Motor Picture:

Industrial Electrical Induction Motor , Asynchronous Electric Motor 1kw 220v 50Hz MY Series 0





Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
