0.5HP Light Weight Single Phase Induction Motor C/U Bearing For Equipment Machine

  • 0.5HP Light Weight Single Phase Induction Motor C/U Bearing For Equipment Machine
  • 0.5HP Light Weight Single Phase Induction Motor C/U Bearing For Equipment Machine
  • 0.5HP Light Weight Single Phase Induction Motor C/U Bearing For Equipment Machine
  • 0.5HP Light Weight Single Phase Induction Motor C/U Bearing For Equipment Machine
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MY711-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application Bore Well Compressor Driving
Output 0.5HP / 0.37KW Pole 2
Flange Size B35 Bearing Model 6202/6202
Insulation Class B Rotation Direction Clockwise
High Light

single phase electric motor

,

single phase capacitor start motor
Leave a Message
Product Description

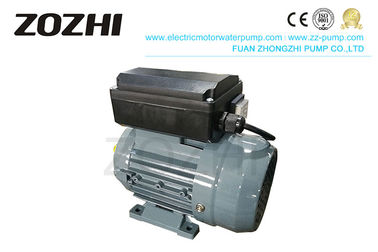

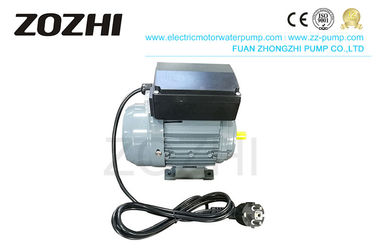

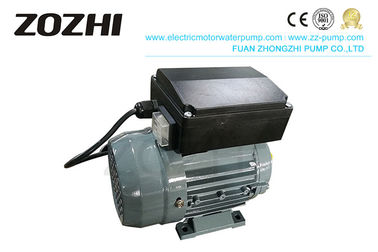

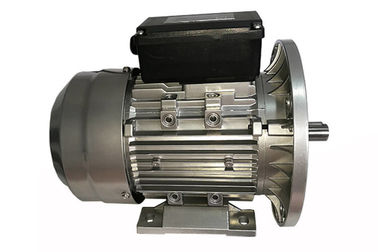

0.5HP Light Weight Single Phase Induction Motor With C&U Bearing For Equipment Machine


DESCRIPTION:

MY single-phase motor is suitable for a common working environment and machinery without the special requirement, like air-compressor, pump, fan, medical apparatus and instruments, small machines, etc. Moreover, our association with renowned brands, including REMI, Crompton Greaves, and ELTEK, has helped us gain the trust and confidence of the customers.

Single Phase Induction Motor TECHNICAL DATA:

Model Power (V) (HZ) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MY711-2 0.5 0.37 220 50 2.86 0.9 67 2800 0.7 1.7


INSTALLATION SIZE AND OVERALL DIMENSION:


Frame No. Installation Size Installation Size For B14 Installation Size For B5 Overall Dimension
A B C D E F G H K M N P S T M N P S T AB AC AD HD L
71 112 90 45 14 30 5 11 71 7 85 70 105 M6 2.5 130 110 160 10 3.5 145 145 125 205 255


single phase motor data
Single Phase Induction Motor PRODUCE LINE PICTURE:

single phase motor

Single Phase Induction Motor APPLICATION:

1. Small Machine

2. Clean Water Pumps

3. For water supply and drainage of urban

4. Conveyors

5. Material Handling

6. Machine Tool

CONTRAST ADVANTAGE:


1. Long service life

2. With sealed bearings

3. Lightweight

4. Low noise

OPERATING CONDITIONS:

1. Ambient temperature: -15℃≤θ≤60℃

2. Altitude: ≤1000m

3. Protection class: IP54

4. Insulation class: class F

5. Rated voltage: 220V, other voltage on request

6. Cooling type: IC 0141

7. Duty: Continuous(S1)

8. Rated frequency: 50HZ, other frequency on request


Single Phase Induction Motor GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.




OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.

5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
