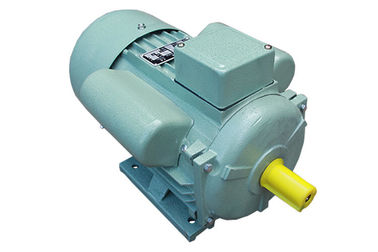

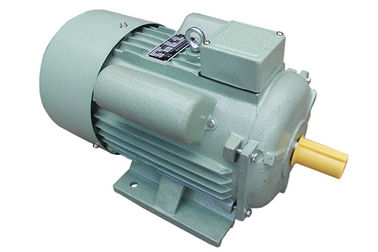

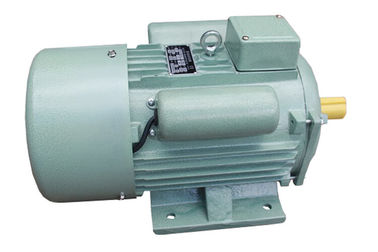

AC Asynchronous Single Phase Electric Motor For Air Compressor 1.5 KW 2 HP

  • AC Asynchronous Single Phase Electric Motor For Air Compressor 1.5 KW 2 HP
  • AC Asynchronous Single Phase Electric Motor For Air Compressor 1.5 KW 2 HP
  • AC Asynchronous Single Phase Electric Motor For Air Compressor 1.5 KW 2 HP
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YC100L-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name Single Phase Induction Motor Power 1.5/2
Phase 1 Ph Current 13.5
Frequency 50 Hz Pole 4
High Light

single phase electric motor

,

single phase asynchronous motor
Leave a Message
Product Description

AC Asynchronous Single Phase Electric Motor For Air Compressor 1.5 KW 2 HP



Single Phase Induction Motor Description:



This series electric motor features high starting performance, overload capability, power factor and efficiency, low noise, lightweight, slight shape, and easy maintenance.



Technical data:



Model

Output

HP         KW

 Voltage
(V)		 Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 T start/Tn Ist/In Tmax/Tn
YC100L-4 2 1.5 220 13.5 1450 72 0.7 2.4 6.5 1.8

                                                                              Other voltages and frequencies available on request

  AC Asynchronous Single Phase Electric Motor For Air Compressor 1.5 KW 2 HP 0



Single Phase Induction Motor Applications:



YC series single-phase capacitor start and capacitor running electric motor are suitable for the air compressor, water pump, and other equipment requiring high torque.



Advantages:



1. Power Saving.
2. Long life.
3. Beautiful appearance.
4. Outstanding performance, easy maintenance.



Working conditions:



Ambient temperature:-15℃＜0＜40℃
Ambient temperature: not exceed 1000 meters
Rated voltage: 220 V
Rated frequency: 50 Hz/60 Hz
Duty/Rating:Continuous(running)
Insulation class: Class B/F



AC Asynchronous Single Phase Electric Motor For Air Compressor 1.5 KW 2 HP 1

AC Asynchronous Single Phase Electric Motor For Air Compressor 1.5 KW 2 HP 2

Single Phase Induction Motor Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:


1). We are happy that the customer has given us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM


FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

One year.
