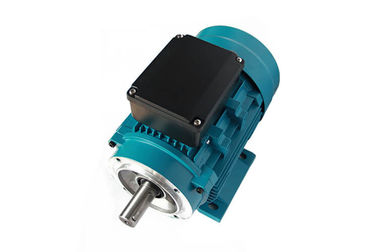

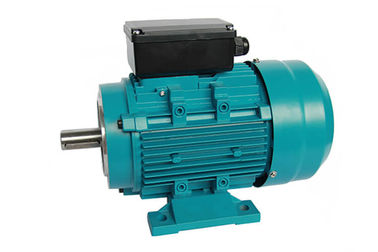

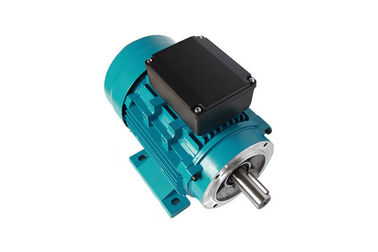

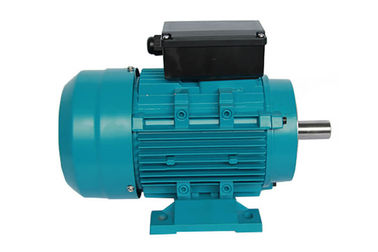

1 Ph 0.5HP 220v 50Hz Single Phase Induction Motor With IEC Standard For Driving Machine

1 Ph 0.5HP 220v 50Hz Single Phase Induction Motor With IEC Standard For Driving Machine
1 Ph 0.5HP 220v 50Hz Single Phase Induction Motor With IEC Standard For Driving Machine 1 Ph 0.5HP 220v 50Hz Single Phase Induction Motor With IEC Standard For Driving Machine 1 Ph 0.5HP 220v 50Hz Single Phase Induction Motor With IEC Standard For Driving Machine 1 Ph 0.5HP 220v 50Hz Single Phase Induction Motor With IEC Standard For Driving Machine

Large Image :  1 Ph 0.5HP 220v 50Hz Single Phase Induction Motor With IEC Standard For Driving Machine

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: MY711-2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Single Phase Induction Motor Phase: 1 Phase
Output: 0.5HP Pole: 2
IM: B35 Frequency: 50Hz
Insulation: Class B Frame: 71#
High Light:

1000m Altitude Single Phase Induction Motor

,

Garden Spraying Single Phase Induction Motor

,

2 Pole Single Phase Synchronous Motor

1 Ph 0.5HP 220v 50Hz Single Phase Induction Motor With IEC Standard For Driving Machine





Single Phase Induction Motor DESCRIPTION:



MY series of electric motors meet VED standards. Quality is the feature of our industry, and to maintain exceptional quality standards, we are immersed in offering a varied collection of single-phase induction motors.

MY single phase electric motor



TECHNICAL DATA:



Model Power (V) (HZ) Current (A) Power Factor Eff(%) Speed (r/min) T start/Tn Tmax/Tn
HP KW
MY711-2 0.5 0.37 220 50 2.86 0.95 67 2800 0.7 1.7



APPLICATION:



1. Drilling Machine



2.  Water pressure boosting



3. Cooling Fans



4. Garden spraying



5. Material Handling Machine



6. Machine Tools



CONTRAST ADVANTAGE:





1.  Strong lifetime



2.  With sealed bearings



3.  Low noise and reliable operation



4.  Easy to operate



OPERATING CONDITIONS:



1. Ambient temperature: -15℃≤θ≤60℃



2. Altitude: ≤1000m



3. Protection class: IP54



4. Insulation class: class F



5. Rated voltage: 220V, other voltage on request



6. Cooling type: IC 0141



7. Duty: Continuous(S1)



8. Rated frequency: 50HZ, other frequency on request



1 Ph 0.5HP 220v 50Hz Single Phase Induction Motor With IEC Standard For Driving Machine 1



Basic Data For Single Phase Motor



No. Brand Name: ZHONGZHI
1 Model Number:  MY
2 Type: Single Phase Induction Motor
3 Structure: AC Asynchronous Motor
4 Place of Origin: Fujian China
5 Insulation Class: Class BF
6 Frequency: 50Hz 60Hz
7 Output Power: 0.5HP
8 Phase: Single Phase
9 Pole: 2P, 4P, 6P
10 Wire: 100% copper
11 Protection Class: IP44/IP54
12 Cooling Method: IC411
13 Duty: S1 (continuous)
14 Certification: ISO, CE, CCC
15 Protect Feature: Enclosed
16 AC Voltage: 110V 220V 230V 240V
17 Ambient temperature: -15°C≤0≤60°C
18 Altitude: No exceed 1000m
19 Mounting Type: B3, B5, B35, B14,B34
20 Standard: Conform to IEC international standard
21 Installation: we will send detailed instructions together with the Motors
22 Packaging Details: Packed with export requirements, protect the motors and be convenient for transport.
23 Delivery Details: 25-30 Days





INSTALLATION SIZE AND OVERALL DIMENSION:



Frame No. Installation Size Installation Size For B14 Installation Size For B5 Overall Dimension
A B C D E F G H K M N P S T M N P S T AB AC AD HD L
71 112 90 45 14 30 5 11 71 7 85 70 105 M6 2.5 130 110 160 10 3.5 145 145 125 205 255

1 Ph 0.5HP 220v 50Hz Single Phase Induction Motor With IEC Standard For Driving Machine 2

Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What's the MOQ?
    A: We accept one piece.

2. Q: Are you a factory or trading company?
    A: We are a  manufacturer.

3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
    A: 1 year.



5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
