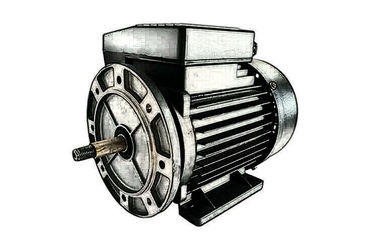

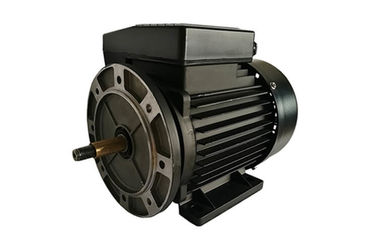

2 Pole Stable Performance Single Phase Capacitor Start Motor 220V 50Hz For Bath Pump

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MYT712-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pool Pump Motor Application Driving For Bath Pump
Output 1 HP / 0.75 KW Pole 2
Efficiency IE1,IE2 Power Factor 0.92
Insulation Class F Terminal Box On Top
High Light

single phase electric motor

,

single phase capacitor start motor

Leave a Message
Product Description

2 Pole Stable Performance Single Phase Induction Motor 220V 50Hz For Bath Pump





Pool Pump Motor DESCRIPTIONS:



MYT712-2 single-phase induction motor backed with the support of experts, we are occupied in providing a flawless series of Swimming Pool Motor Pump to valuable customers.



Pool Pump Motor TECHNICAL DATA:


Model Power   Voltage(V) Frequency (Hz) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MYT712-2 1 0.75 220 50 5.15 0.92 72 2800 0.35 1.7



APPLICATIONS:



MYT series high efficiency single-phase capacitor-run asynchronous aluminum housing motor, Designed for whirlpool bath pump, It is supplied with a pneumatic switch and is suitable for replacing most whirlpool bath pumps with imperial fittings



FEATURES:

  1.  Asynchronous, two poles
  2.  IPX5 waterproof standard
  3.  Overload protector
  4.  Heavy duty with ultra-performance to both high and medium head installations in large-size bath pools
  5.  Materials used are non-corrosive
  6.  Japan NSK bearing
  7.  Ring lock seal design to eliminate suction leaks and to maximize suction efficiency
  8.  External heat sink to ensure maximum cooling capability.



OPERATING LIMITS:



Ambient temperature:-15℃≦0≦40℃

Protection:IP44/IP54/IP55

Insulation Class: B/F/H

Rated voltage:380V or any voltage between 220-760V

Frequency:50HZ/60HZ

Duty: S1(continuous)

Above sea level: not exceed 1000m

Cooling method: ICO141

Connection:star-connection for up to 4HP,

delta-connection for 5HP and above.






Bath Pump:



bath pump

Pool Pump Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.

INFORMATION



Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system in a short time.

(2) currently causes ablation of bearing system components, and heating of bearing components, resulting in a serious failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.
