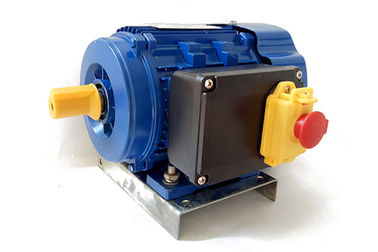

AC Current 2800RPM Single Phase Capacitor Motor With Controller For Machine Tool 1HP

  • AC Current 2800RPM Single Phase Capacitor Motor With Controller For Machine Tool 1HP
  • AC Current 2800RPM Single Phase Capacitor Motor With Controller For Machine Tool 1HP
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MY801-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application Machine Tool Driving
Output 1HP / 0.75KW Pole 2
Voltage 230v Frequency 50Hz
Insulation Class F Speed 2800RPM
High Light

single phase electric motor

,

single phase asynchronous motor
Leave a Message
Product Description



AC Current 2800RPM Single Phase Induction Motor With Controller For Machine Tool 1HP



DESCRIPTION:



MY Series Single Phase Induction Motor is totally enclosed fan-cooled squirrel-cage AC induction motor with high efficiency, long working life, energy-saving, high starting torque, low noise.



Single Phase Induction Motor TECHNICAL DATA:



Model

Power



(V)

(HZ)

Current (A)

Power Factor

Eff(%)

Speed (r/min)

Tstart/Tn

Tmax/Tn

HP

KW

MY801-2

1

0.75

220

50

5.07

0.96

72

2800

0.65

1.7



INSTALLATION SIZE AND OVERALL DIMENSION:



Frame No.

Installation Size

Installation Size For B14

Installation Size For B5

Overall Dimension

A

B

C

D

E

F

G

H

K

M

N

P

S

T

M

N

P

S

T

AB

AC

AD

HD

L

80

125

100

50

19

40

6

15.5

80

10

100

80

120

M6

3

165

130

200

12

3.5

160

165

135

235

295




single phase motor data





APPLICATION:



MY series of single-phase motors are following the latest standard designed to improve the product. Motor shell aluminum cast used in all types of removable bottom feet can transform a variety of installations.


This series motors for light load startup and no special machinery requirements, such as machine tools, air compressors, pumps, fans, medical equipment, home power and small mechanical equipment, and other fields.



OPERATING CONDITIONS:



Ambient temperature -15°c to 40 °c
Altitude ≤1000m
Rated voltage 220V, 230V, 240V, 110V, 115V, 120V, etc
Rated frequency 50HZ, 60HZ, 50HZ/60HZ
Duty Continuous(S1)
Insulation class Class B, Class F
Protection class IP44, IP54, IP55
Cooling method IC0141





Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
